Output 150V-17000W High Reliability DC Adjustable Switching Power Supply Single Output Three-phase Input Industry Use High
Output 150V-17000W High Reliability DC Adjustable Switching Power Supply Single Output Three-phase Input Industry Use High
Output 150V-17000W High Reliability DC Adjustable Switching Power Supply Single Output Three-phase Input Industry Use High
Output 150V-17000W High Reliability DC Adjustable Switching Power Supply Single Output Three-phase Input Industry Use High
Output 150V-17000W High Reliability DC Adjustable Switching Power Supply Single Output Three-phase Input Industry Use High
1 / 5
Output 150V-17000W High Reliability DC Adjustable Switching Power Supply Single Output Three-phase Input Industry Use High
Output 150V-17000W High Reliability DC Adjustable Switching Power Supply Single Output Three-phase Input Industry Use High
Output 150V-17000W High Reliability DC Adjustable Switching Power Supply Single Output Three-phase Input Industry Use High
Output 150V-17000W High Reliability DC Adjustable Switching Power Supply Single Output Three-phase Input Industry Use High
Output 150V-17000W High Reliability DC Adjustable Switching Power Supply Single Output Three-phase Input Industry Use High

Output 150V-17000W High Reliability DC Adjustable Switching Power Supply Single Output Three-phase Input Industry Use High

Send Inquiry

Product Description

DC Regulated Power Supply Banner

We are situated within a prominent core city cluster in the Yangtze River Delta region, positioned closely to major international shipping routes for convenient and streamlined product exports. Operating out of a professional production facility exceeding 10,000 square meters, we have dedicated over 15 years to specializing in high-performance, high-power regulated power supplies. Our commitment to excellence is reflected in our robust manufacturing capabilities and dedicated after-sales support systems.

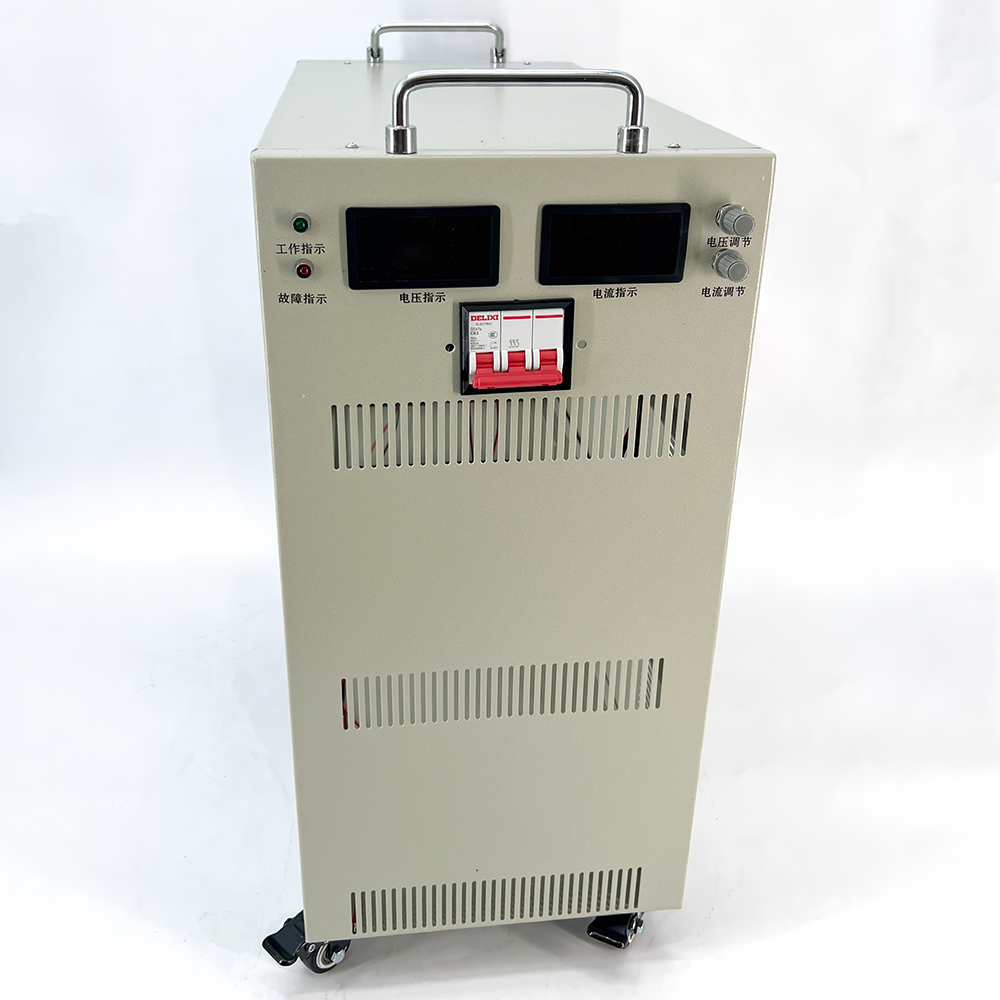

DC Switching Power Supply Main View

Product Specifications

  • ⚡
    Product Name: DC Switching Power Supply
  • ⚙️
    Application: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, and various DC applications.
  • 🛡️
    Protection: Equipped with overcurrent, overvoltage, overheat, and short circuit protection mechanisms.
  • 💡
    Features: Delivers high stability and superior reliability under continuous loads.
  • 📦
    Warranty: 1 year.
  • ⚖️
    Weight: Approximately 25KG.

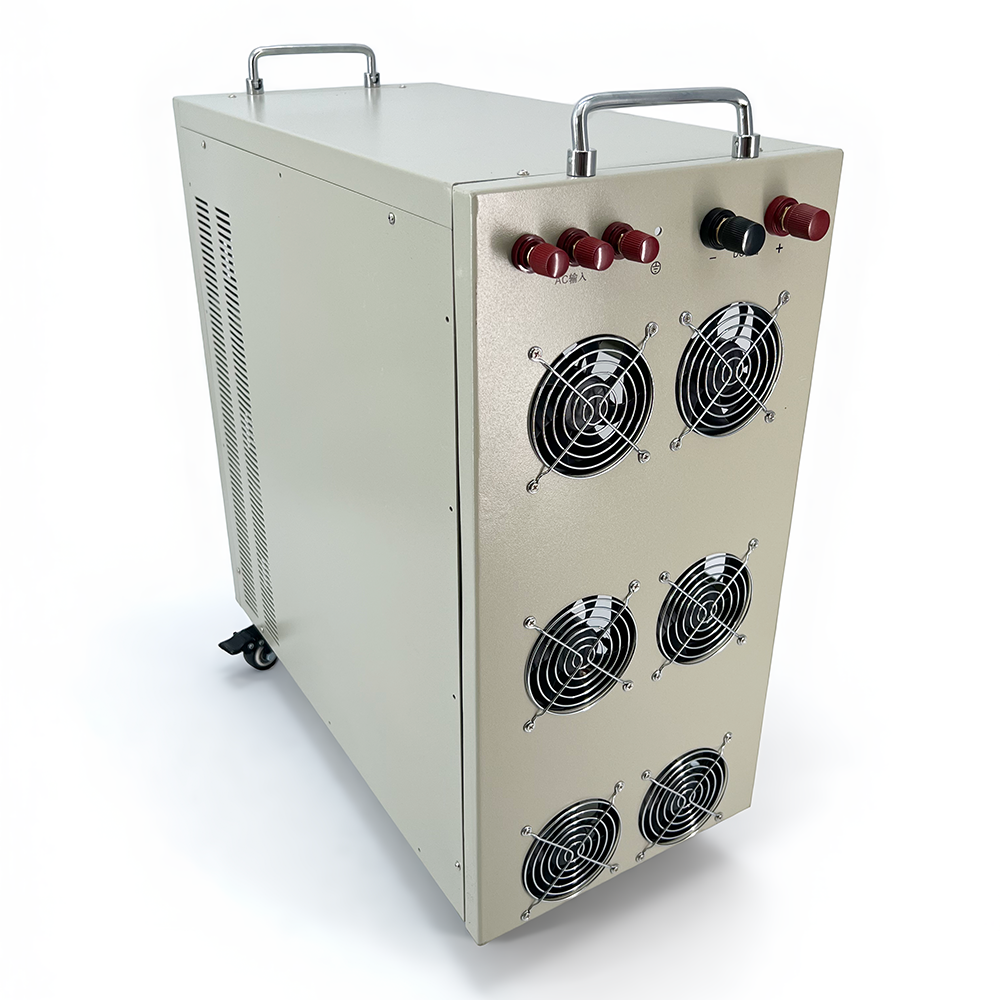

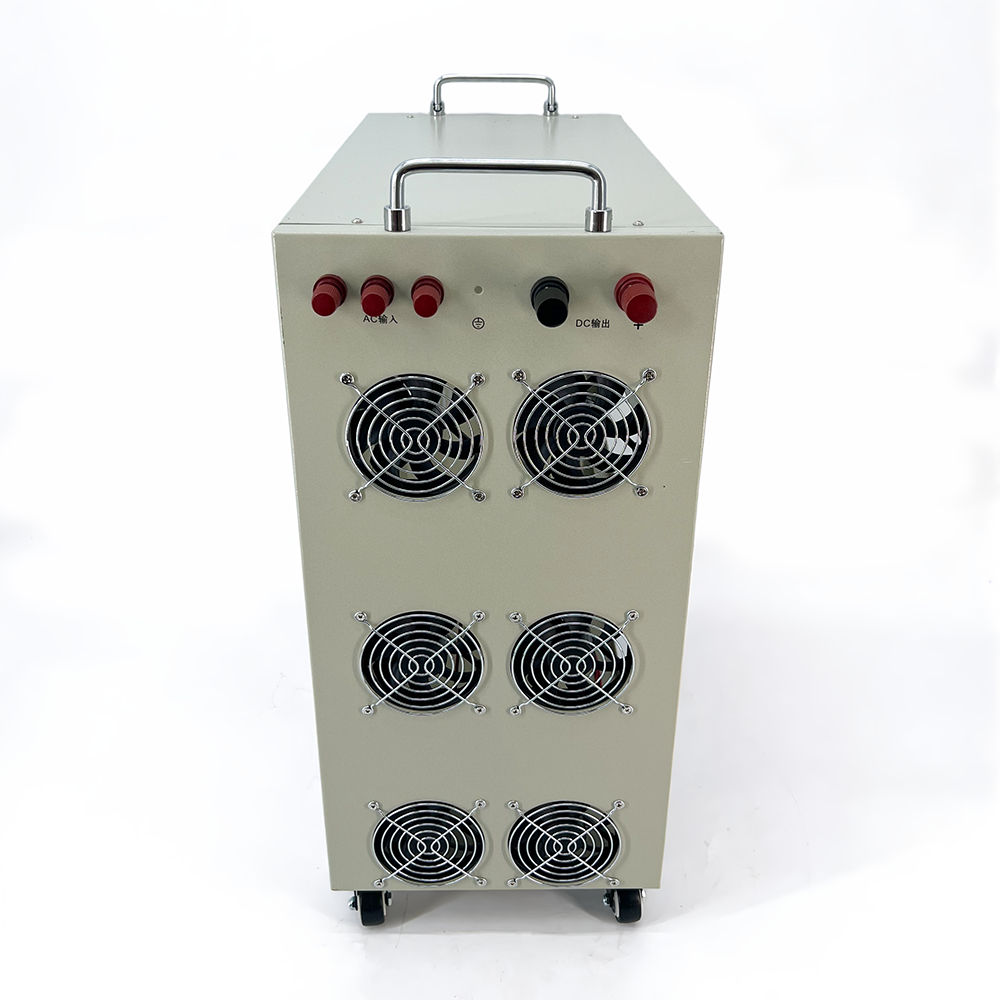

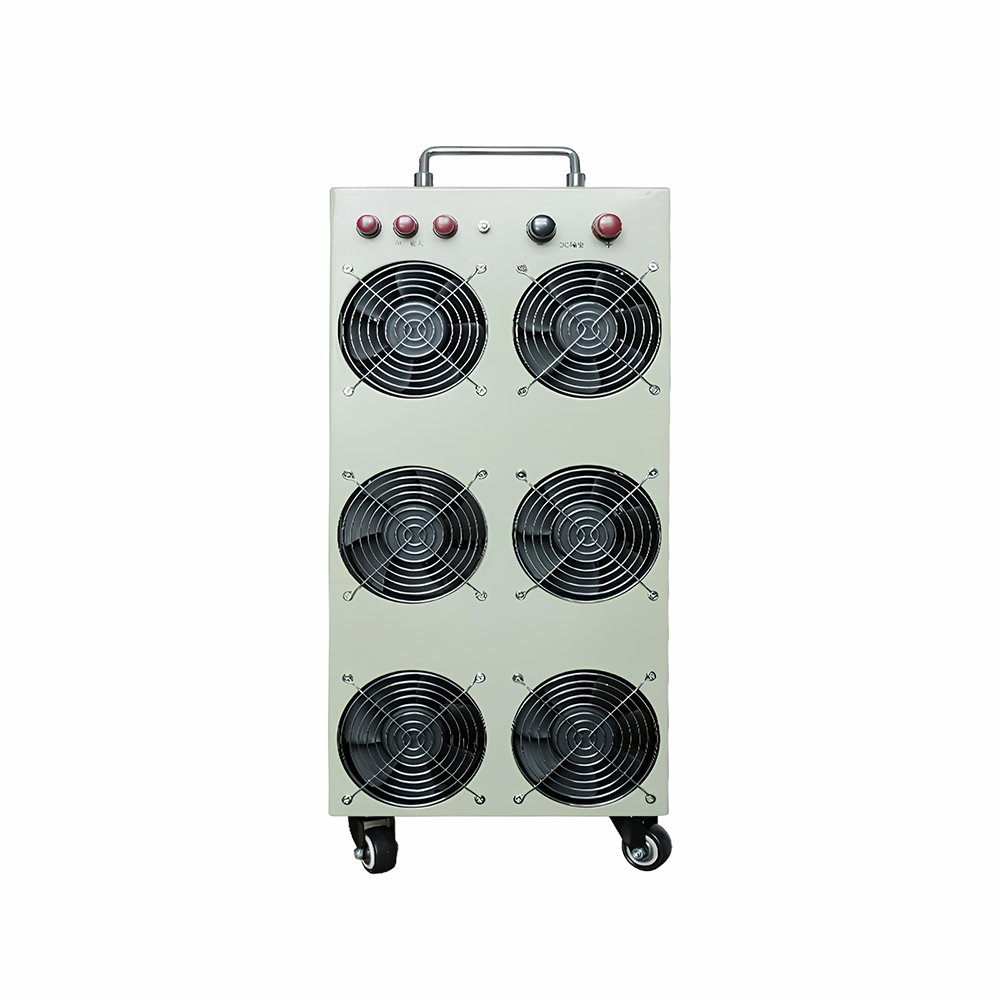

DC Power Supply Interface Details Power Supply Internal Architecture Rear Panel Connection Terminals
Power Supply Component Assembly Safety Features Diagram
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 17000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Three-phase 380V±10% 50-60HZ Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 40 KG

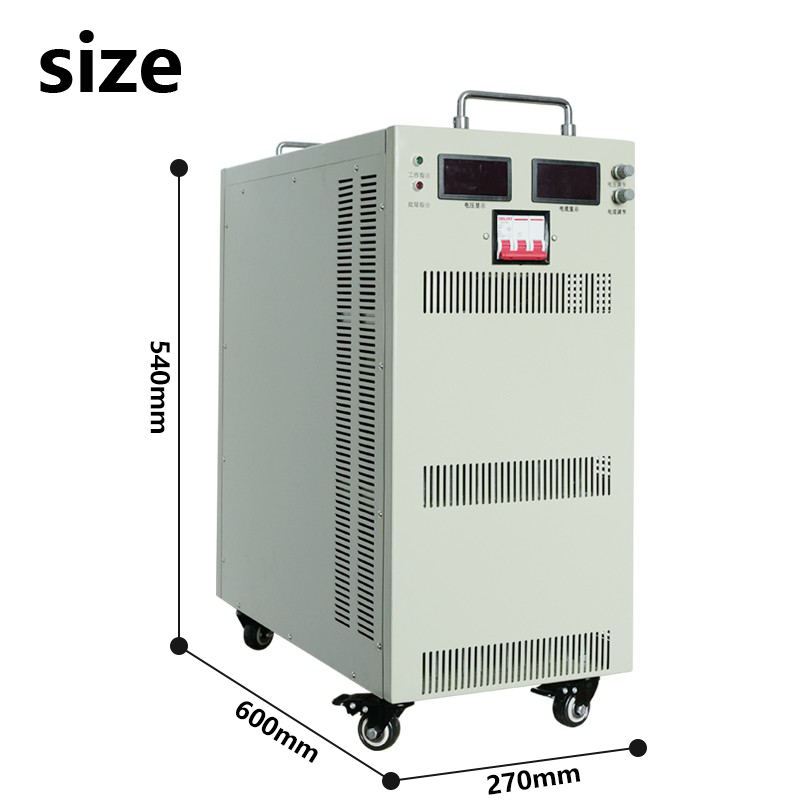

Efficiency ≥88-89% Carton Dimensions 770x400x740mm
Output Voltage Accuracy ±1% - -
Testing Facility Production Line Quality Inspection Process Power Supply Burn-in Room Warehouse Storage Final Product Inspection

Product Instructions

1
Prior to powering on, inspect the unit for any transit-related damage. Ensure all screws are securely tightened, look for cosmetic abnormalities, check that power cords and terminals are firmly connected, and verify the unit has not been exposed to damp environments. Resolve any identified issues before operations.
2
The integrated power switch manages the unit's auxiliary internal circuitry. For optimal safety, configure an external air switch at the main power input terminal. Properly terminate the ground wire and input power wires based on the rear panel labels. Always confirm that input line voltage conforms to standard operational specifications.
3
The cooling fan relies on dynamic temperature control. It activates automatically when internal temperatures surpass preset operational limits. Variable fan speeds adjusted to different load conditions are normal. Keep the air inlets and exhaust ports entirely free of obstructions.
4
If internal operating temperatures exceed safety thresholds, the device automatically triggers an overheat shutdown safety routine to protect core components. It will restart normal operation once the internal temperature cools to a safe range.
5
Maintain an operational environment free of excessive dust, acidic vapors, corrosive gases, or extreme physical vibrations. Avoid placing the unit in areas susceptible to direct rain or intense solar exposure.
6
Periodically clean dust buildup from the unit using clean, dry compressed air. This maintenance extends structural reliability. Do not attempt to open the outer casing or handle high-voltage internal modules.
7
Store idle power equipment in dry, well-ventilated indoor spaces. For units stored longer than six months, power on the system and run it without load for at least 30 minutes before deployment.
8
Warning: Only establish connections to load equipment after the initial power-on test runs successfully without warnings or errors.
9
If abnormalities occur during startup, instantly shut down the power supply, isolate the input feed, and inspect external terminal screws. Do not modify or disassemble internal components yourself due to dangerous high voltage. Contact certified technical support immediately for professional assistance.

Frequently Asked Questions

Q: Does this unit feature overvoltage, overcurrent, overheating, and short-circuit protection?
A: Yes. The power supply features integrated active protection systems for all these scenarios to ensure safe operation.
Q: Is reverse polarity protection available?
A: Yes, reverse protection can be added as an optional customization requirement.
Q: Can this system run at full power continuously?
A: No, for prolonged service life and safety margins, we recommend operating the power supply below 80% of its maximum rated load capacity.
Q: How is the output voltage and current adjusted?
A: The unit features dual analog control knobs, allowing you to easily adjust voltage and current settings independently.
Q: Is the high-power output circuit isolated?
A: Yes, this power supply uses a fully isolated design to secure downstream electrical equipment and personnel safety.
Q: What is the regulation range of the output voltage?
A: The voltage regulation starts from 1V up to the maximum rated voltage limit of the model.
