Home > 600W-1000W AC/DC power supply > Output 110V-800W High-Precision Linear Regulated Power Supply 12V-500V Optional Voltage
Output 110V-800W High-Precision Linear Regulated Power Supply 12V-500V Optional Voltage
Output 110V-800W High-Precision Linear Regulated Power Supply 12V-500V Optional Voltage
Output 110V-800W High-Precision Linear Regulated Power Supply 12V-500V Optional Voltage
Output 110V-800W High-Precision Linear Regulated Power Supply 12V-500V Optional Voltage
Output 110V-800W High-Precision Linear Regulated Power Supply 12V-500V Optional Voltage
1 / 5
Output 110V-800W High-Precision Linear Regulated Power Supply 12V-500V Optional Voltage
Output 110V-800W High-Precision Linear Regulated Power Supply 12V-500V Optional Voltage
Output 110V-800W High-Precision Linear Regulated Power Supply 12V-500V Optional Voltage
Output 110V-800W High-Precision Linear Regulated Power Supply 12V-500V Optional Voltage
Output 110V-800W High-Precision Linear Regulated Power Supply 12V-500V Optional Voltage

Output 110V-800W High-Precision Linear Regulated Power Supply 12V-500V Optional Voltage

Send Inquiry

Product Description

DC Switching Power Supply Unit
DC Switching Power Supply Detail

DC Switching Power Supply

  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection.
  • Features: High stability and reliability.
  • Warranty: 1 year.
  • Weight: Approximately 2KG.

Product Display

DC Power Supply Front View
DC Power Supply Side View
DC Power Supply Back View
DC Power Supply Screen Display
DC Power Supply Structure

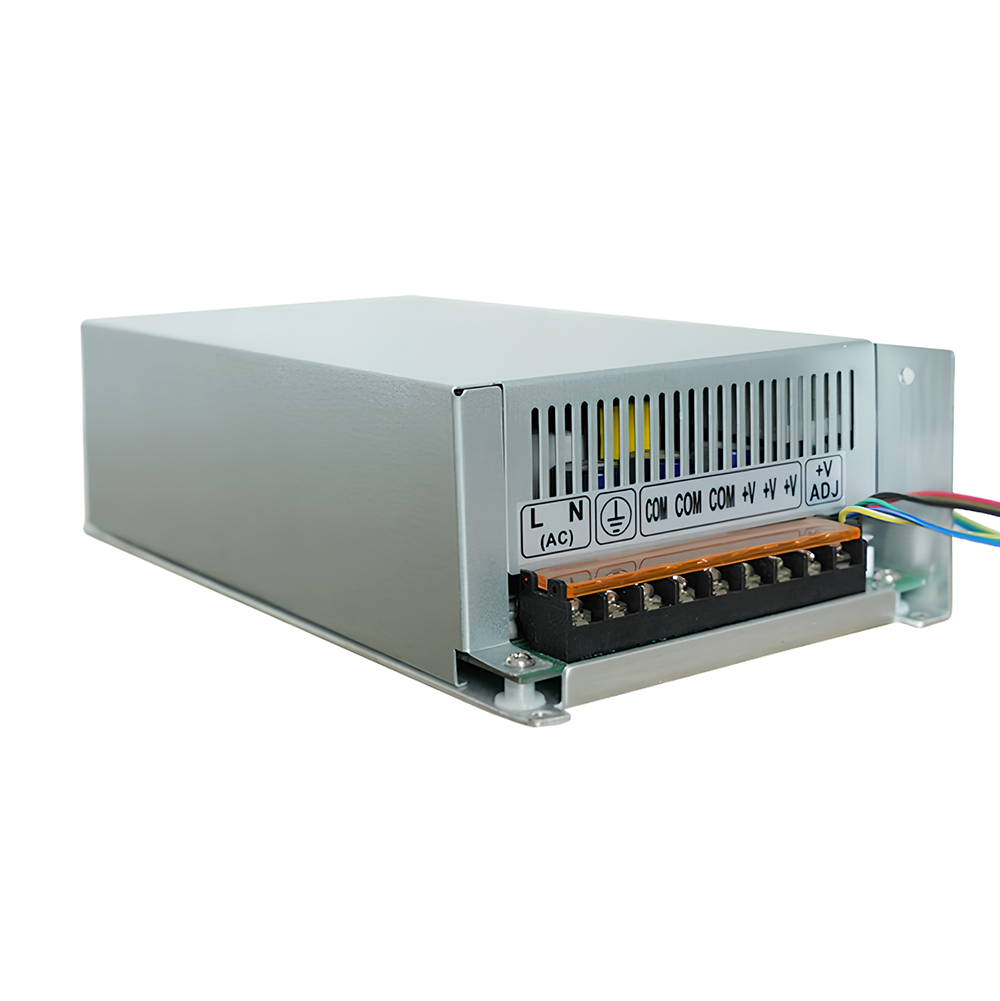

DC Power Supply Terminal Details

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 800W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase 220V±10% (50-60Hz) / 110V±10% (50-60Hz) Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection

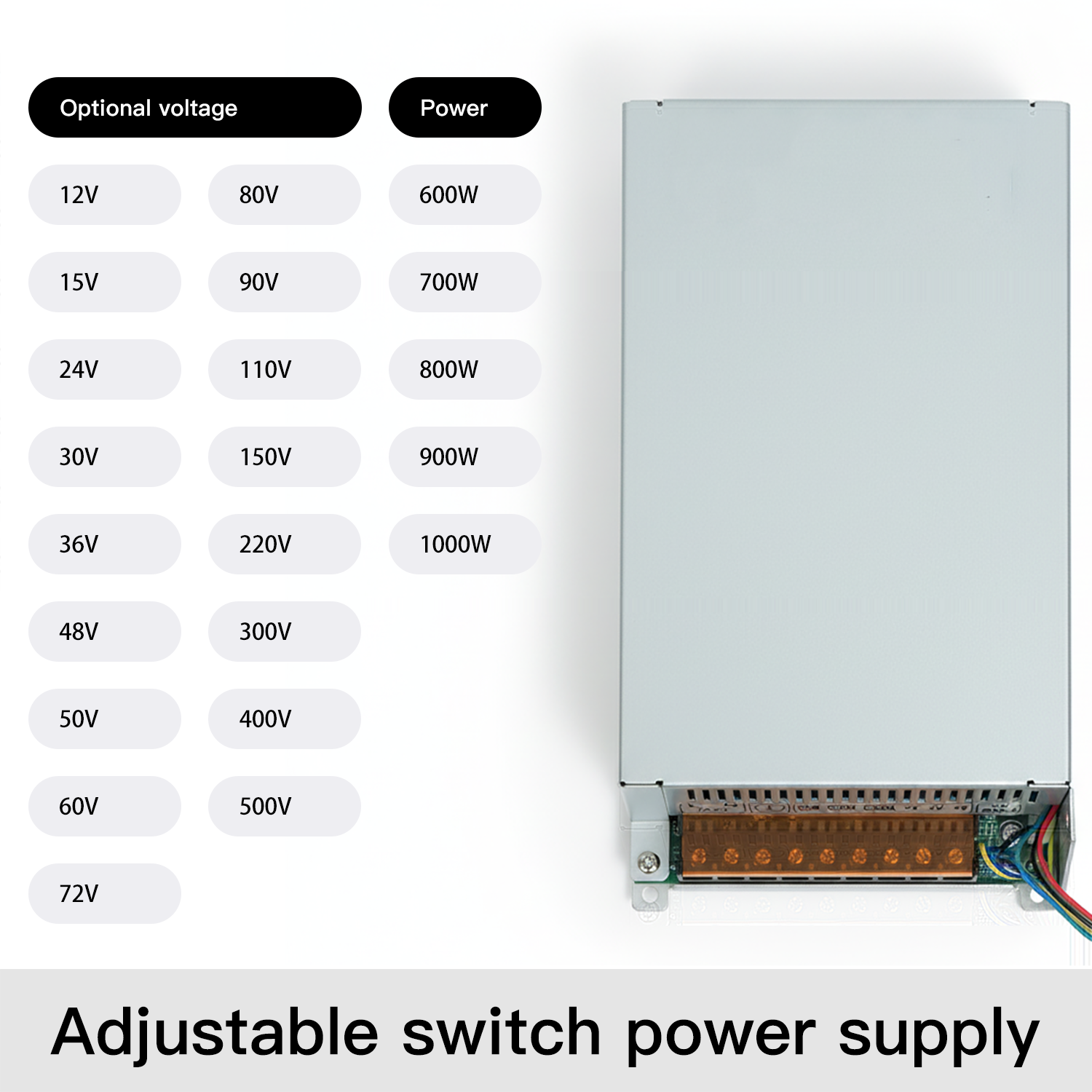

Output Voltage 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 2KG

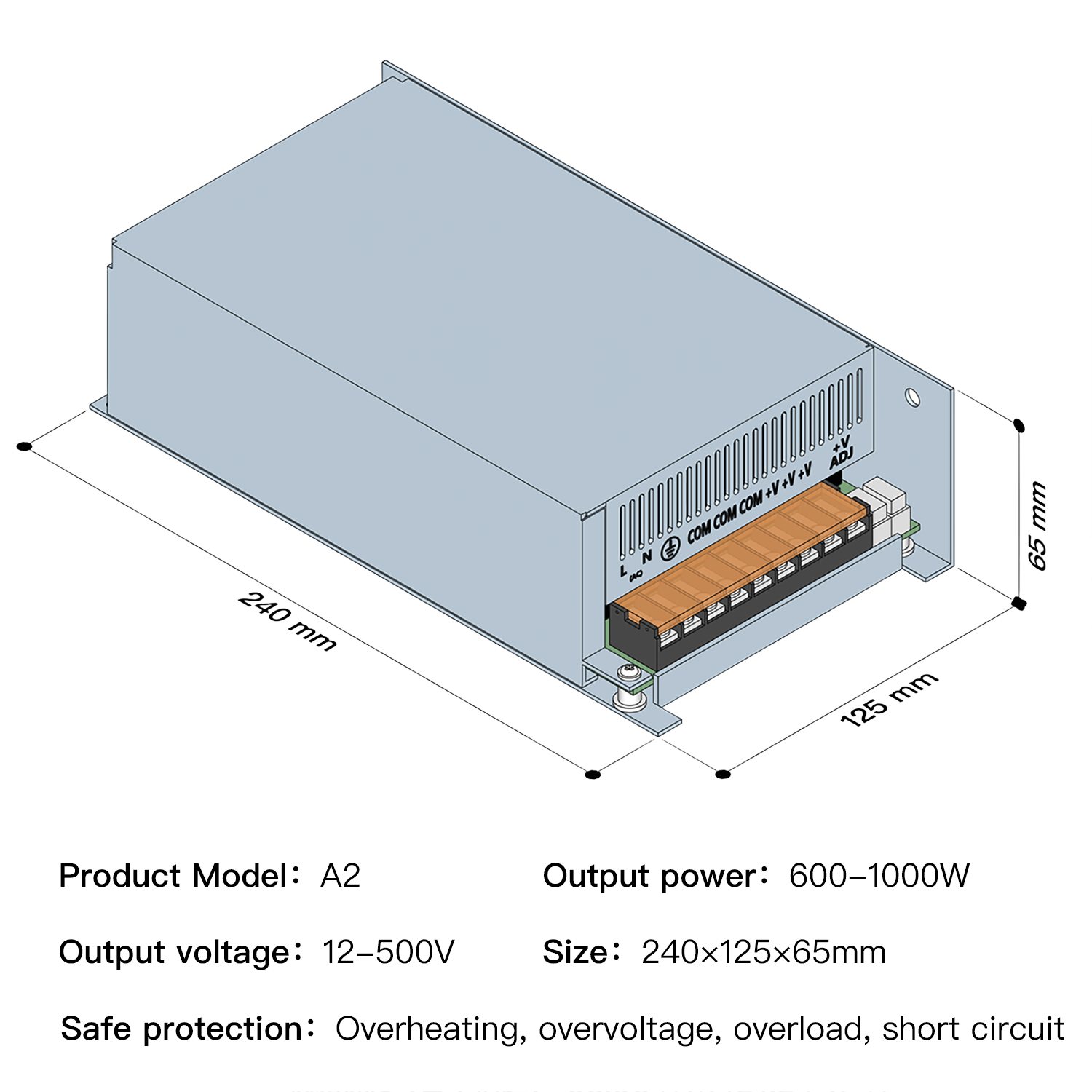

Efficiency >88-89% Carton Dimensions 260*135*70 mm
Output Voltage Accuracy ±1% - -

Internal & Exterior Details

Internal Component View 1
Internal Component View 2
Circuit Board Detail
Heat Dissipation Structure
Final Product Inspection

Product Instructions

  • 1 Before powering on, check the stored and transported switch power supply. Before powering on, the damage during transportation should be checked, such as whether the screws are loose, whether the appearance is abnormal, whether the power cord and terminal are shaken off, and whether they are damp. If the above phenomenon occurs, it should be dealt with in a timely manner.
  • 2 The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel to confirm that they are connected correctly. Pay attention to whether the voltage of the input power supply connected is consistent with the voltage indicated in the manual.
  • 3 The cooling fan is temperature controlled. When the temperature inside the machine exceeds the starting temperature control point of the fan, the fan can start. The fan speed varies with the output voltage and current, which is a normal situation. When working, please make sure not to block the inlet and outlet of the fan.
  • 4 When the temperature inside the machine reaches the threshold for overheating shutdown, the machine will automatically stop working to ensure that it is not damaged. When the temperature drops slightly, it will automatically start to resume work.
  • 5 When using power equipment, the dust, acid, corrosive gases or substances in the air should not exceed normal levels, and there should be no severe vibration, bumps, rain, and direct sunlight should be avoided as much as possible.
  • 6 It is best to regularly carry out dust removal work, which can greatly improve the service life and reliability of power equipment (dry compressed air can be used for dust removal, but there is high pressure inside. Do not open the casing and be careful not to damage internal components).
  • 7 When the power equipment is idle for a long time, it should be stored in a dry and ventilated room. If the storage time exceeds 6 months, the power supply equipment should be powered on and operated for more than half an hour.
  • 8 Warning: Only connect to the powered load equipment when the power on test is normal and error free.
  • 9 Handling of malfunctions and problems. If abnormal operation is found after turning on the machine, the power switch of the stabilized power supply should be cut off, and the internal and external connections of the machine should be carefully checked for correctness, and the connecting screws should be checked for looseness. Are all switches and knobs in the correct position. If there are problems that users find difficult to handle, do not unscrew the screws and remove the casing without authorization. Due to the presence of high voltage inside the machine, do not repair it yourself without professional knowledge and equipment to avoid electric shock accidents.

Frequently Asked Questions

Q Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply comes fully equipped with all these protection mechanisms.
Q Is there reverse polarity protection?
Yes, reverse polarity protection can be custom-added as an optional upgrade.
Q Can the power supply be used at full power for a long period?
No, it is recommended to run the power supply below 80% capacity for continuous, long-term operations to ensure stability.
Q Is it easy to adjust the output voltage and current?
Yes, adjustments are highly convenient and precise using the integrated dual knobs.
Q Is this high-power power supply isolated?
Yes, our units feature a fully isolated design for enhanced safety.
Q What is the voltage regulation starting point?
The voltage regulation range starts from 1V.
