High-Stability 500W AC-DC Power Supply Module with Single Output Regulated Current 1 Year Warranty
High-Stability 500W AC-DC Power Supply Module with Single Output Regulated Current 1 Year Warranty
High-Stability 500W AC-DC Power Supply Module with Single Output Regulated Current 1 Year Warranty
High-Stability 500W AC-DC Power Supply Module with Single Output Regulated Current 1 Year Warranty
High-Stability 500W AC-DC Power Supply Module with Single Output Regulated Current 1 Year Warranty
1 / 5
High-Stability 500W AC-DC Power Supply Module with Single Output Regulated Current 1 Year Warranty
High-Stability 500W AC-DC Power Supply Module with Single Output Regulated Current 1 Year Warranty
High-Stability 500W AC-DC Power Supply Module with Single Output Regulated Current 1 Year Warranty
High-Stability 500W AC-DC Power Supply Module with Single Output Regulated Current 1 Year Warranty
High-Stability 500W AC-DC Power Supply Module with Single Output Regulated Current 1 Year Warranty

High-Stability 500W AC-DC Power Supply Module with Single Output Regulated Current 1 Year Warranty

Send Inquiry

Product Description

DC Regulated Power Supply Banner
DC Switching Power Supply Details
DC Switching Power Supply
  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • Features: High stability and reliability
  • Warranty: 1 year
  • Weight: Approximately 1.5KG

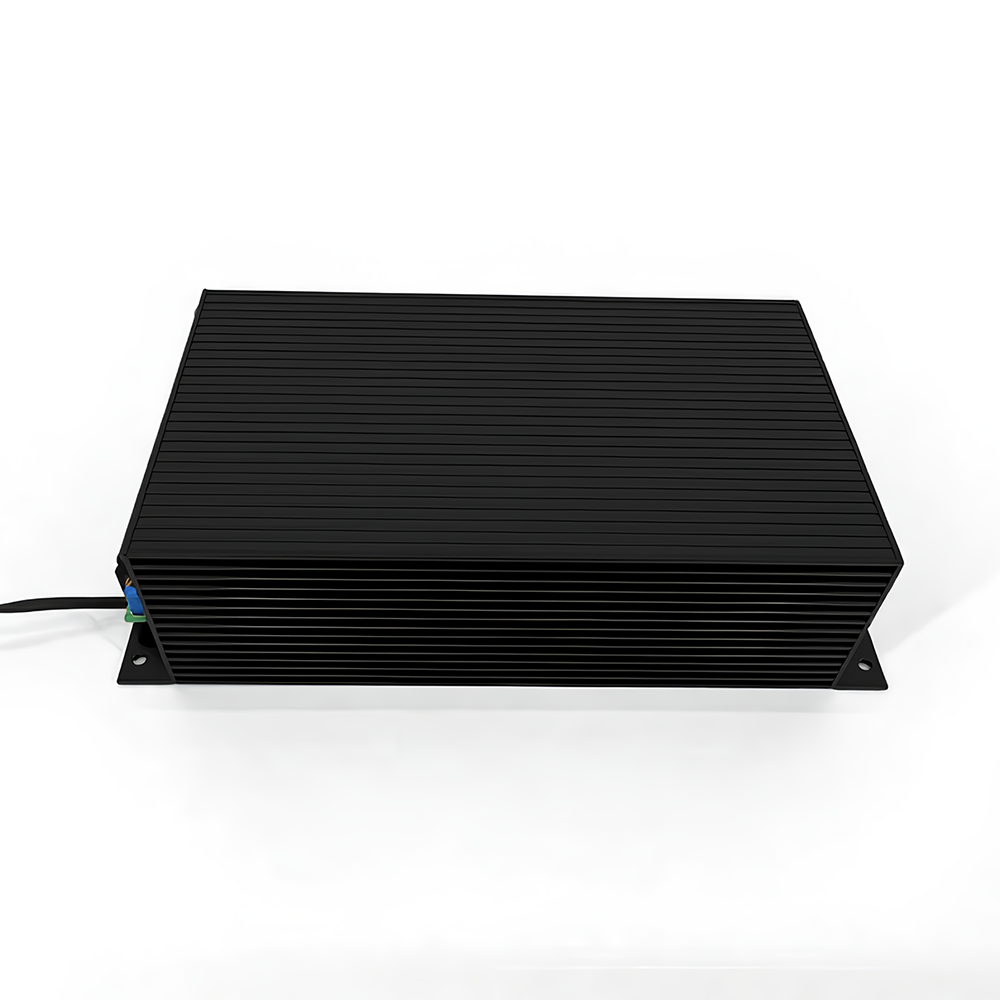

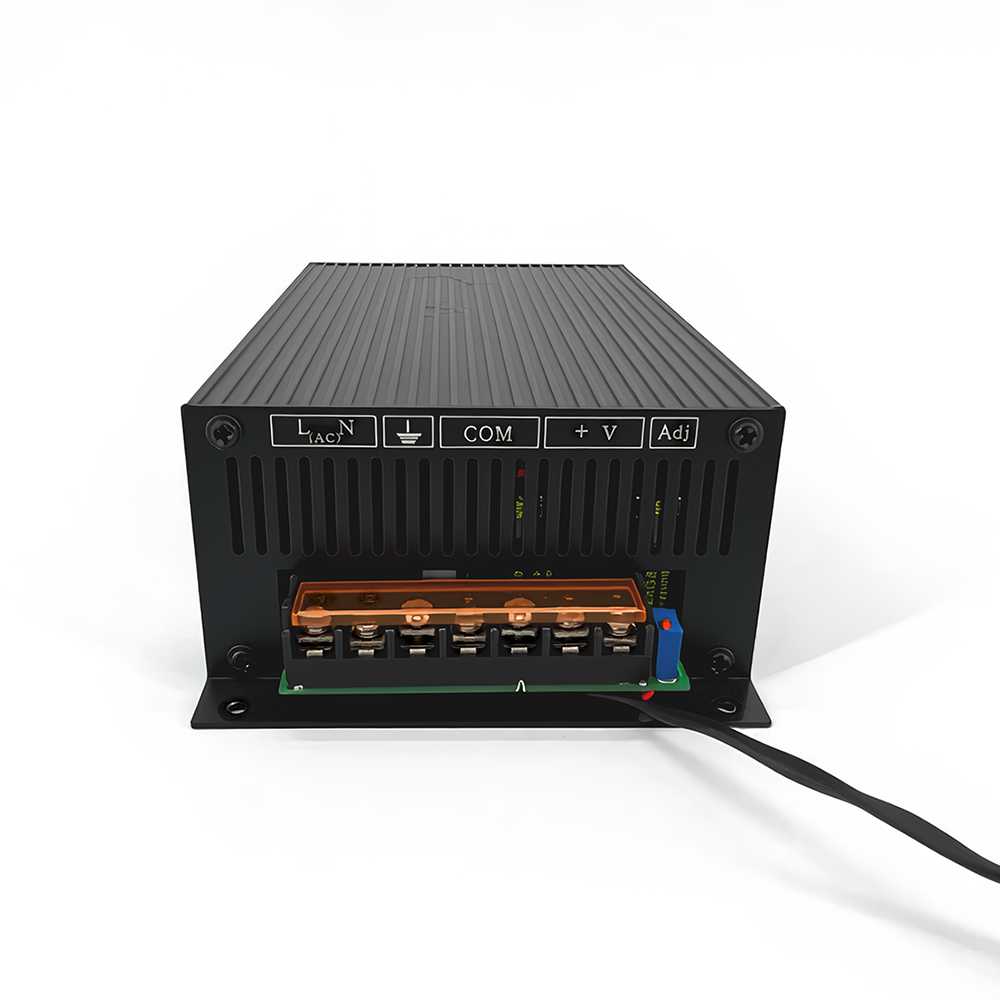

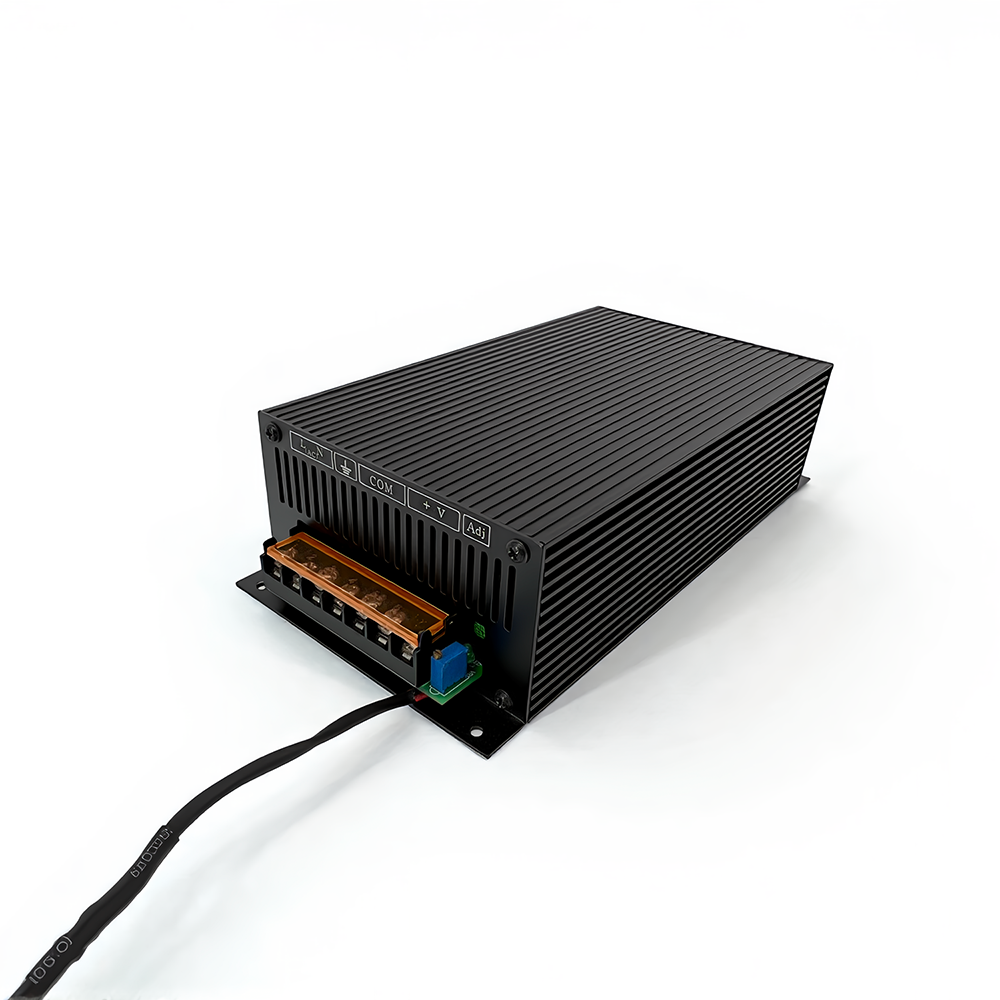

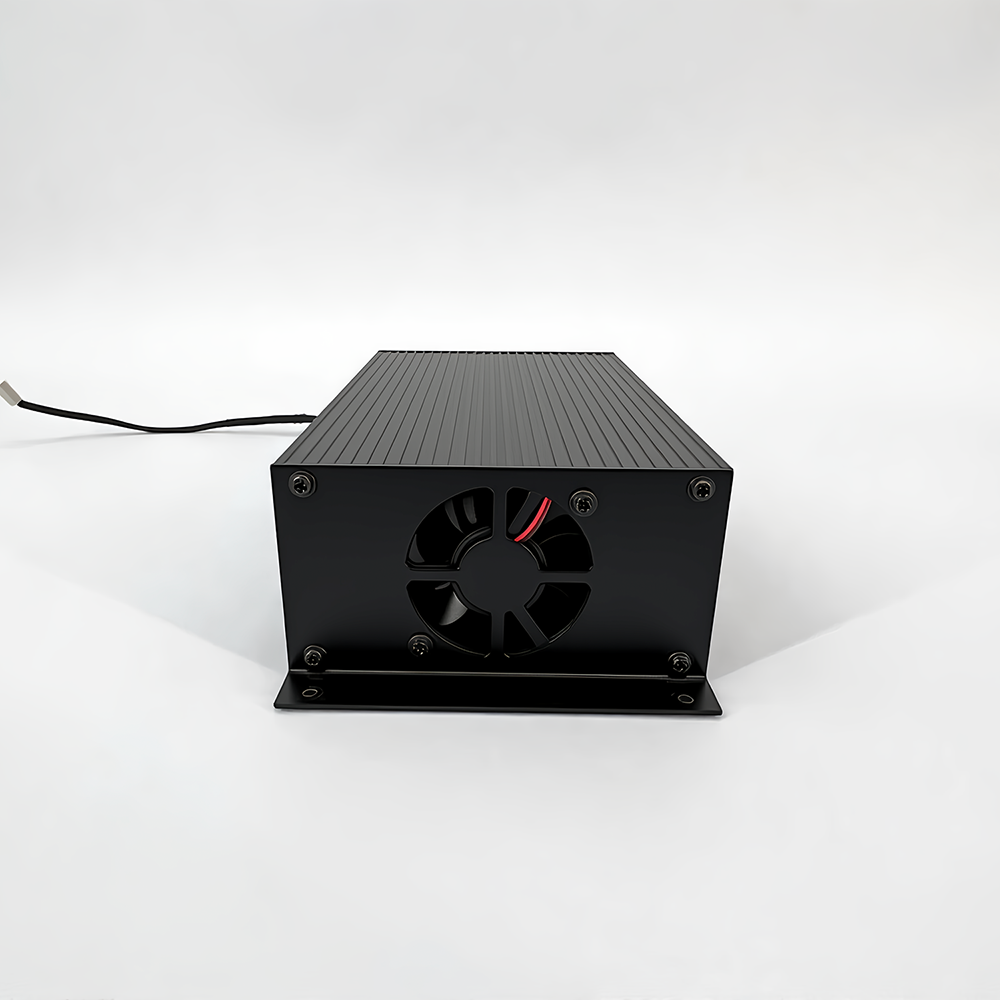

Power Supply Overview Power Supply Back View Power Supply Interior Design Power Supply Control Panel

📊 Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 500W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase 220V±10% 50-60Hz / 110V±10% 50-60Hz Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 1.5 kg
Efficiency ≥88-89% Carton Dimensions 255 × 125 × 65 mm
Output Voltage Accuracy ±1% - -
Application Scenario 1 Application Scenario 2 Application Scenario 3 Application Scenario 4 Application Scenario 5

📋 Product Instructions

  1. Before powering on, check the stored and transported switch power supply. Check for any damage during transportation, such as loose screws, abnormal appearance, whether the power cord and terminal are shaken off, or if they are damp. If any of these issues occur, they should be addressed promptly.
  2. The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel to confirm correct connection. Ensure that the input power voltage matches the voltage indicated in the manual.
  3. The cooling fan is temperature controlled. When the internal temperature exceeds the fan's start threshold, it will begin operating. The fan speed varies based on the output voltage and current, which is normal. Please ensure that the fan's inlet and outlet are not blocked during operation.
  4. When the internal temperature reaches the threshold for overheating shutdown, the machine will stop automatically to prevent damage. It will resume operation automatically once the temperature drops slightly.
  5. When using the equipment, ensure that dust, acid, corrosive gases, or substances in the air do not exceed normal levels. Avoid severe vibrations, bumps, rain, and direct sunlight.
  6. Regular dust removal is recommended to significantly improve the service life and reliability of the equipment. Dry compressed air can be used for cleaning. Due to the high internal voltage, do not open the casing or damage internal components.
  7. If the equipment remains idle for a long period, store it in a dry and ventilated room. If stored for more than 6 months, it should be powered on and operated for at least half an hour.
  8. Warning: Only connect to the powered load equipment when the power-on test is normal and error-free.
  9. Handling of Malfunctions: If abnormal operation occurs after turning on the machine, immediately cut off the power switch. Check the internal and external connections for correctness and verify that screws are tight. Ensure all switches and knobs are in the correct positions. Do not unscrew or remove the casing without authorization. Due to high internal voltages, do not attempt self-repair without professional knowledge and equipment. Please contact professional support promptly to resolve the issue.
❓ Frequently Asked Questions (FAQ)
Q Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply is equipped with full protective systems covering overvoltage, overcurrent, overheating, and short circuits.
Q Is there reverse protection?
Reverse protection can be added as a custom option upon request.
Q Can it be used at full power for a long time?
No, it is recommended to use the power supply with excess capacity. Operating below 80% capacity is suitable for long-term usage.
Q Is it convenient to adjust the voltage and current?
Yes, the voltage and current can be easily adjusted using the built-in dual knobs.
Q Is the high-power power supply isolated?
Yes, this is a fully isolated power supply design.
Q What is the voltage regulation range?
The voltage regulation range starts from 1V.
