80V-500W AC-DC Regulated Power Supply Single Output High Stability Safety 12-400V DC Input 88-89% Efficiency Industry Use 1 Year

Product Name: DC Switching Power Supply

Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
Features: High stability and reliability
Warranty: 1 year
Weight: Approximately 1.5KG

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	500W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Single-phase 220V±10% 50-60HZ / 110V±10% 50-60HZ	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 1.5 kg

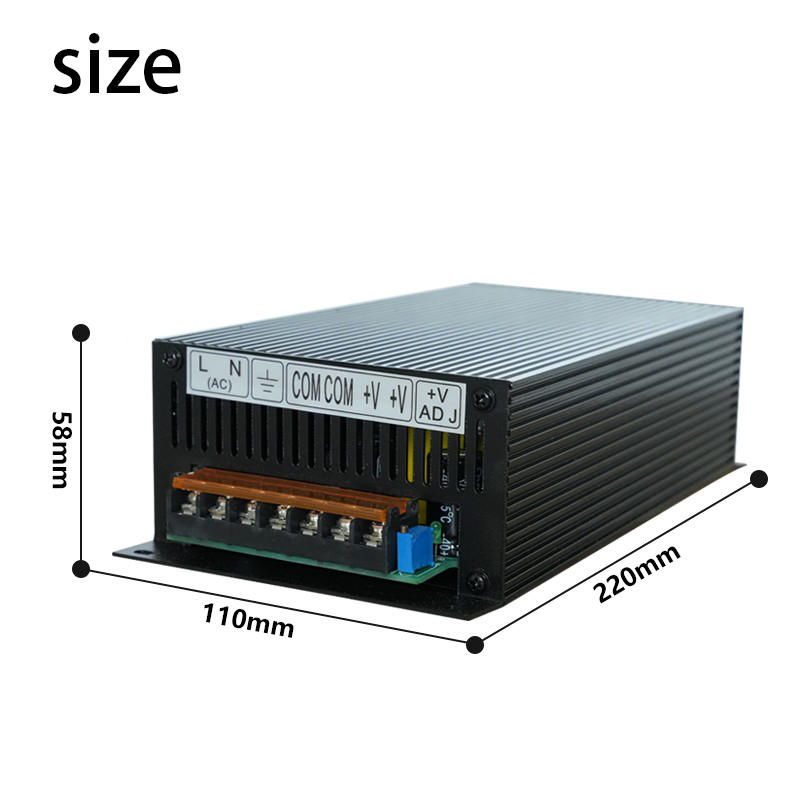

Efficiency	> 88-89%	Carton Dimensions	255×125×65 mm
Output Voltage Accuracy	±1%

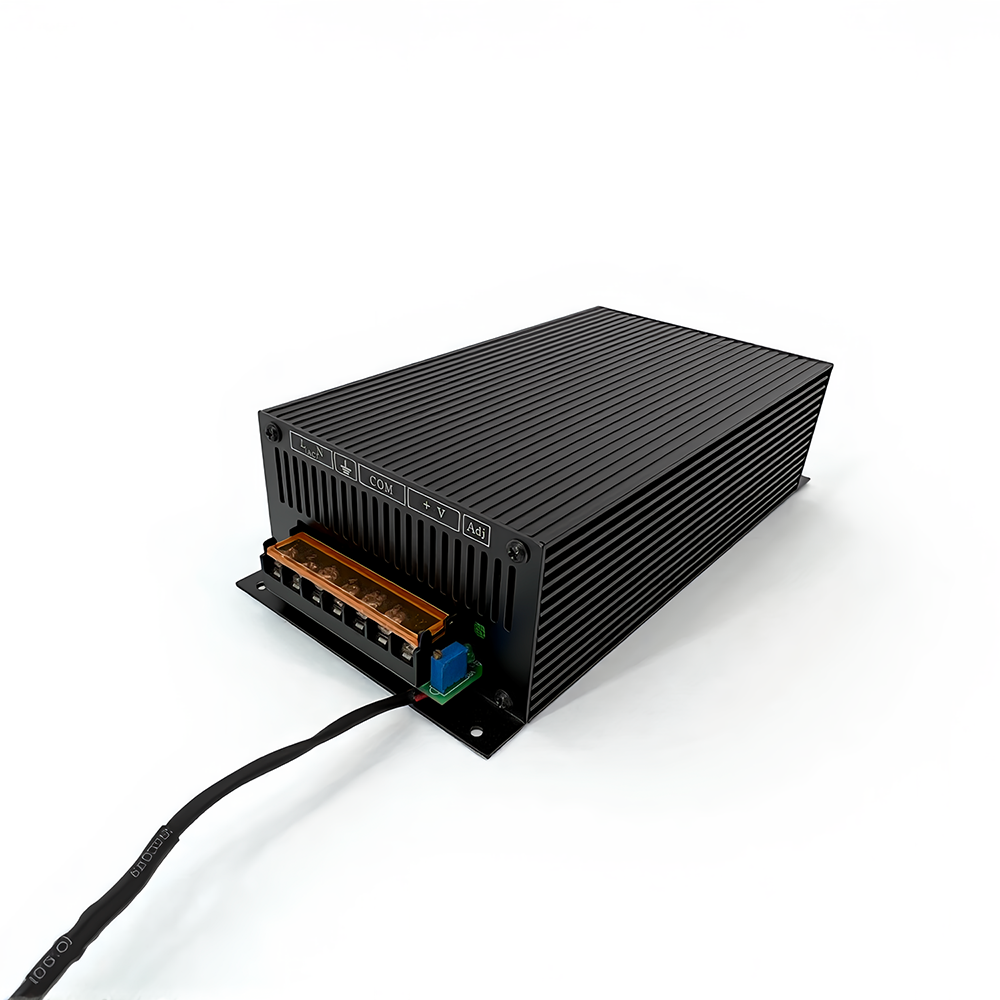

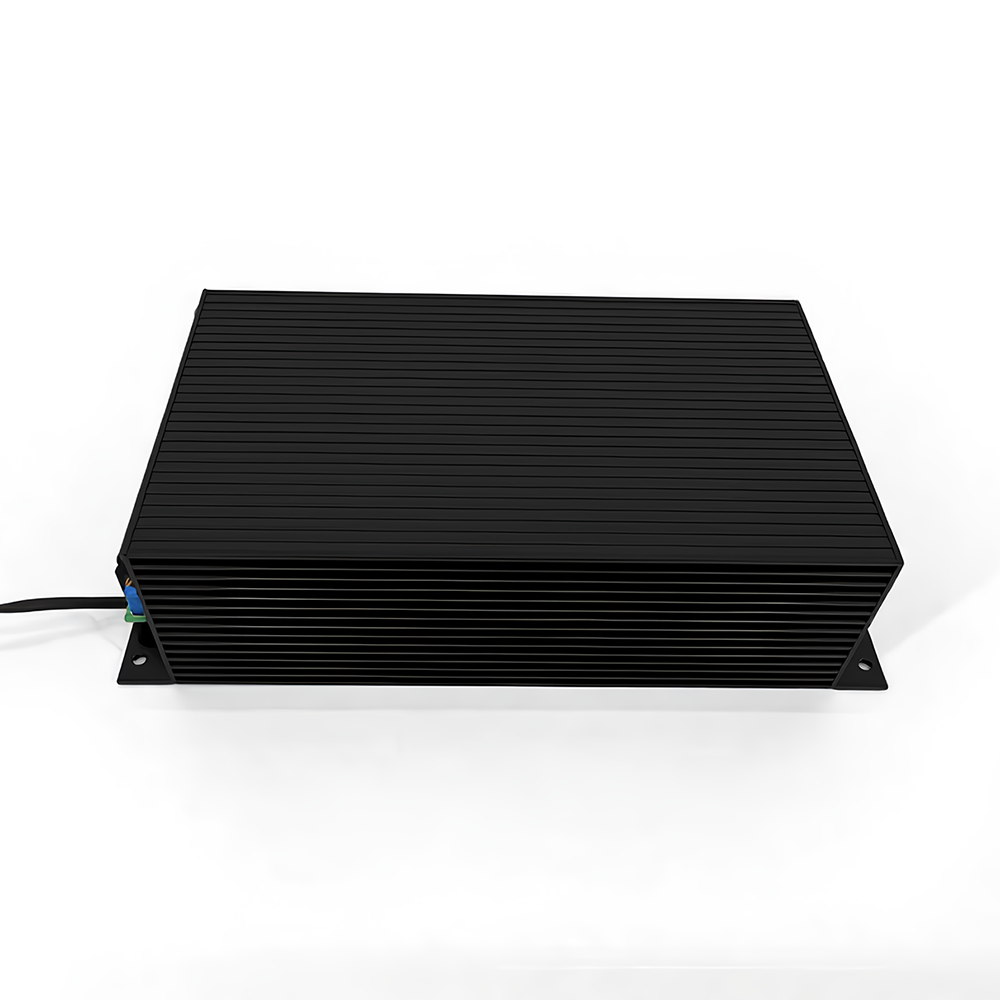

Product Gallery

Product Instructions

Before powering on, check the stored and transported switch power supply. Before powering on, the damage during transportation should be checked, such as whether the screws are loose, whether the appearance is abnormal, whether the power cord and terminal are shaken off, and whether they are damp. If the above phenomenon occurs, it should be dealt with in a timely manner.

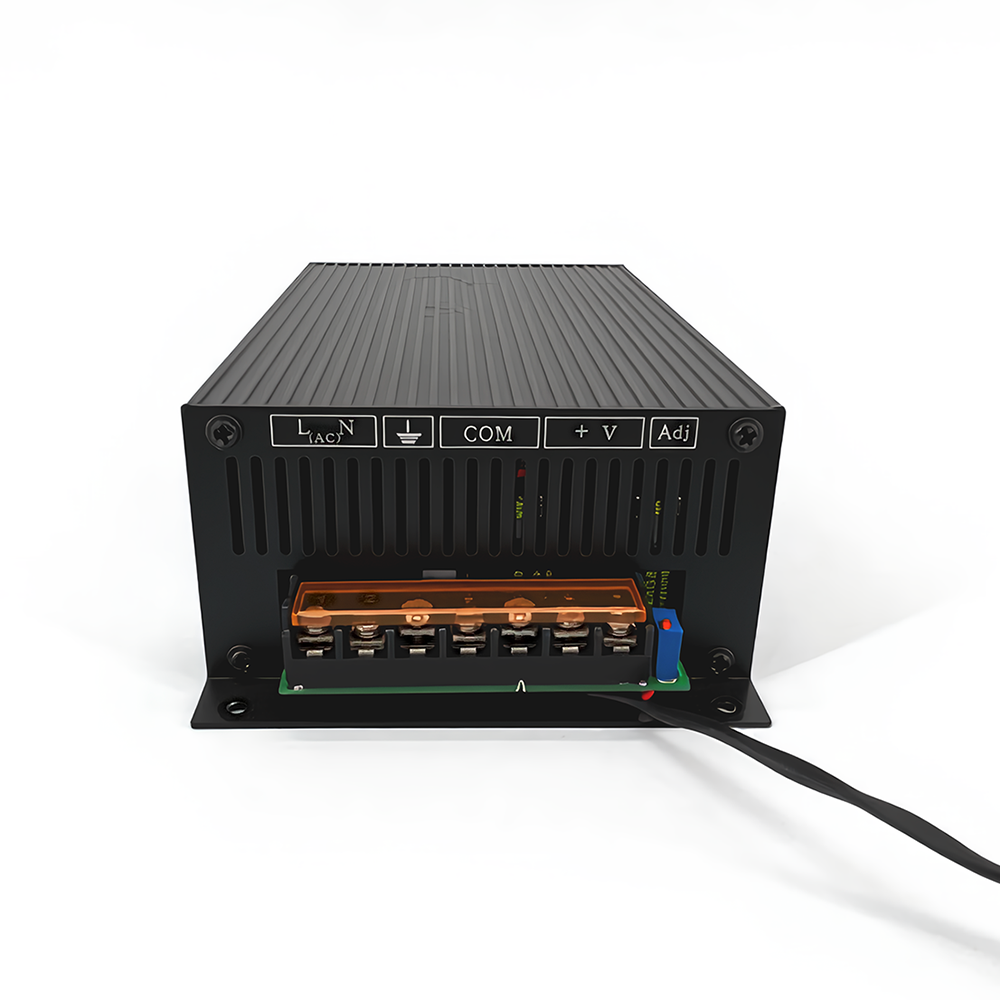

The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel to confirm that they are connected correctly. Pay attention to whether the voltage of the input power supply connected is consistent with the voltage indicated in the manual.

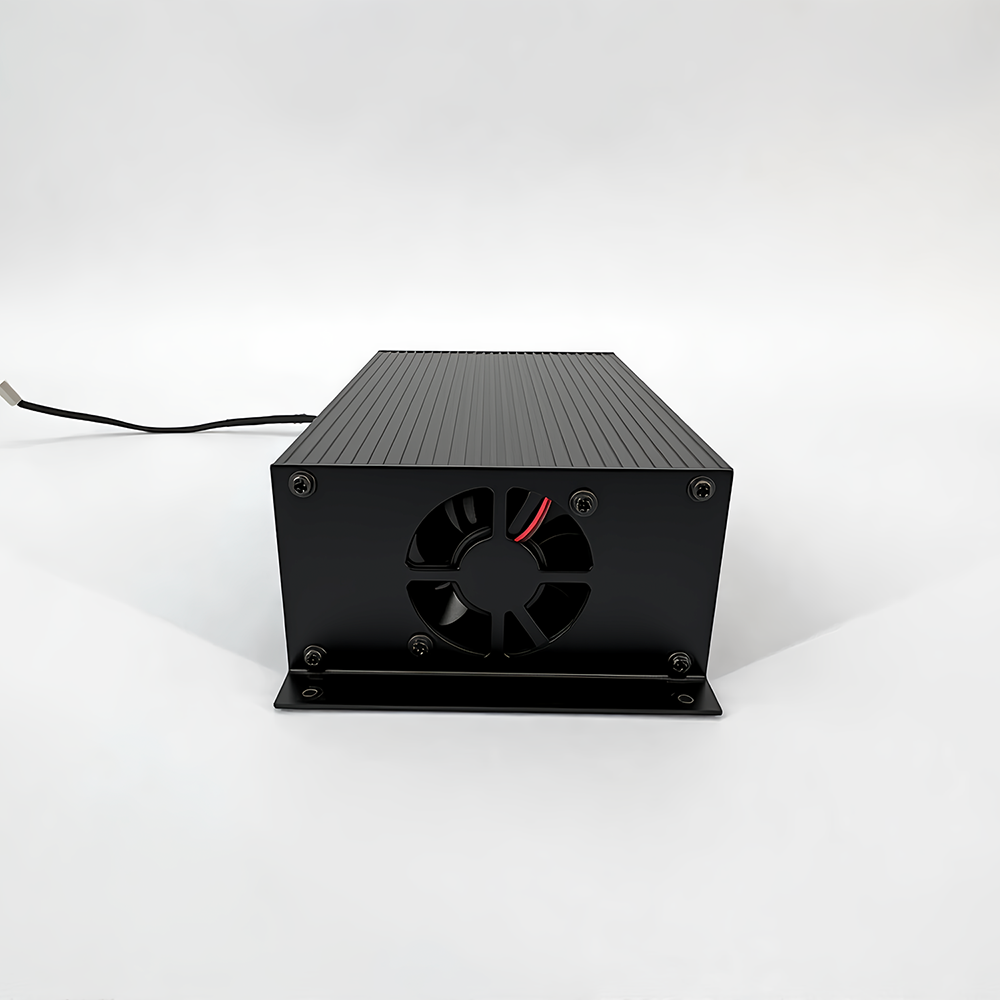

The cooling fan is temperature controlled. When the temperature inside the machine exceeds the starting temperature control point of the fan, the fan can start. The fan speed varies with the output voltage and current, which is a normal situation. When working, please make sure not to block the inlet and outlet of the fan.
When the temperature inside the machine reaches the threshold for overheating shutdown, the machine will automatically stop working to ensure that it is not damaged. When the temperature drops slightly, it will automatically start to resume work.
When using power equipment, the dust, acid, corrosive gases or substances in the air should not exceed normal levels, and there should be no severe vibration, bumps, rain, and direct sunlight should be avoided as much as possible.
It is best to regularly carry out dust removal work, which can greatly improve the service life and reliability of power equipment (dry compressed air can be used for dust removal, but there is high pressure inside. Do not open the casing and be careful not to damage internal components).
When the power equipment is idle for a long time, it should be stored in a dry and ventilated room. If the storage time exceeds 6 months, the power supply equipment should be powered on and operated for more than half an hour.
Warning: Only connect to the powered load equipment when the power on test is normal and error free.
Handling of malfunctions and problems. If abnormal operation is found after turning on the machine, the power switch of the stabilized power supply should be cut off, and the internal and external connections of the machine should be carefully checked for correctness, and the connecting screws should be checked for looseness. Are all switches and knobs in the correct position. If there are problems that users find difficult to handle, do not unscrew the screws and remove the casing without authorization. Due to the presence of high voltage inside the machine, do not repair it yourself without professional knowledge and equipment to avoid electric shock accidents. Please contact the technical support team promptly to resolve the issue.

Frequently Asked Questions

Is there overvoltage, overcurrent, overheating, or short circuit protection?

Yes, all of these safety protection functions are built-in.

Is there reverse protection?

Adding money can be done.

Can it be used at full power for a long time?

No, the power supply needs to be used with excess capacity. Power below 80% can be used for a long time.

Is it convenient to adjust voltage and current?

Convenient, voltage and current can be adjusted with dual knobs.

Is the high-power power supply isolated?

Yes, this is a fully isolated power supply.

What is the voltage regulation range & power sufficiency?

The voltage regulation range starts from 1V, and the power supply has sufficient power.
