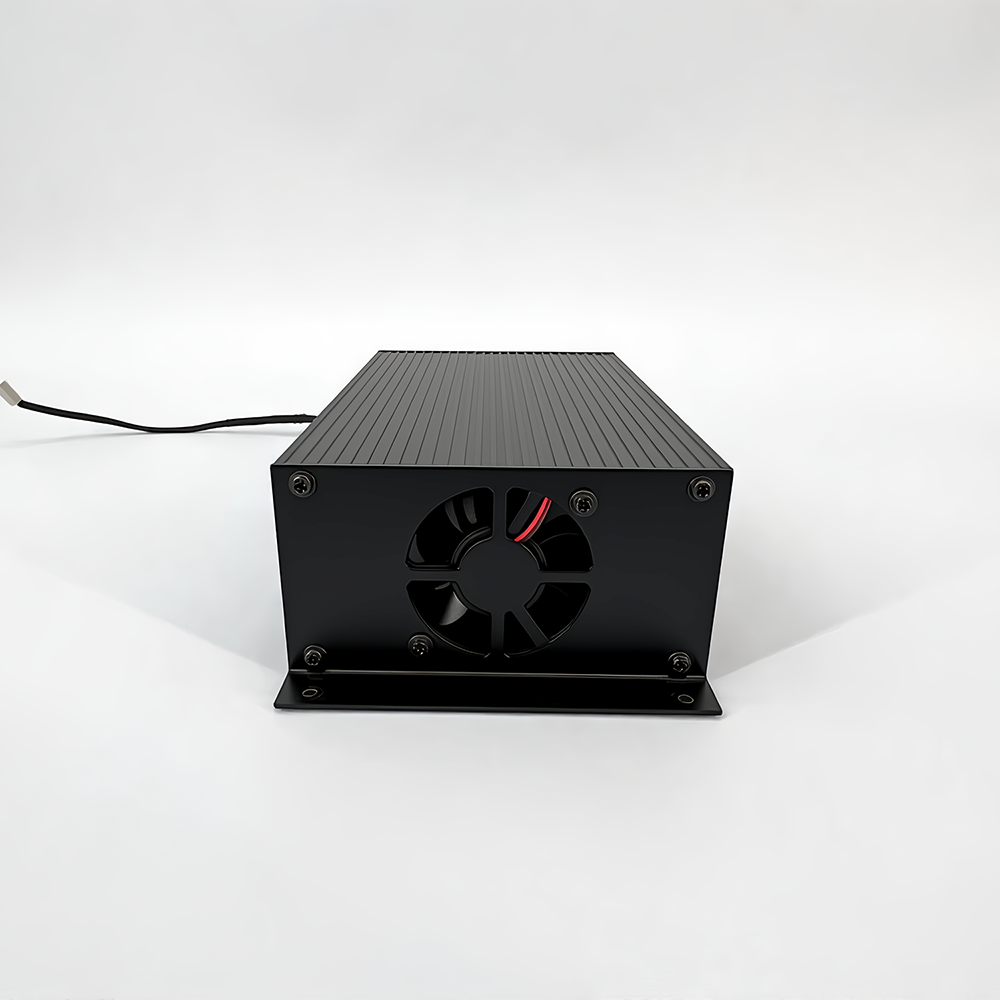

Output 80V-400W DC Stabilized Adjustable Switching Power Supply Single 88-89% Efficiency 1 Year Warranty Laboratory Industrial
Output 80V-400W DC Stabilized Adjustable Switching Power Supply Single 88-89% Efficiency 1 Year Warranty Laboratory Industrial
Output 80V-400W DC Stabilized Adjustable Switching Power Supply Single 88-89% Efficiency 1 Year Warranty Laboratory Industrial
Output 80V-400W DC Stabilized Adjustable Switching Power Supply Single 88-89% Efficiency 1 Year Warranty Laboratory Industrial
Output 80V-400W DC Stabilized Adjustable Switching Power Supply Single 88-89% Efficiency 1 Year Warranty Laboratory Industrial
1 / 5
Output 80V-400W DC Stabilized Adjustable Switching Power Supply Single 88-89% Efficiency 1 Year Warranty Laboratory Industrial
Output 80V-400W DC Stabilized Adjustable Switching Power Supply Single 88-89% Efficiency 1 Year Warranty Laboratory Industrial
Output 80V-400W DC Stabilized Adjustable Switching Power Supply Single 88-89% Efficiency 1 Year Warranty Laboratory Industrial
Output 80V-400W DC Stabilized Adjustable Switching Power Supply Single 88-89% Efficiency 1 Year Warranty Laboratory Industrial
Output 80V-400W DC Stabilized Adjustable Switching Power Supply Single 88-89% Efficiency 1 Year Warranty Laboratory Industrial

Output 80V-400W DC Stabilized Adjustable Switching Power Supply Single 88-89% Efficiency 1 Year Warranty Laboratory Industrial

Send Inquiry

Product Description

High-Power Regulated DC Switching Power Supply
Featuring a professional production factory of 10,000 square meters and specializing in high-power regulated power supplies for 15 years.

Product Overview

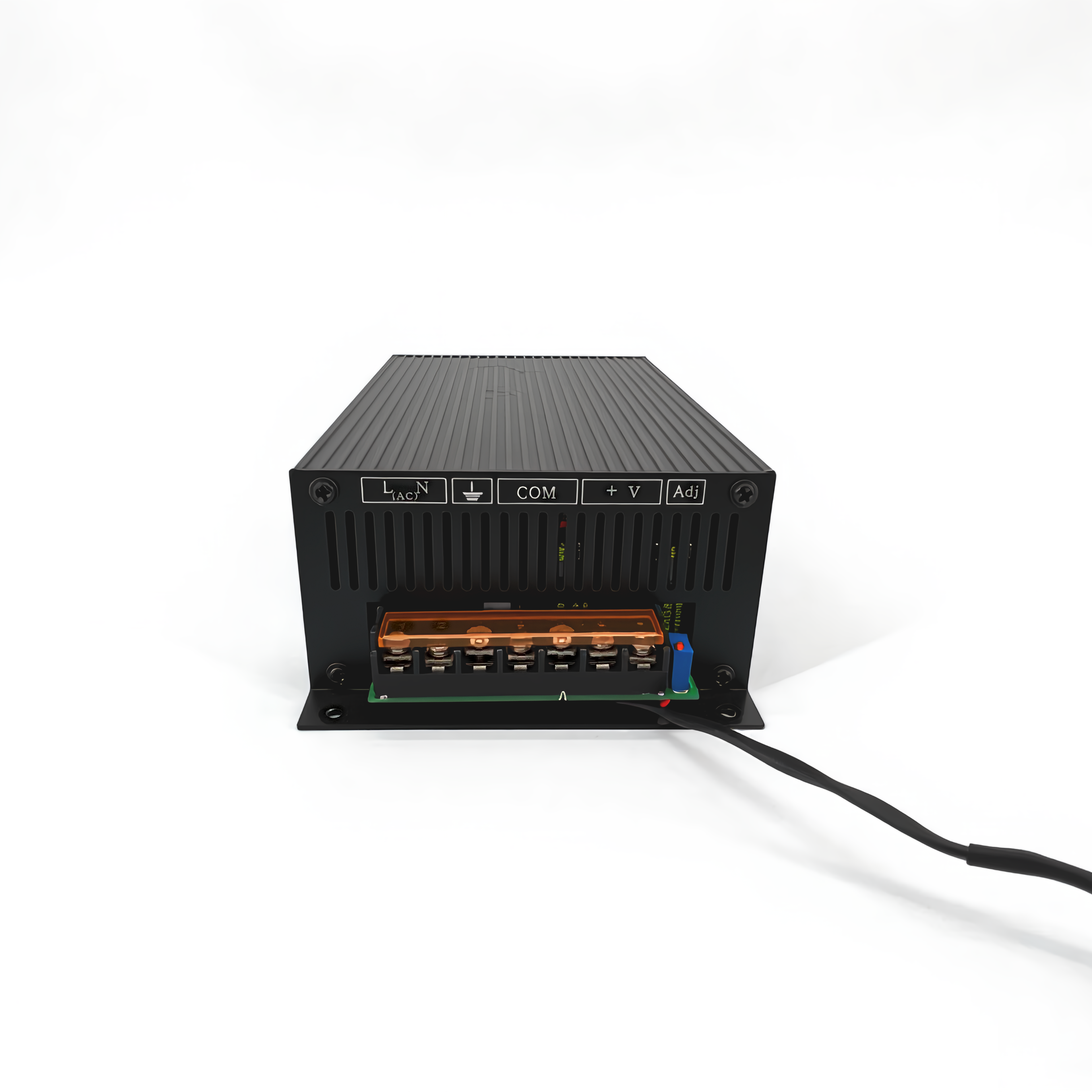

DC Switching Power Supply Unit
  • Product Name: DC Switching Power Supply
  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • Features: High stability and reliability
  • Warranty: 1 year
  • Weight: Approximately 1.5KG

Core Features & Details

DC Power Supply Control Panel DC Power Supply Features Internal Structure Features Output Protection Specifications

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 400W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase 220V±10% 50-60HZ / 110V±10% 50-60HZ Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V Product Features High stability, high reliability
Output Current Selected power/selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 1.5KG

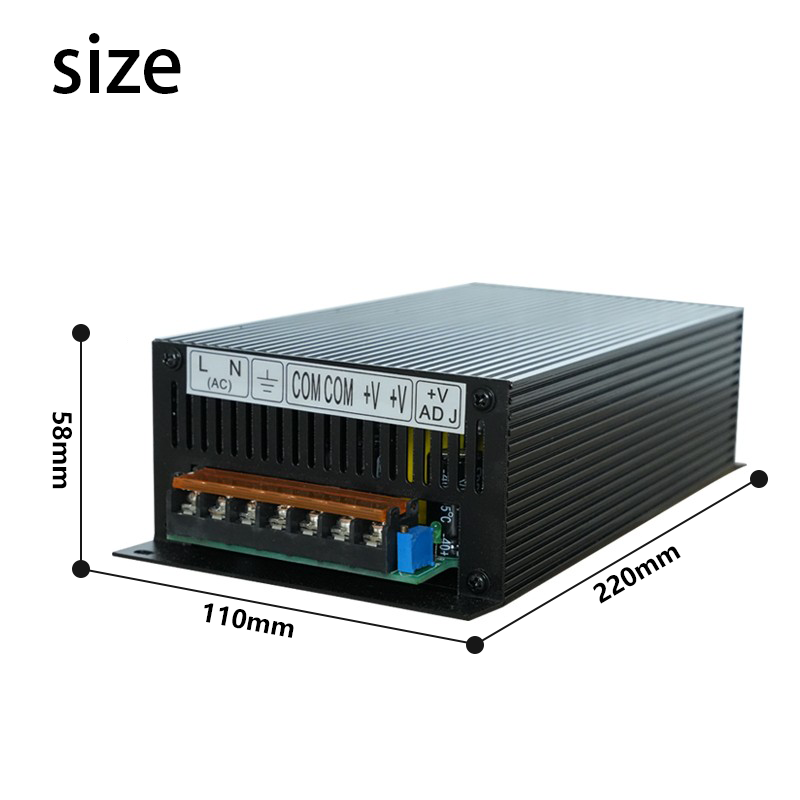

Efficiency >88-89% Carton Dimensions 255×125×65 mm
Output Voltage Accuracy ±1% - -

Product Display Gallery

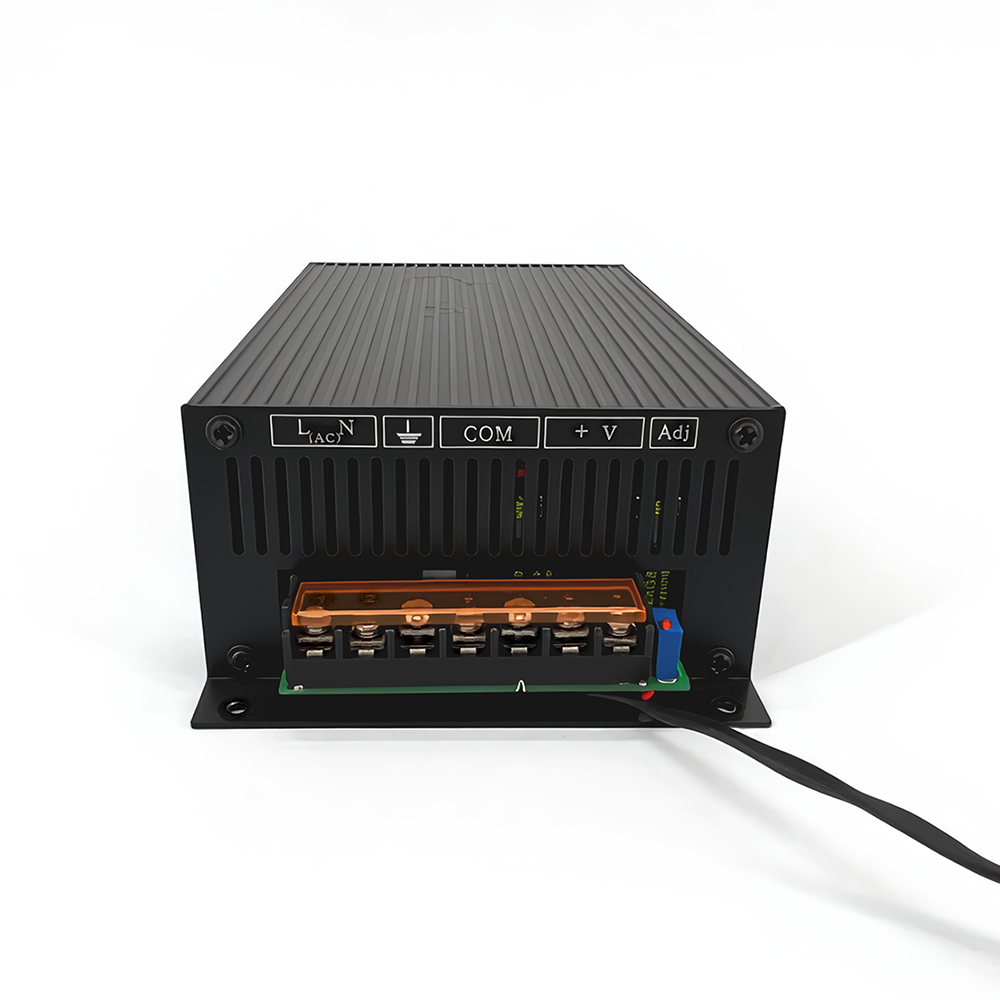

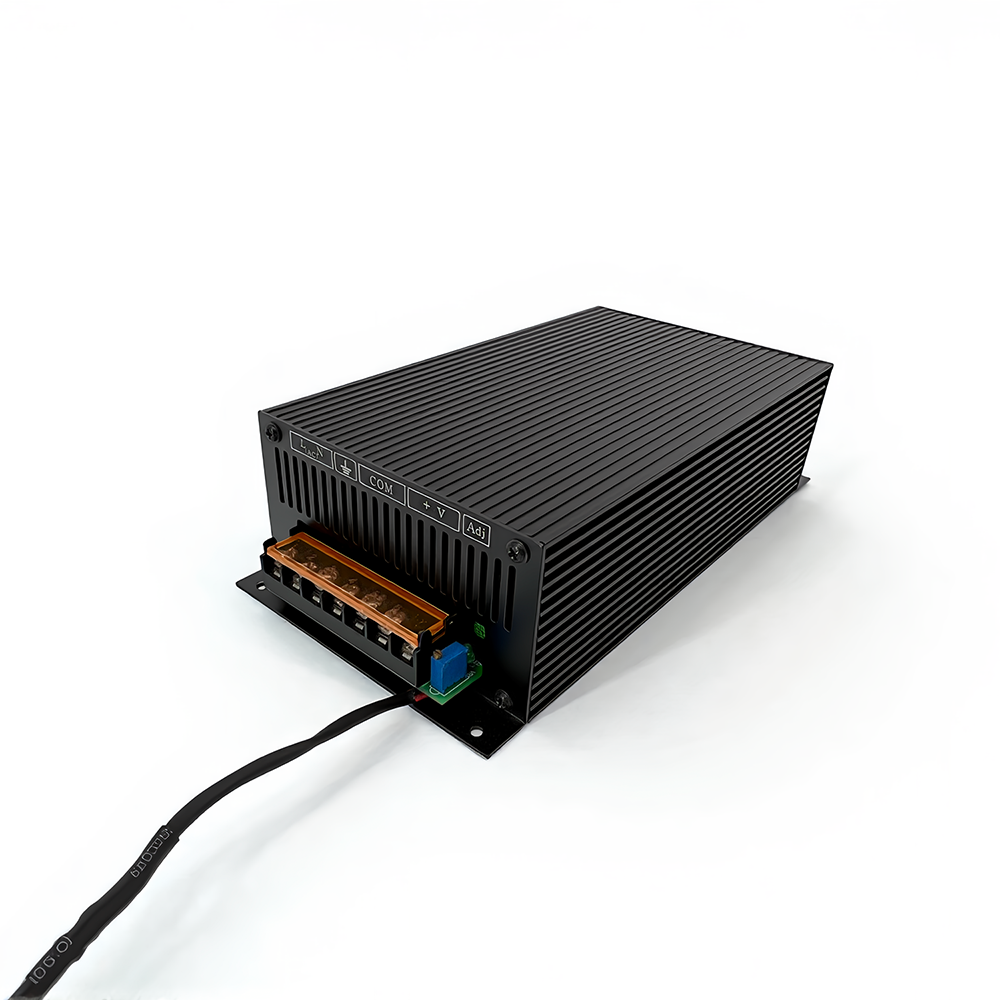

DC Switching Power Supply Front View DC Switching Power Supply Side View DC Switching Power Supply Terminals DC Switching Power Supply Dual Knobs DC Switching Power Supply Inside Details

Product Instructions & Safety Guidelines

1 Pre-Operation Inspection
Before powering on, check the switch power supply for any damage during transportation, such as loose screws, abnormal appearance, loose power cords, or moisture. If any issues are found, handle them promptly.
2 Power & Grounding Connection
The power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal. Connect the ground wire and input power wire correctly according to the rear panel label. Confirm that the input voltage matches the voltage specified in the manual.
3 Cooling Fan & Temperature Control
The cooling fan is temperature-controlled and starts automatically when the internal temperature exceeds the threshold. Fan speed varies with the output voltage and current. Ensure the inlet and outlet of the fan remain unblocked.
4 Overheat Protection
When the internal temperature reaches the threshold for overheating shutdown, the machine will stop working automatically to prevent damage. It will resume operation automatically once the temperature drops.
5 Operating Environment
Keep the equipment away from high levels of dust, acid, corrosive gases, direct sunlight, severe vibration, bumps, or rain.
6 Regular Dust Removal
Regularly remove dust using dry compressed air to improve service life and reliability. Due to the high voltage inside, do not open the casing to prevent damage to internal components.
7 Long-term Storage
When idle for long periods, store the unit in a dry and ventilated room. If stored for over 6 months, power on and operate the equipment for at least 30 minutes.
8 Load Connection Warning
Only connect to powered load equipment once the power-on self-test runs normally without error.
9 Malfunction Handling
If abnormal operation occurs, switch off the power supply immediately. Check the external connections for correctness and ensure all screws, switches, and knobs are properly set. Due to high internal voltages, do not attempt to disassemble or repair the device without proper knowledge and equipment.

Frequently Asked Questions

Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes. The system is equipped with comprehensive protection for overcurrent, overvoltage, overheating, and short circuiting.
Is there reverse protection?
Reverse protection can be configured as an optional custom addition.
Can it be used at full power for a long time?
No, the power supply needs to be used with excess capacity. We recommend operating below 80% capacity for continuous, long-term use.
Is it convenient to adjust voltage and current?
Yes, both voltage and current can be easily adjusted using the dual control knobs.
Is the high-power power supply isolated?
Yes, we provide fully isolated power supplies for enhanced safety and performance.
What is the voltage regulation range?
The voltage regulation range starts from 1V.
