Voltage Regulator 500W Adjustable DC Power Supply Single Output Industrial Use with Optional 12V-400V Range

1 / 5

Voltage Regulator 500W Adjustable DC Power Supply Single Output Industrial Use with Optional 12V-400V Range

Send Inquiry

Product Description

With a professional production factory spanning 10,000 square meters, we have specialized in high-power regulated power supplies for 15 years, committed to offering high-quality products and excellent after-sales service.

Product Name: DC Switching Power Supply

Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
Features: High stability and reliability
Warranty: 1 year warranty period
Weight: Approximately 1.5KG

Product Specifications Detail

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	500W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Single-phase 220V±10% 50-60Hz / 110V±10% 50-60Hz	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 1.5 kg
Efficiency	>88-89%	Carton Dimensions	255 × 125 × 65 mm
Output Voltage Accuracy	±1%	-	-

Product Gallery

Product Instructions

1. Pre-Operation Inspection Before powering on, check the power supply for potential damage during transit (e.g. loose screws, abnormal appearance, loose terminals, or dampness). Resolve any issues prior to operation.

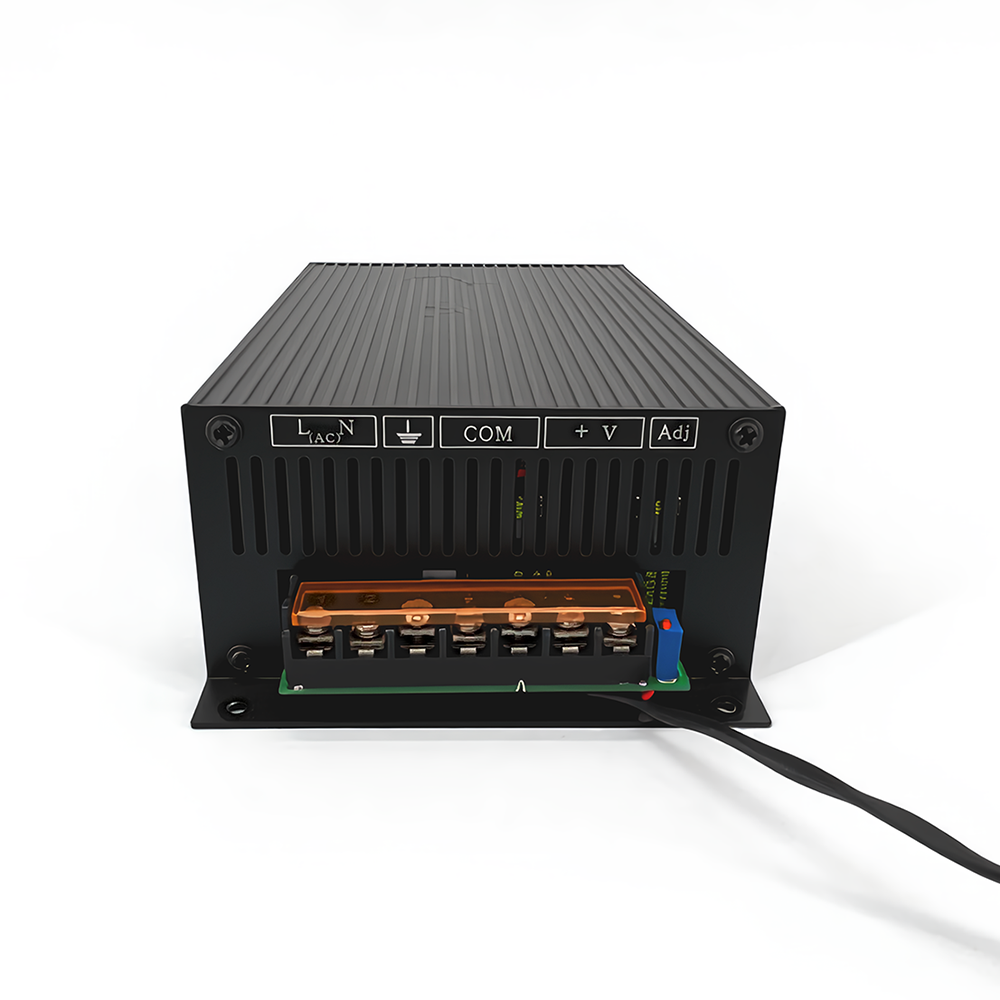

2. Power Connection & Safety For safety reasons, install an external air switch at the power input terminal. Connect the ground wire and input power wires properly according to the back panel labels. Ensure the input voltage matches the manual specifications.

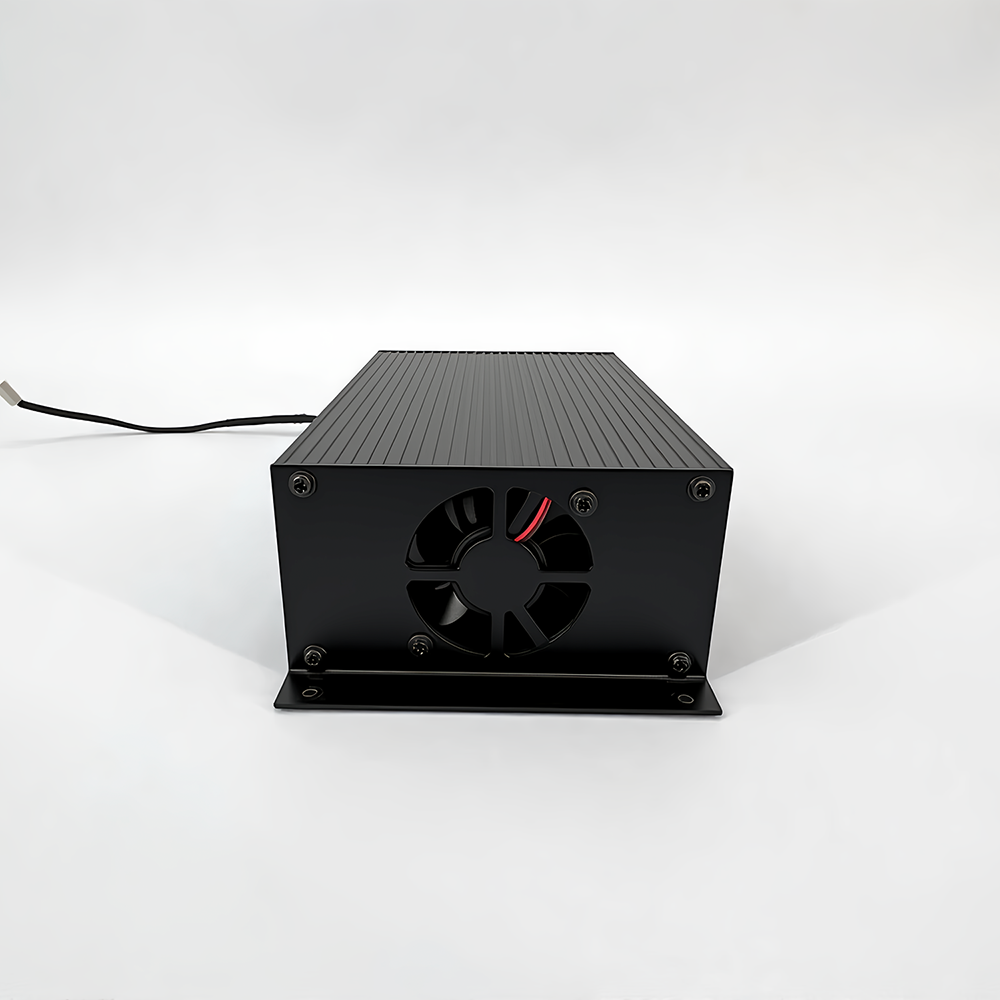

3. Temperature-Controlled Cooling Fan The built-in cooling fan starts automatically when the inner temperature reaches its threshold. The fan speed adjusts dynamically. Ensure the air inlets and outlets remain unobstructed during use.

4. Overheating Protection If internal temperatures exceed the threshold, the unit shuts down automatically. It resumes regular operation once cooled.

5. Operating Environment Avoid operating in environments with excessive dust, acid, corrosive gases, severe vibrations, impact, rain, or direct sunlight.

6. Regular Maintenance Perform periodic dust removal to extend service life and reliability. Use dry compressed air for cleaning, and do not open the casing to prevent contact with high-voltage components.

7. Storage Guidelines Store in a dry, ventilated room. If idle for over 6 months, power on the device and run it for at least 30 minutes.

8. Load Connection Only connect to powered load equipment once the power-on test has completed successfully and without errors.

9. Troubleshooting & Malfunctions If abnormal operation occurs, switch off the power supply immediately. Check connections and knobs. Do not disassemble or attempt unauthorized repairs. Contact technical support for assistance.

Frequently Asked Questions

Does the power supply support safety protections?

Yes, it features comprehensive protection against overvoltage, overcurrent, overheating, and short circuits.

Can reverse polarity protection be added?

Yes, reverse protection can be configured as a custom option upon request.

Can this power supply operate continuously at 100% capacity?

For long-term continuous operation, we recommend keeping the load below 80% of maximum capacity to ensure optimum stability and lifespan.

How easily can output parameters be adjusted?

Adjustment is highly convenient. Output voltage and current can be dialed in quickly using the dual knob configuration.

Are high-power units electrically isolated?

Yes, our high-power power supplies feature a fully isolated design.

What is the starting voltage for adjustment?

The output voltage regulation range begins starting from 1V.
