Voltmat Power
Voltmat Power
We are located in a core city cluster in the Yangtze River Delta region of China. Situated near key transport hubs, product exports are convenient. The company features a professional production factory of 10,000 square meters, specializing in high-power regulated power supplies for over 15 years. We are recognized as an honest enterprise and excellent after-sales service provider.
| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20%~88% |
| Power Rating | 1500W | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields |
| Input Voltage | 220V±10%, 50-60Hz / 110V±10%, 50-60Hz | Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |

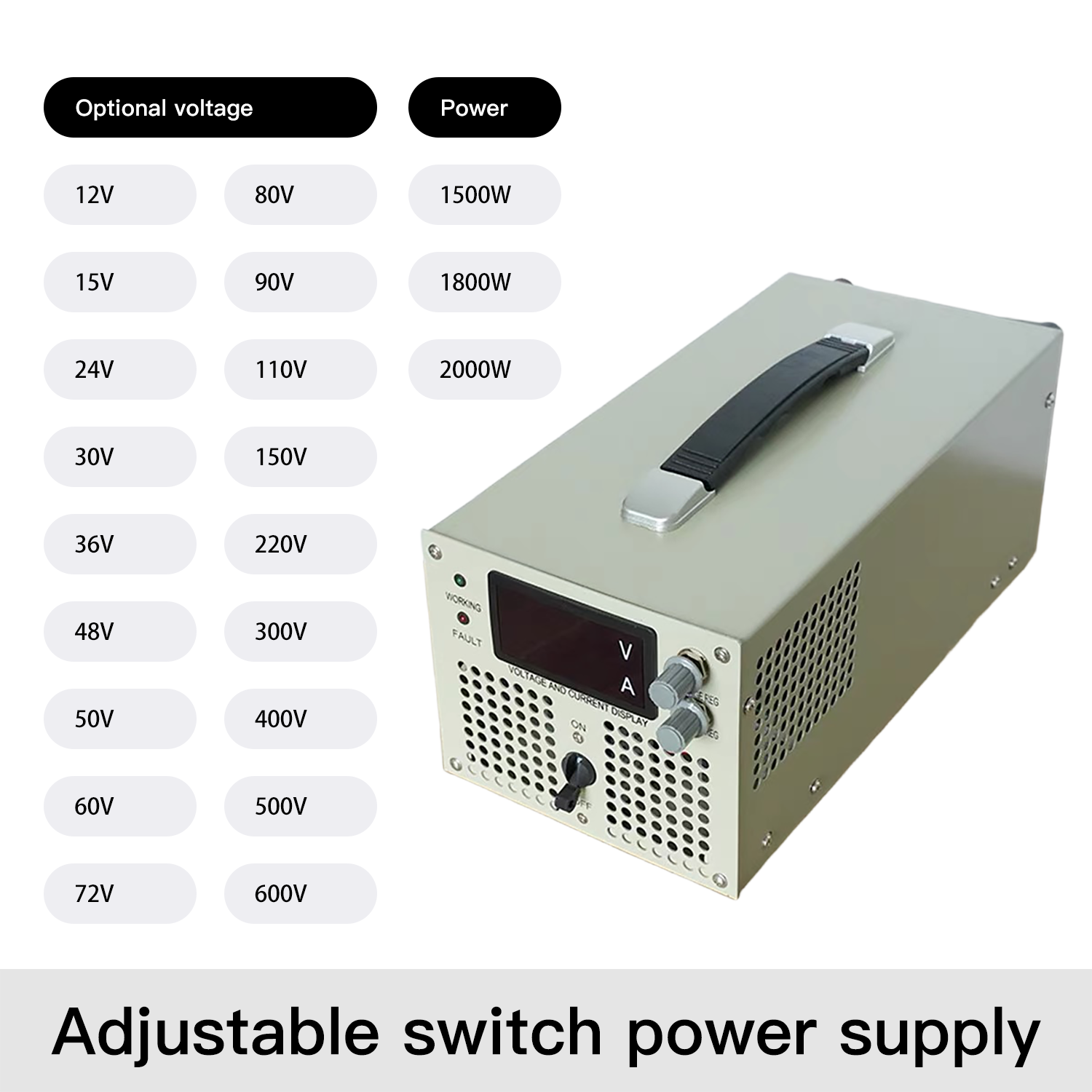

| Output Voltage | 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V | Product Features | High stability, high reliability |
| Output Current | Selected power / selected voltage | Warranty Period | 1 Year |
| Power Conversion Type | AC-DC | Product Weight | Approximately 5KG |
| Efficiency | >88-89% | Carton Dimensions | 435x235x215mm |
| Output Voltage Accuracy | ±1% |
Before powering on, check the stored and transported switch power supply. Check for any damage during transportation, such as loose screws, abnormal appearance, shaken power cords or terminals, and dampness. Address any of these issues promptly before use.
The local power switch controls the internal auxiliary power supply. For safety, please install an external air switch at the power input terminal. Connect the ground wire and input power wire correctly according to the labels on the rear panel. Verify that the input voltage matches the manual specifications.

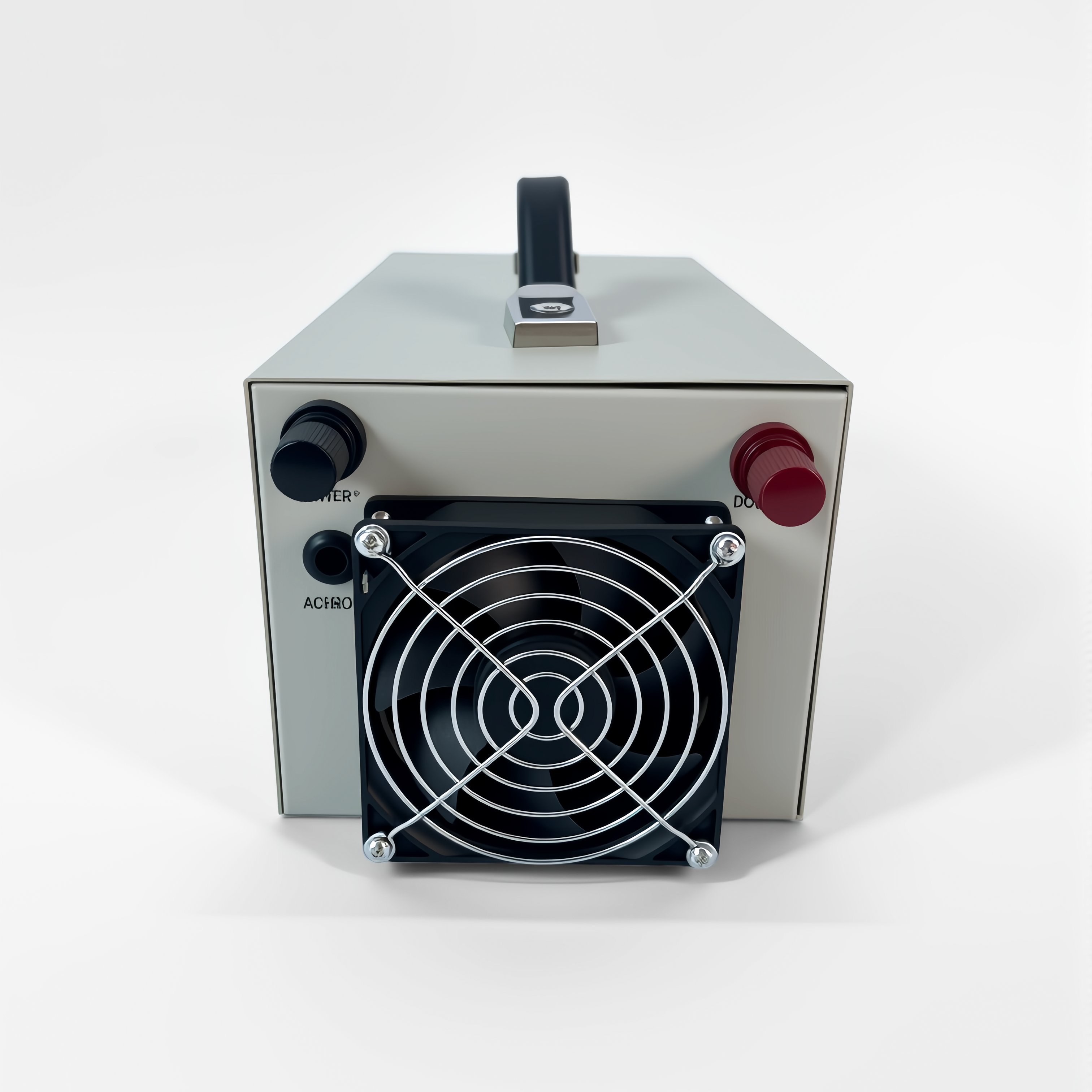

The cooling fan is temperature-controlled and starts when the internal temperature exceeds the threshold. The fan speed adjusts dynamically based on output voltage and current. Keep the air inlets and outlets completely unobstructed during operation.
If internal temperatures reach the overheat threshold, the system automatically shuts down for self-protection. It resumes operation automatically once the temperature cools down.
Ensure the operating environment is free of excessive dust, acid, corrosive gases, severe vibrations, moisture, and direct sunlight.
Perform regular dust removal using dry compressed air to increase service life. Do not open the casing to prevent damage or safety hazards due to internal high voltage.
For long-term storage, keep the unit in a dry, ventilated room. If stored for over 6 months, power on and operate the supply for at least 30 minutes before deployment.
Warning: Only connect load equipment to the power supply after verifying that the power-on self-test runs normally without errors.
Troubleshooting: If abnormal operation occurs, shut off the power immediately. Verify all external connections, screws, switches, and knob positions. Due to high internal voltages, do not disassemble or repair the device without proper training. Please contact the technical support team for assistance.
Yes, all of these protective features are built-in as standard.
Yes, reverse polarity protection can be added as an optional customized feature.
No, it is recommended to use the power supply with extra capacity margin. Long-term continuous operations should keep the load below 80% of rated capacity.

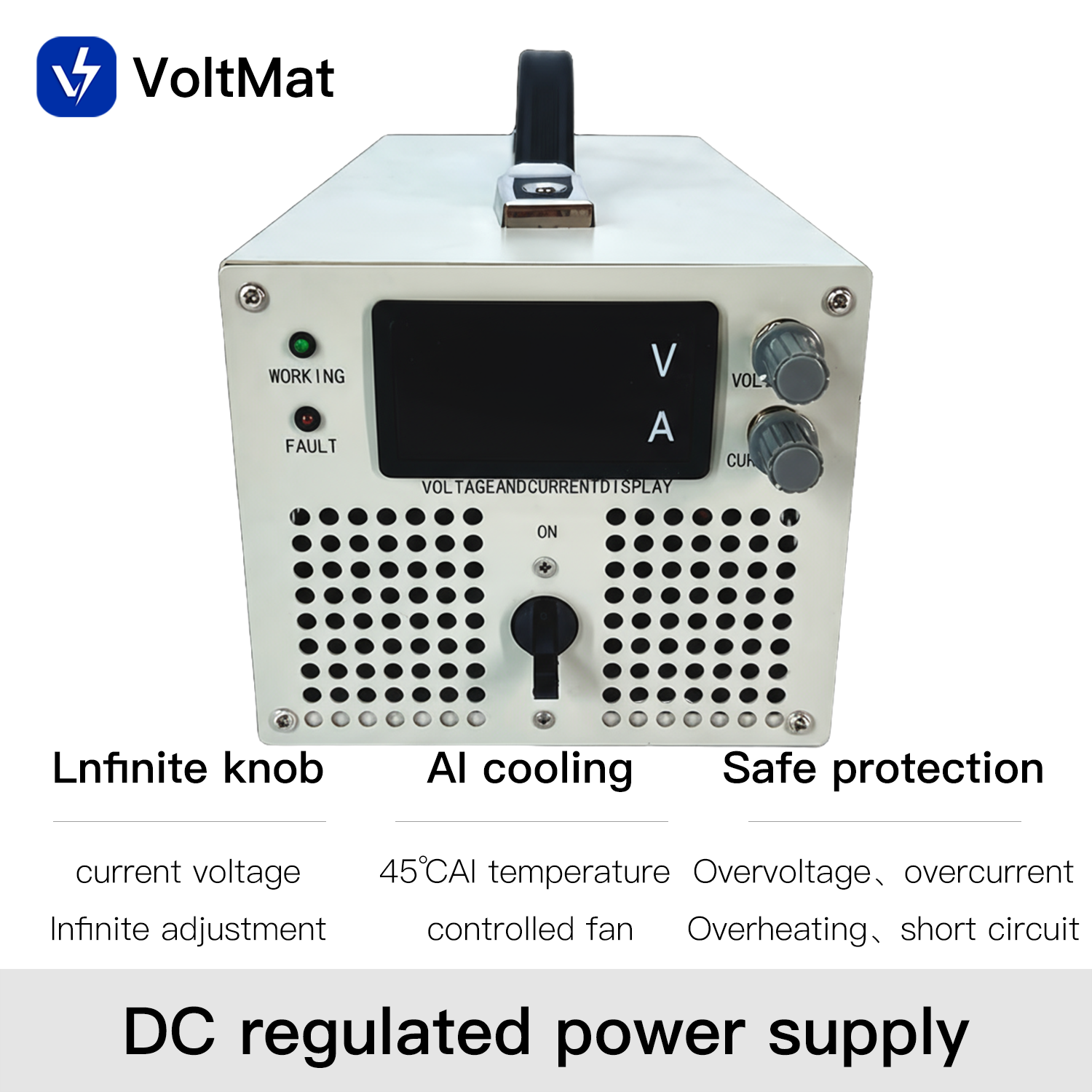

Adjustments are very convenient. Voltage and current settings can be easily adjusted using the dual knobs on the panel.
Yes, we provide fully isolated power supplies for enhanced safety and stability.
The output voltage regulation starts from 1V.
