600V-1500W Adjustable Regulated Single Output AC-DC Power Supply for Industrial Use (12V-600V Selectable 50/60Hz)
600V-1500W Adjustable Regulated Single Output AC-DC Power Supply for Industrial Use (12V-600V Selectable 50/60Hz)
600V-1500W Adjustable Regulated Single Output AC-DC Power Supply for Industrial Use (12V-600V Selectable 50/60Hz)
600V-1500W Adjustable Regulated Single Output AC-DC Power Supply for Industrial Use (12V-600V Selectable 50/60Hz)
600V-1500W Adjustable Regulated Single Output AC-DC Power Supply for Industrial Use (12V-600V Selectable 50/60Hz)
1 / 5
600V-1500W Adjustable Regulated Single Output AC-DC Power Supply for Industrial Use (12V-600V Selectable 50/60Hz)
600V-1500W Adjustable Regulated Single Output AC-DC Power Supply for Industrial Use (12V-600V Selectable 50/60Hz)
600V-1500W Adjustable Regulated Single Output AC-DC Power Supply for Industrial Use (12V-600V Selectable 50/60Hz)
600V-1500W Adjustable Regulated Single Output AC-DC Power Supply for Industrial Use (12V-600V Selectable 50/60Hz)
600V-1500W Adjustable Regulated Single Output AC-DC Power Supply for Industrial Use (12V-600V Selectable 50/60Hz)

600V-1500W Adjustable Regulated Single Output AC-DC Power Supply for Industrial Use (12V-600V Selectable 50/60Hz)

Send Inquiry

Product Description

DC Switching Power Supply
DC Power Supply Details
Product Overview
  • Product:DC Switching Power Supply
  • Application:Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.

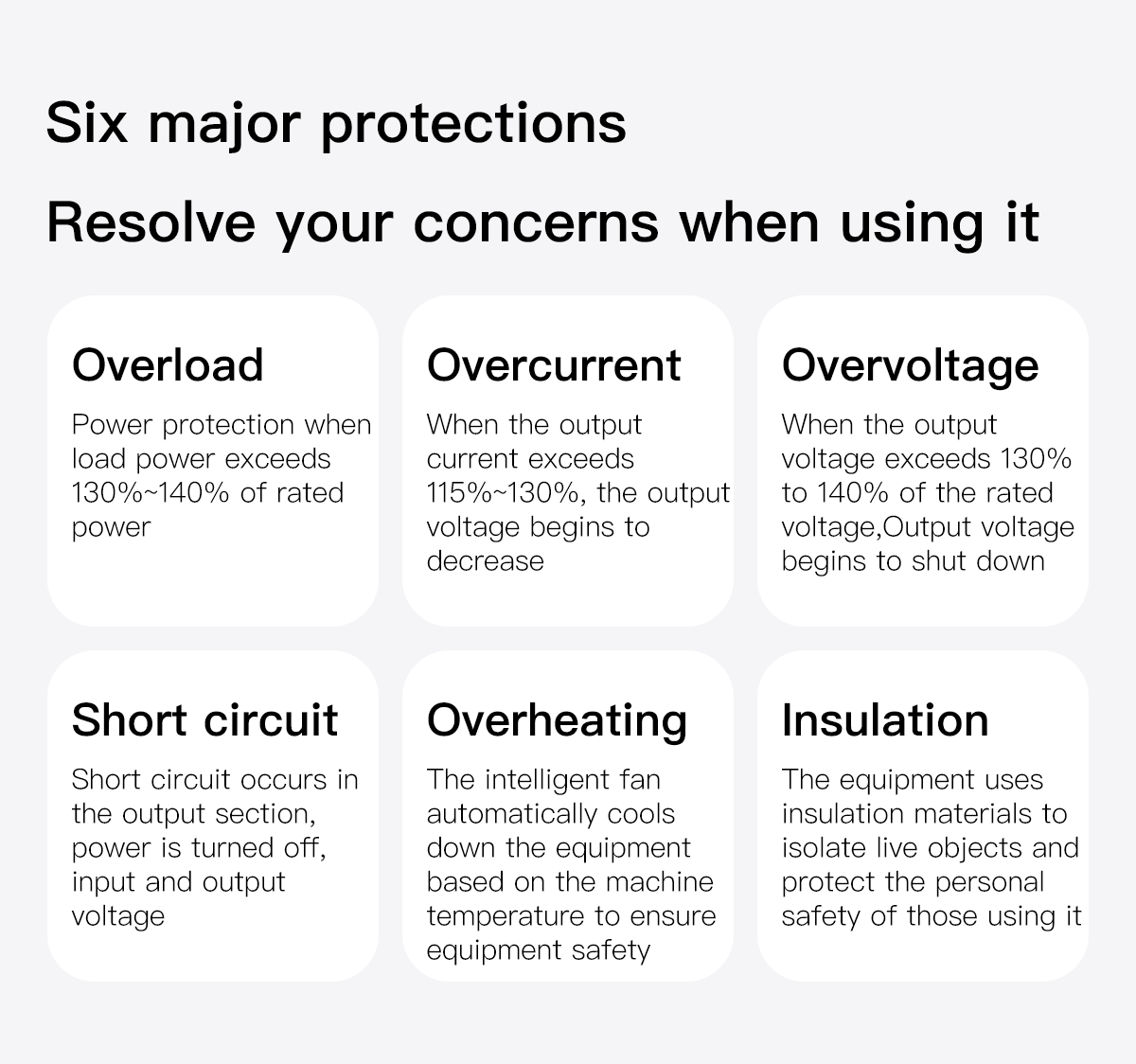

  • Protection:Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • Features:High stability and reliability
  • Warranty:1 year
  • Weight:Approximately 5KG
Product Features & Details
Feature Detail 1
Feature Detail 2
Feature Detail 3
Feature Detail 4
Feature Detail 5
Technical Specifications
Product Name DC Switching Power Supply Operating Humidity 20%~88% RH
Power Rating 1500W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Input Voltage 220V±10% / 110V±10%, 50-60HZ Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection

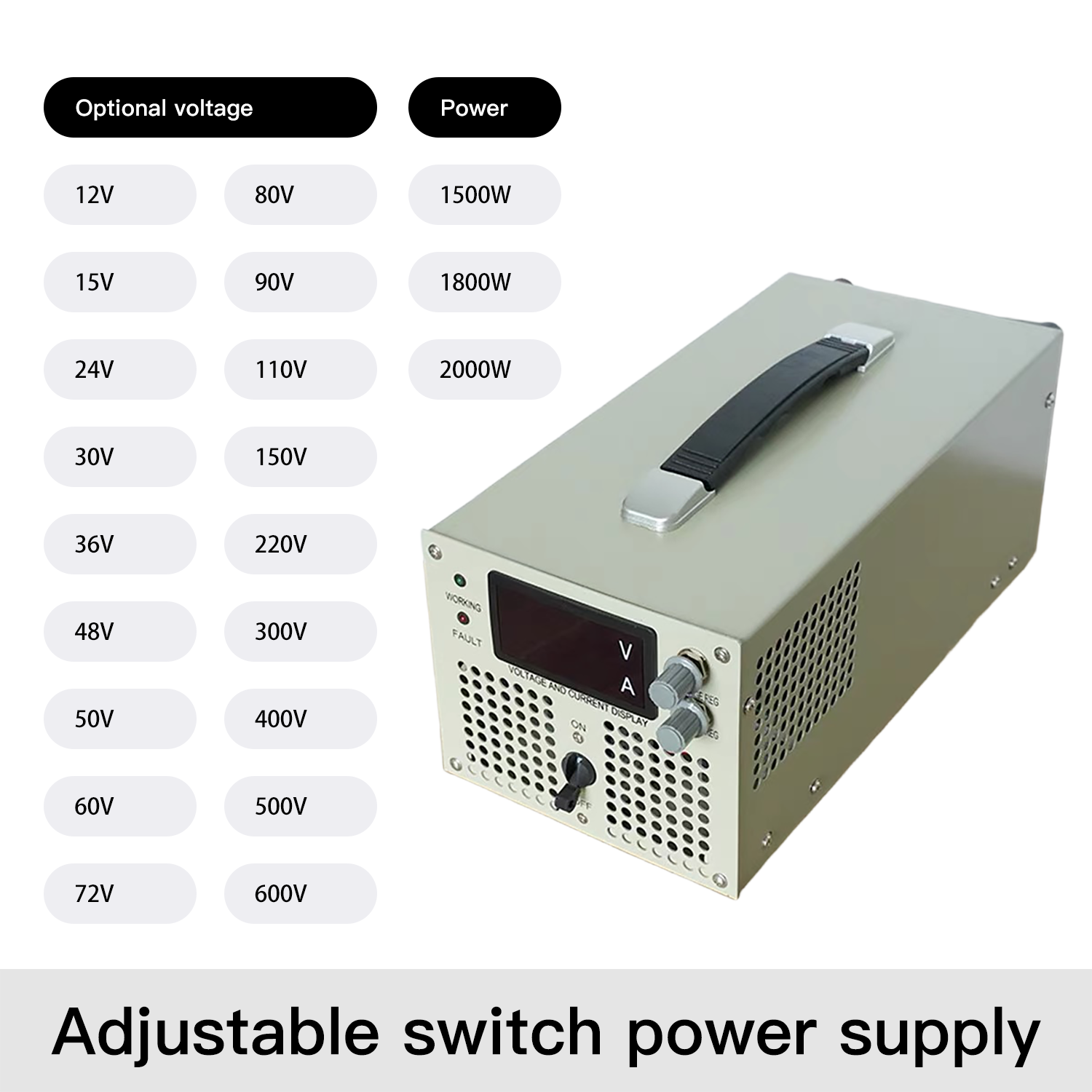

Output Voltage 12V / 15V / 24V / 30V / 36V / 48V / 50V / 60V / 72V / 80V / 90V / 110V / 150V / 220V / 300V / 400V / 500V / 600V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion AC-DC Product Weight Approximately 5 kg
Efficiency ≥ 88-89% Carton Dimensions 435x235x215mm
Voltage Accuracy ±1% - -
Applications & Showcase
Showcase 1
Showcase 2
Showcase 3
Showcase 4
Showcase 5
Product Instructions
1
Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, shaken power cords or terminals, and dampness. Handle any issues in a timely manner.
2
The local power switch controls the internal auxiliary power supply. For safety, please add an air switch to the power input terminal. Connect the ground wire and input power wire according to the rear panel label. Confirm the input power voltage matches the specifications.
3
The cooling fan is temperature-controlled and starts when the internal temperature exceeds the threshold. Fan speed varies with output voltage and current. Keep the fan inlet and outlet clear of obstructions.
4
If the internal temperature reaches the overheat shutdown threshold, the machine will automatically stop working to prevent damage, and will resume once it cools down.
5
Ensure the operating environment is free of excessive dust, acid, corrosive gases, severe vibrations, moisture, and direct sunlight.
6
Perform regular dust removal (e.g., using dry compressed air) to extend product life. Do not open the casing without authorization due to internal high voltage.
7
If idle for over 6 months, store in a dry, ventilated room and power on for at least half an hour before use.
8
Warning: Only connect the load equipment after confirming the power-on test is normal and error-free.
9
In case of malfunction, cut off the power switch immediately. Check internal and external connections, screws, and knob positions. Due to high voltage, do not attempt to repair the equipment yourself. Please notify professional technicians promptly to resolve any issues.
Frequently Asked Questions (FAQ)
Q: Is there overvoltage, overcurrent, overheating, or short circuit protection?
A: Yes, the system includes integrated overvoltage, overcurrent, overheating, and short circuit protection.
Q: Is there reverse protection?
A: Adding reverse protection is optional and can be customized.
Q: Can it be used at full power for a long time?
A: No, it is recommended to use the power supply with excess capacity. Long-term continuous operations should be kept below 80% load capacity.
Q: Is it convenient to adjust voltage and current?
A: Yes, it is very convenient. The voltage and current values can be easily adjusted using the dual knobs on the panel.
Q: Is the high-power power supply isolated?
A: Yes, this is designed as a fully isolated power supply.
Q: What is the voltage regulation range?
A: The voltage regulation starts from 1V.
