1500W-2000W Adjustable High Power AC-DC Single Output DC Regulated Power Supply with 12V-600V Options
1500W-2000W Adjustable High Power AC-DC Single Output DC Regulated Power Supply with 12V-600V Options
1500W-2000W Adjustable High Power AC-DC Single Output DC Regulated Power Supply with 12V-600V Options
1500W-2000W Adjustable High Power AC-DC Single Output DC Regulated Power Supply with 12V-600V Options
1500W-2000W Adjustable High Power AC-DC Single Output DC Regulated Power Supply with 12V-600V Options
1 / 5
1500W-2000W Adjustable High Power AC-DC Single Output DC Regulated Power Supply with 12V-600V Options
1500W-2000W Adjustable High Power AC-DC Single Output DC Regulated Power Supply with 12V-600V Options
1500W-2000W Adjustable High Power AC-DC Single Output DC Regulated Power Supply with 12V-600V Options
1500W-2000W Adjustable High Power AC-DC Single Output DC Regulated Power Supply with 12V-600V Options
1500W-2000W Adjustable High Power AC-DC Single Output DC Regulated Power Supply with 12V-600V Options

1500W-2000W Adjustable High Power AC-DC Single Output DC Regulated Power Supply with 12V-600V Options

Send Inquiry

Product Description

High-Power Regulated Power Supply Unit

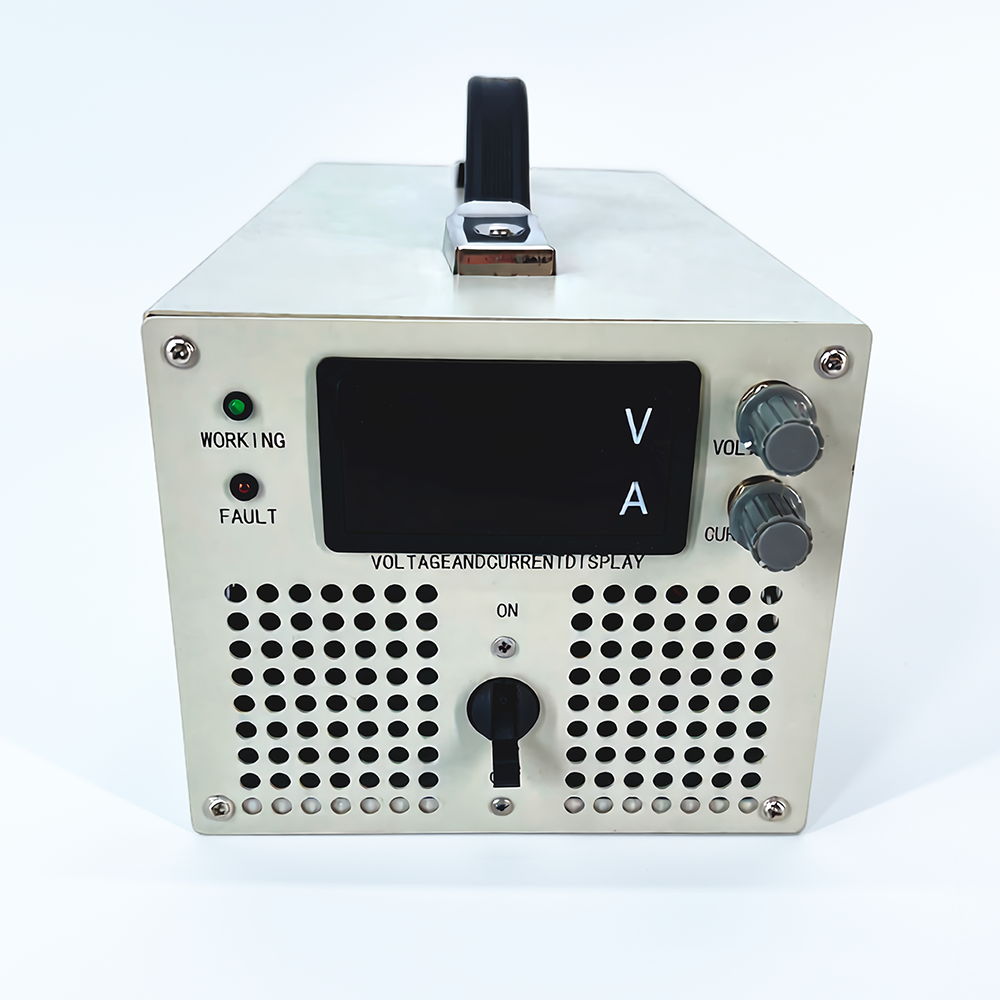

Regulated Power Supply Front Panel

Specializing in high-power regulated power supplies for 15 years, utilizing a professional production factory spanning 10,000 square meters. Recognized as an honest enterprise unit and dedicated to delivering excellent after-sales service.

DC Switching Power Supply Main Display

DC Switching Power Supply

  • Application Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection Functions Equipped with Overcurrent, Overvoltage, Overheat, and Short Circuit Protection.
  • Key Features & Support High stability and reliability, backed by a 1-year warranty. Approximate weight is 5KG.
Power Supply Internal Architecture
Power Supply Side Ventilation
Power Supply Circuit Board Design
Power Supply Output Terminals
Power Supply Quality Testing

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 1500W / 1800W / 2000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields
Input Voltage 220V±10% (50-60Hz) / 110V±10% (50-60Hz) Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection

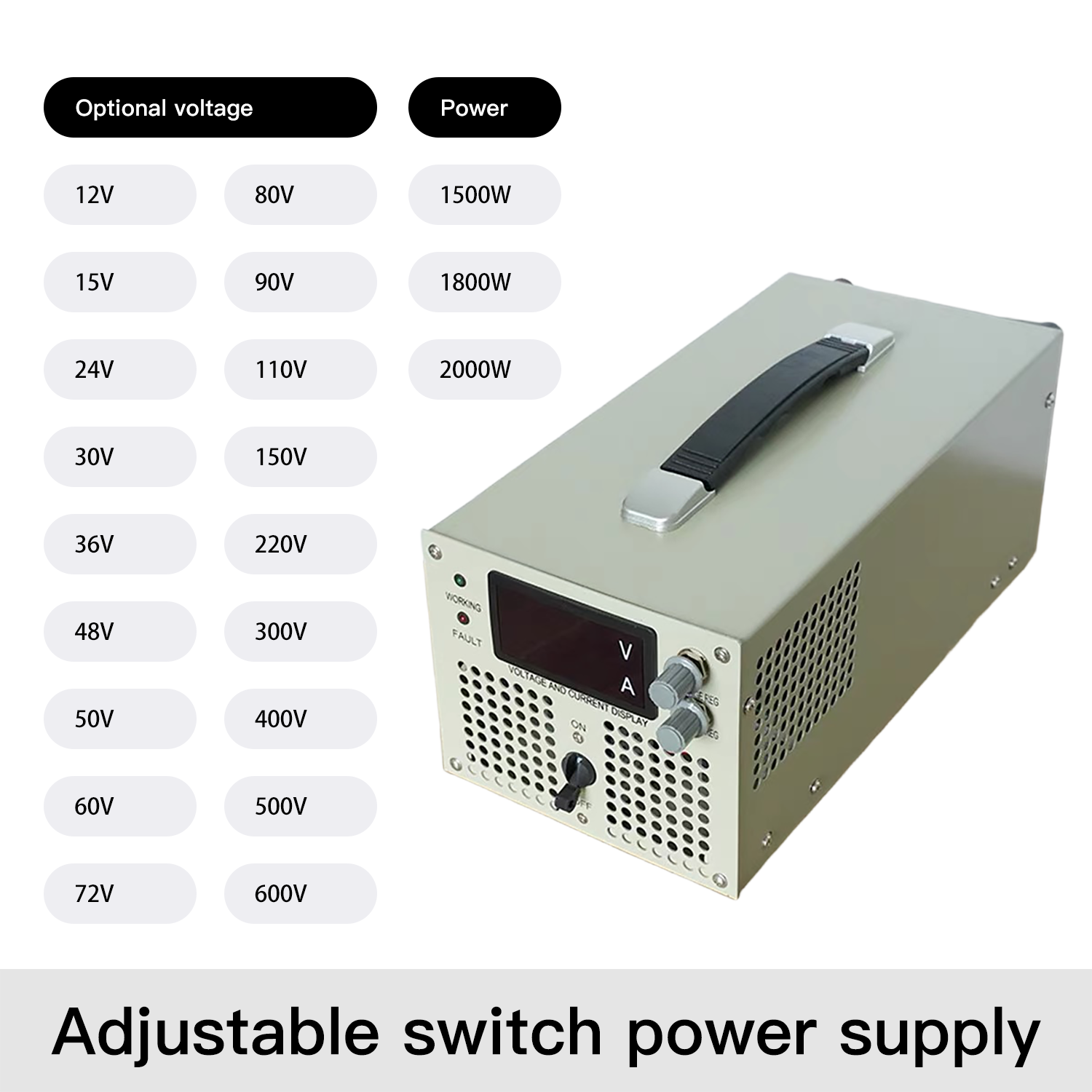

Output Voltage 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 5KG
Efficiency > 88-89% Carton Dimensions 435 x 235 x 215mm
Output Voltage Accuracy ±1% - -
Production Line Manufacturing
Component Assembly Process
Final Quality Check
Finished Power Supply Units
Secure Product Packaging

Product Instructions

1
Before powering on, inspect the stored and transported switching power supply. Check for any damage during transit, such as loose screws, abnormal appearance, dislodged power cords/terminals, or dampness. Address any of these issues promptly.
2
The local power switch controls the auxiliary power supply inside the machine. For safety, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel. Confirm the input supply voltage matches the specifications in the manual.
3
The cooling fan is temperature controlled and starts when the internal temperature exceeds the starting threshold. The fan speed varies with the output voltage and current, which is normal. Ensure the inlet and outlet of the fan remain unobstructed during operation.
4
If the internal temperature reaches the overheating shutdown threshold, the machine will stop working automatically to prevent damage. It will resume operation automatically once the temperature drops.
5
When operating this equipment, ensure that ambient dust, acid, corrosive gases, or substances do not exceed normal levels. Avoid severe vibrations, bumps, rain, and direct sunlight.
6
Regular dust removal is recommended to significantly extend the service life and reliability of the equipment. Dry compressed air can be used, but note that high voltage is present inside. Do not open the casing or damage internal components.
7
For long-term storage, keep the equipment in a dry, ventilated room. If stored for over 6 months, power on and operate the supply for at least half an hour before use.
8
Warning: Only connect to the powered load equipment when the initial power-on test is complete and verified error-free.
9
Malfunction Handling: If abnormal operation occurs, switch off the stabilized power supply immediately. Inspect the internal and external connections for correctness and ensure screws, switches, and knobs are positioned correctly. Because of the high voltage risk, do not disassemble the casing or attempt self-repair without professional knowledge. Please notify support promptly to resolve the issue.

Frequently Asked Questions

Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply unit features full protection mechanisms including overvoltage, overcurrent, overheating, and short-circuit protection.
Can it be used at full power for a long time?
No, it is recommended to run the power supply with excess capacity. Long-term continuous operations should be maintained below 80% of maximum power capacity.
Is it convenient to adjust voltage and current?
Yes, adjustments are highly convenient and can be managed directly via dual knobs on the unit.
Is the high-power power supply isolated?
Yes, this design is a fully isolated power supply.
What is the voltage regulation range?
The voltage regulation range starts from 1V.
Is the power supply sufficient?
Yes, the unit provides full, sufficient power according to the rated specifications.
