Voltmat Power
Voltmat Power
| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20%~88% |
| Power Rating | 1500W / 1800W / 2000W | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields |
| Input Voltage | 220V±10% (50-60Hz) / 110V±10% (50-60Hz) | Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |

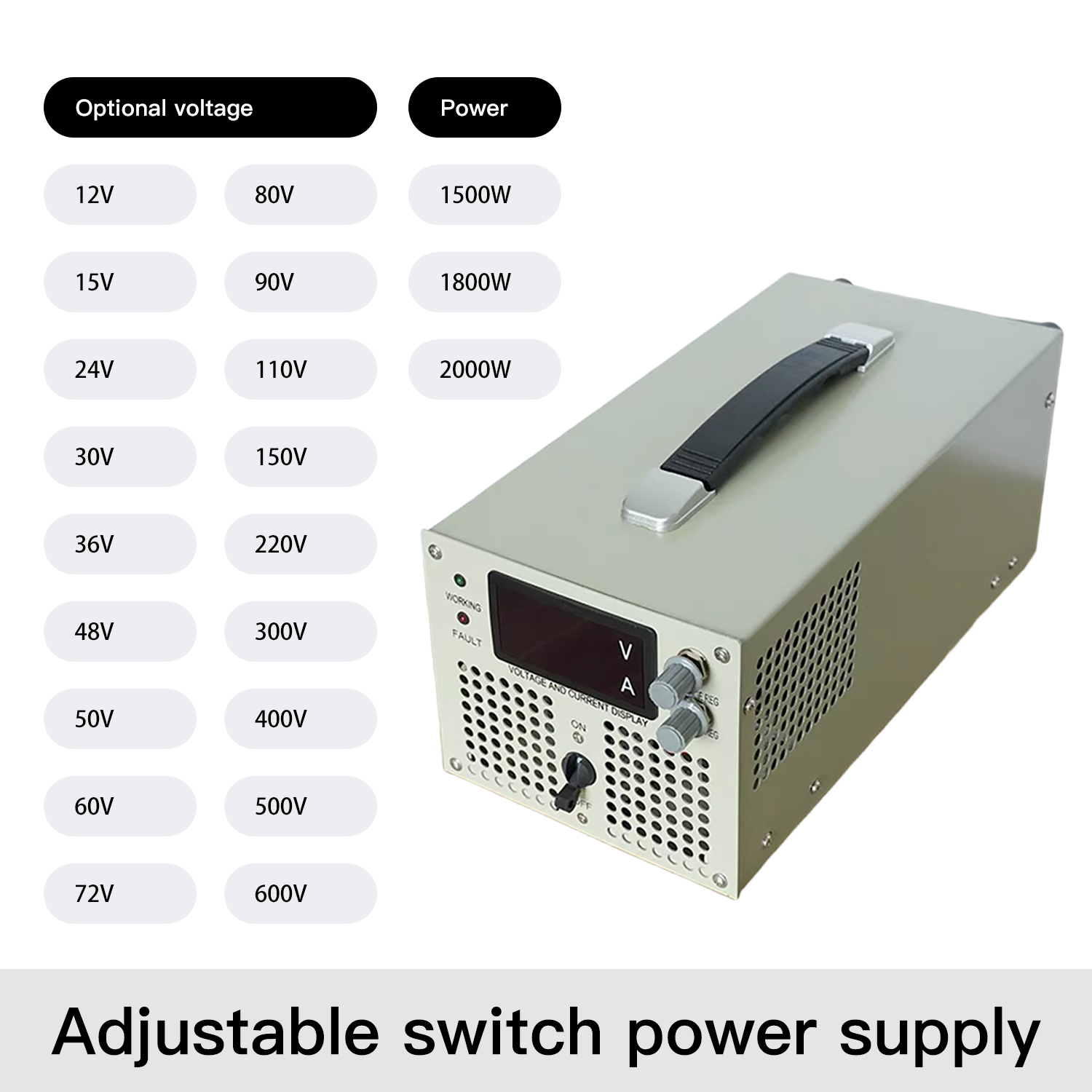

| Output Voltage | 12V / 15V / 24V / 30V / 36V / 48V / 50V / 60V / 72V / 80V / 90V / 110V / 150V / 220V / 300V / 400V / 500V / 600V | Product Features | High stability, high reliability |
| Output Current | Selected power / selected voltage | Warranty Period | 1 Year |
| Power Conversion Type | AC-DC | Product Weight | Approximately 5KG |
| Efficiency | > 88-89% | Carton Dimensions | 435 x 235 x 215 mm |
| Output Voltage Accuracy | ±1% | - | - |
Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, whether the power cord and terminal are shaken off, and if they are damp. Address any issues in a timely manner.
The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel. Confirm that the voltage of the input power supply matches the specification in the manual.

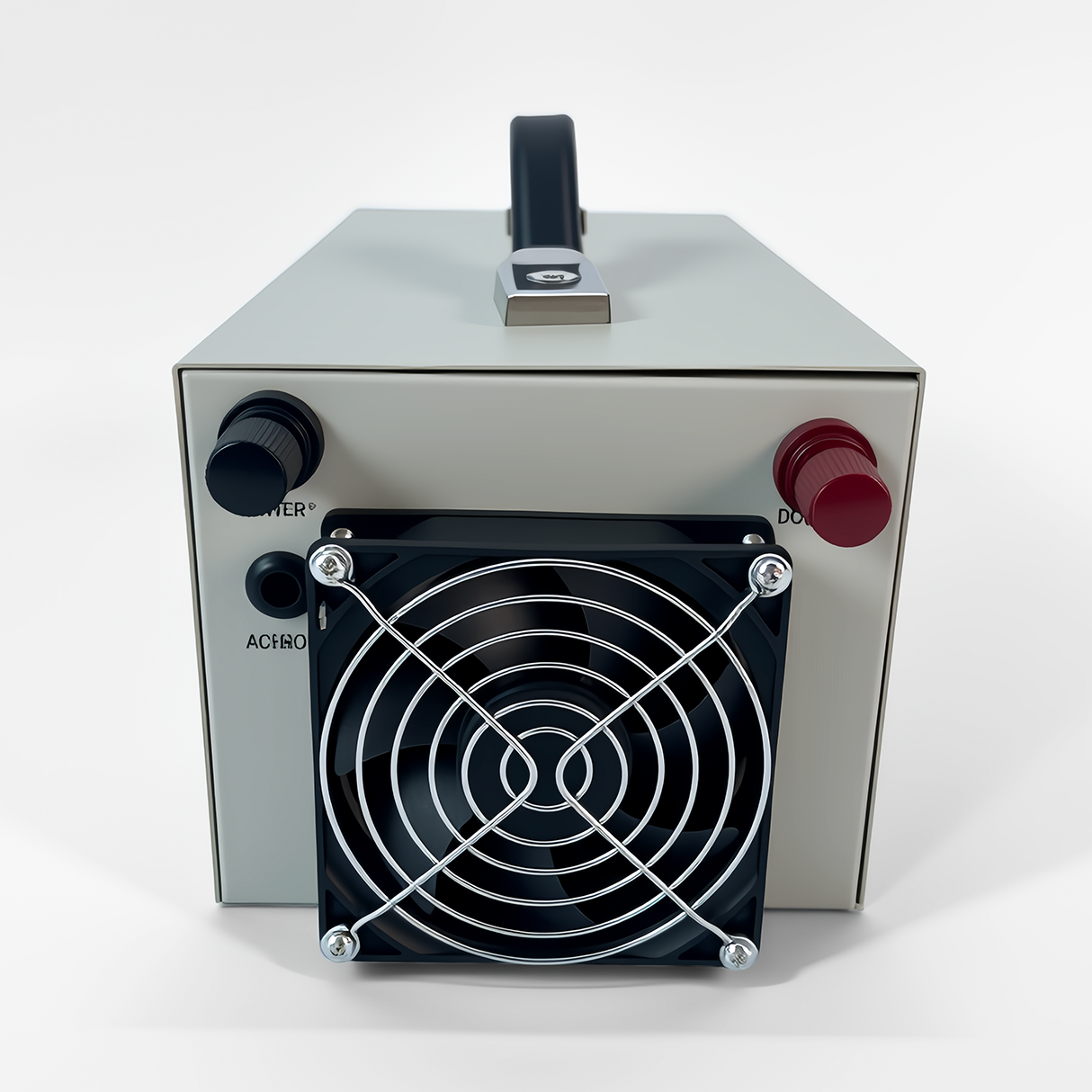

The cooling fan is temperature-controlled. When the internal temperature exceeds the threshold, the fan will start automatically. The fan speed varies based on output voltage and current, which is normal. Ensure the fan's inlet and outlet are not blocked during operation.
When the temperature inside the machine reaches the threshold for overheating shutdown, the machine will automatically stop working to prevent damage. Once the temperature drops to a safe level, it will automatically resume operation.
When operating this power equipment, ensure the surrounding air does not exceed normal levels of dust, acid, corrosive gases, or substances. Avoid severe vibrations, bumps, rain, and direct sunlight.
Regular dust removal is highly recommended to improve the service life and reliability of the power equipment. Dry compressed air can be used for dust removal. Do not open the casing without authorization due to internal high voltage, and be careful not to damage internal components.
If the power equipment is idle for a long period, store it in a dry and ventilated room. If stored for over 6 months, power on and operate the equipment for at least half an hour before use.
Warning: Only connect to the powered load equipment after the initial power-on test is confirmed normal and error-free.
Troubleshooting: If abnormal operation is observed, immediately cut off the power switch. Check the internal and external connections for correctness and ensure all screws, switches, and knobs are properly set. Due to the high voltage inside the unit, do not disassemble or attempt repairs without professional knowledge and equipment. Please contact qualified technical support promptly to resolve issues.
Yes, the power supply is designed with comprehensive built-in protection mechanisms covering overcurrent, overvoltage, overheating, and short circuits.
No, the power supply needs to be used with a buffer capacity. For long-term continuous operation, it is recommended to keep the load below 80% of its maximum rating.

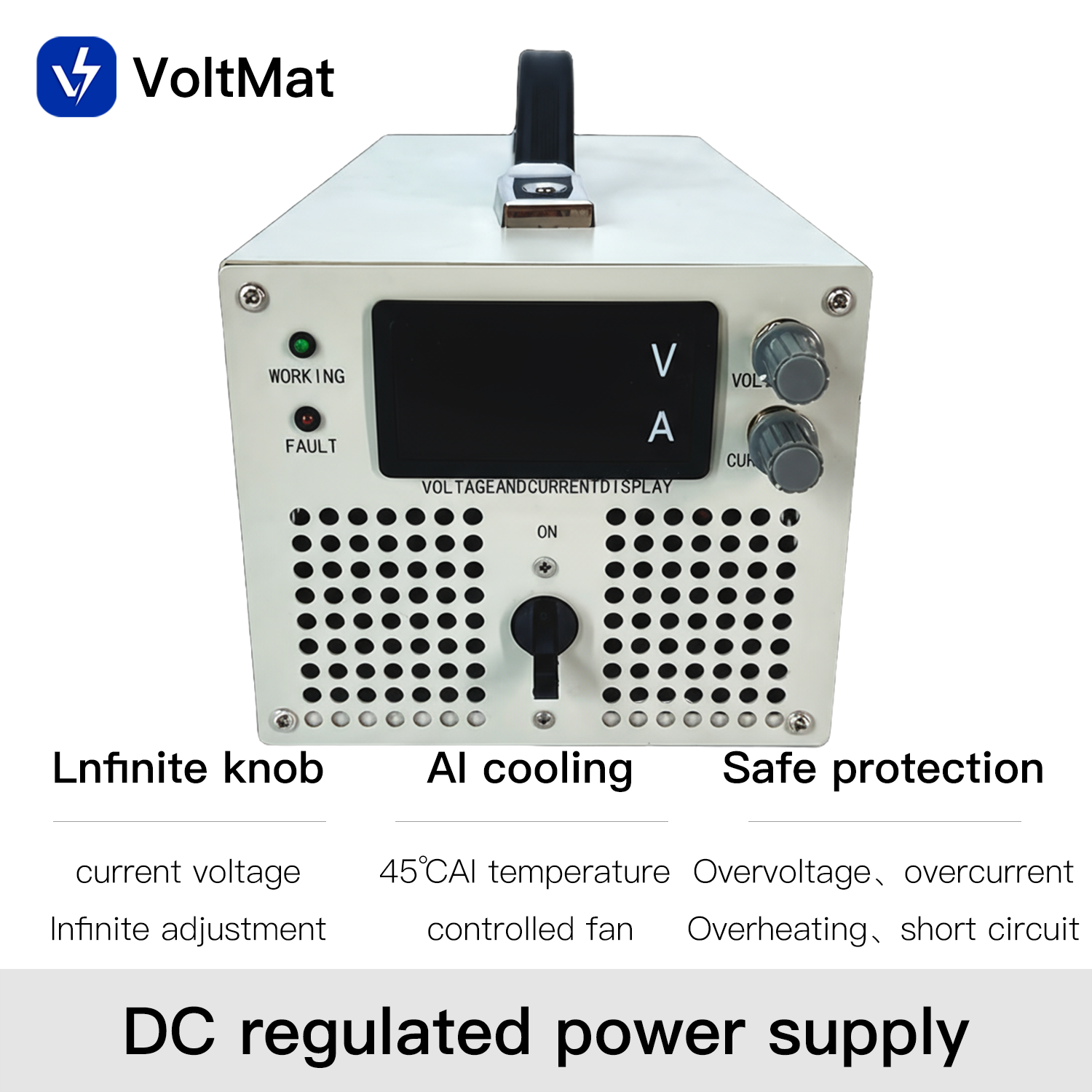

Yes, it is very convenient. The voltage and current can be easily adjusted using the dual knobs on the unit.
Yes, this product is a fully isolated power supply, ensuring high safety and reliability.
The voltage regulation range starts from 1V up to the specified maximum rating of the selected model.
Yes, the unit provides full and sufficient rated output power according to its technical specifications.
