Output 600V-2000W Industrial Grade High-Power Single Output AC-DC Voltage Regulator
Output 600V-2000W Industrial Grade High-Power Single Output AC-DC Voltage Regulator
Output 600V-2000W Industrial Grade High-Power Single Output AC-DC Voltage Regulator
Output 600V-2000W Industrial Grade High-Power Single Output AC-DC Voltage Regulator
Output 600V-2000W Industrial Grade High-Power Single Output AC-DC Voltage Regulator
1 / 5
Output 600V-2000W Industrial Grade High-Power Single Output AC-DC Voltage Regulator
Output 600V-2000W Industrial Grade High-Power Single Output AC-DC Voltage Regulator
Output 600V-2000W Industrial Grade High-Power Single Output AC-DC Voltage Regulator
Output 600V-2000W Industrial Grade High-Power Single Output AC-DC Voltage Regulator
Output 600V-2000W Industrial Grade High-Power Single Output AC-DC Voltage Regulator

Output 600V-2000W Industrial Grade High-Power Single Output AC-DC Voltage Regulator

Send Inquiry

Product Description

DC Power Supply Banner
DC Switching Power Supply Presentation
DC Switching Power Supply Details
Product Overview
⚡
Product Name: DC Switching Power Supply
⚙️
Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
🛡️

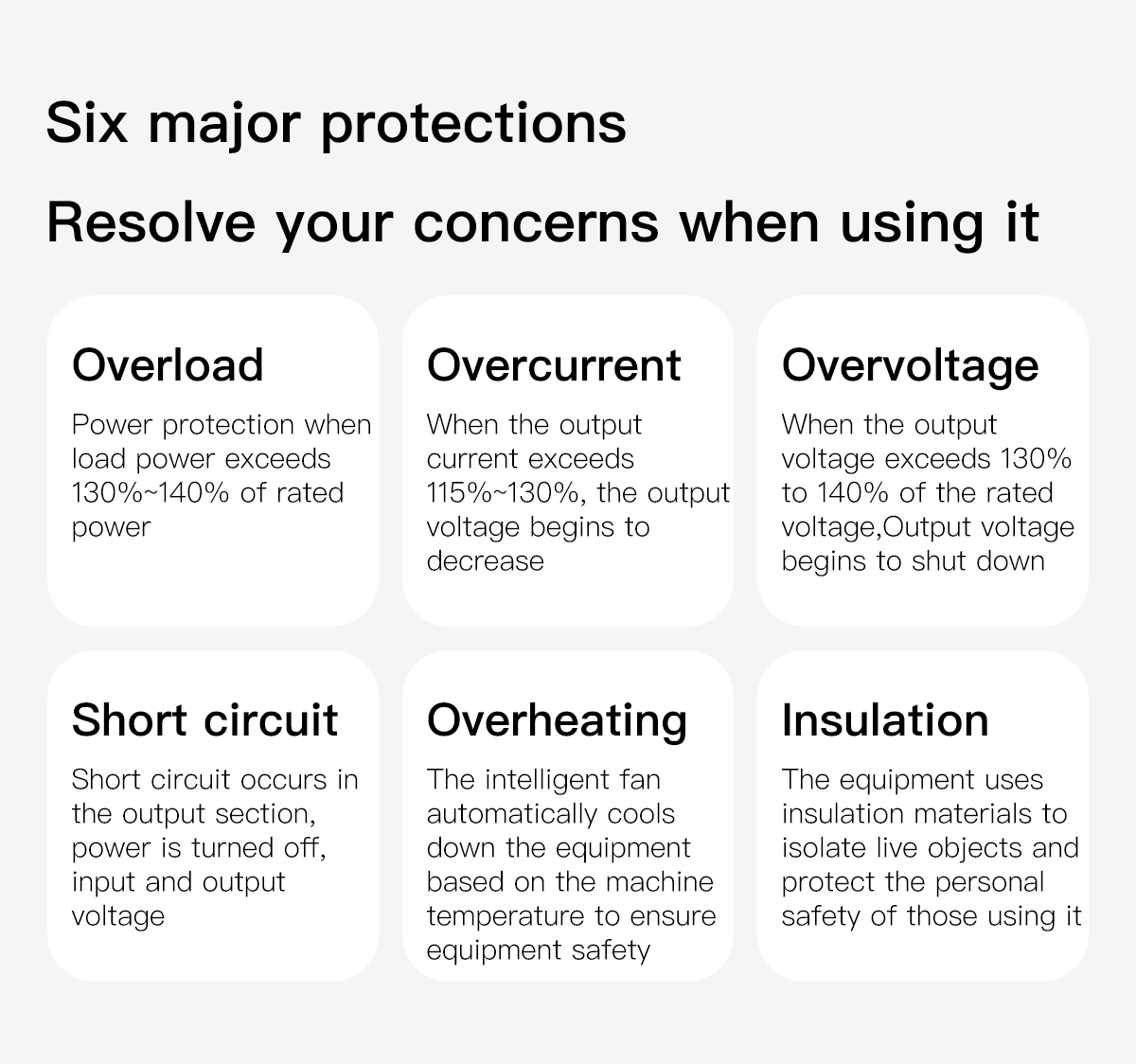

Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
⭐
Features: High stability and reliability
📅
Warranty: 1 year
⚖️
Weight: Approximately 5KG
Product Feature 1
Product Feature 2
Product Feature 3
Product Feature 4
Product Feature 5
Technical Specifications
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 2000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage 220V±10%, 50-60HZ
110V±10%, 50-60HZ		 Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection

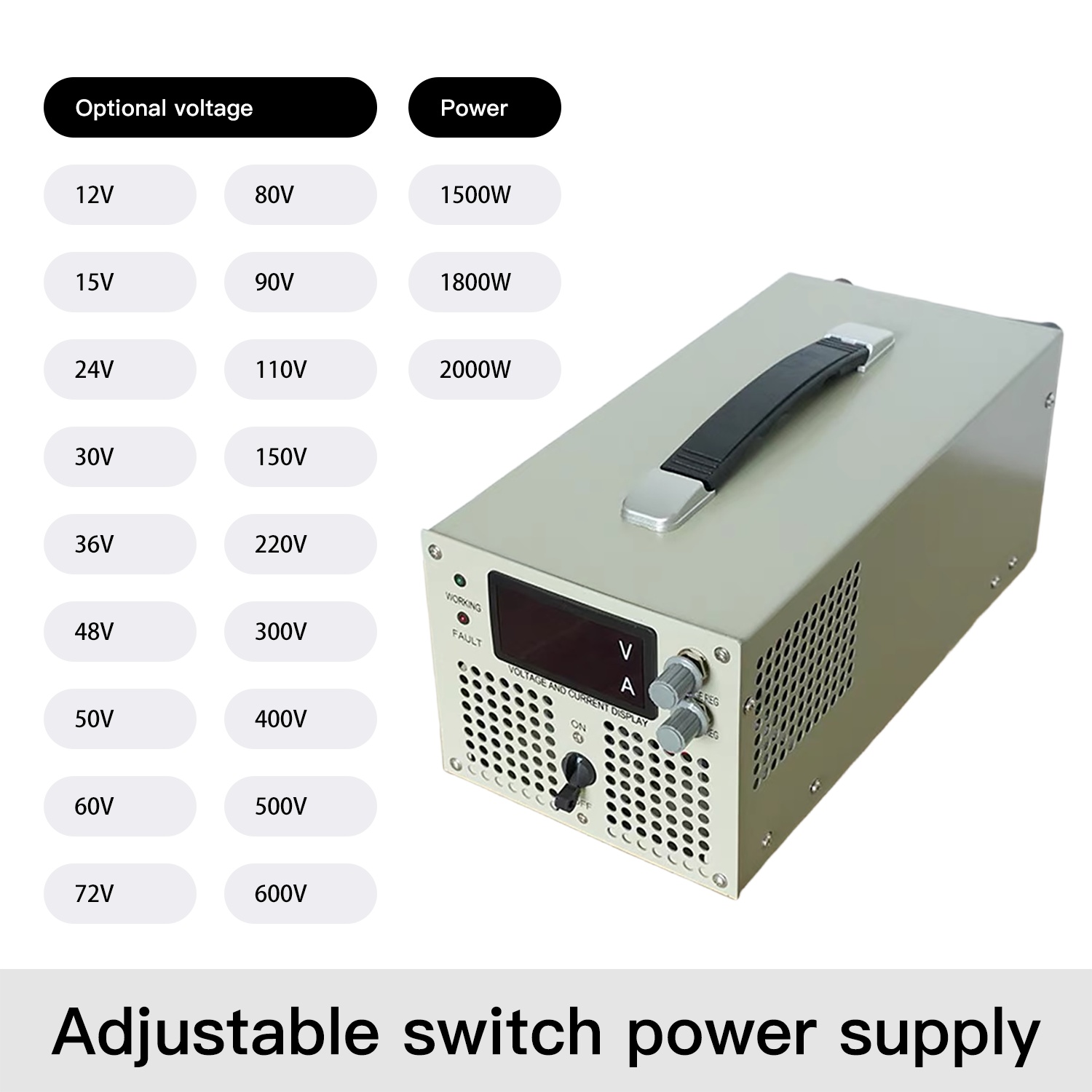

Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V Product Features High stability, high reliability
Output Current Selected power/selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 5KG

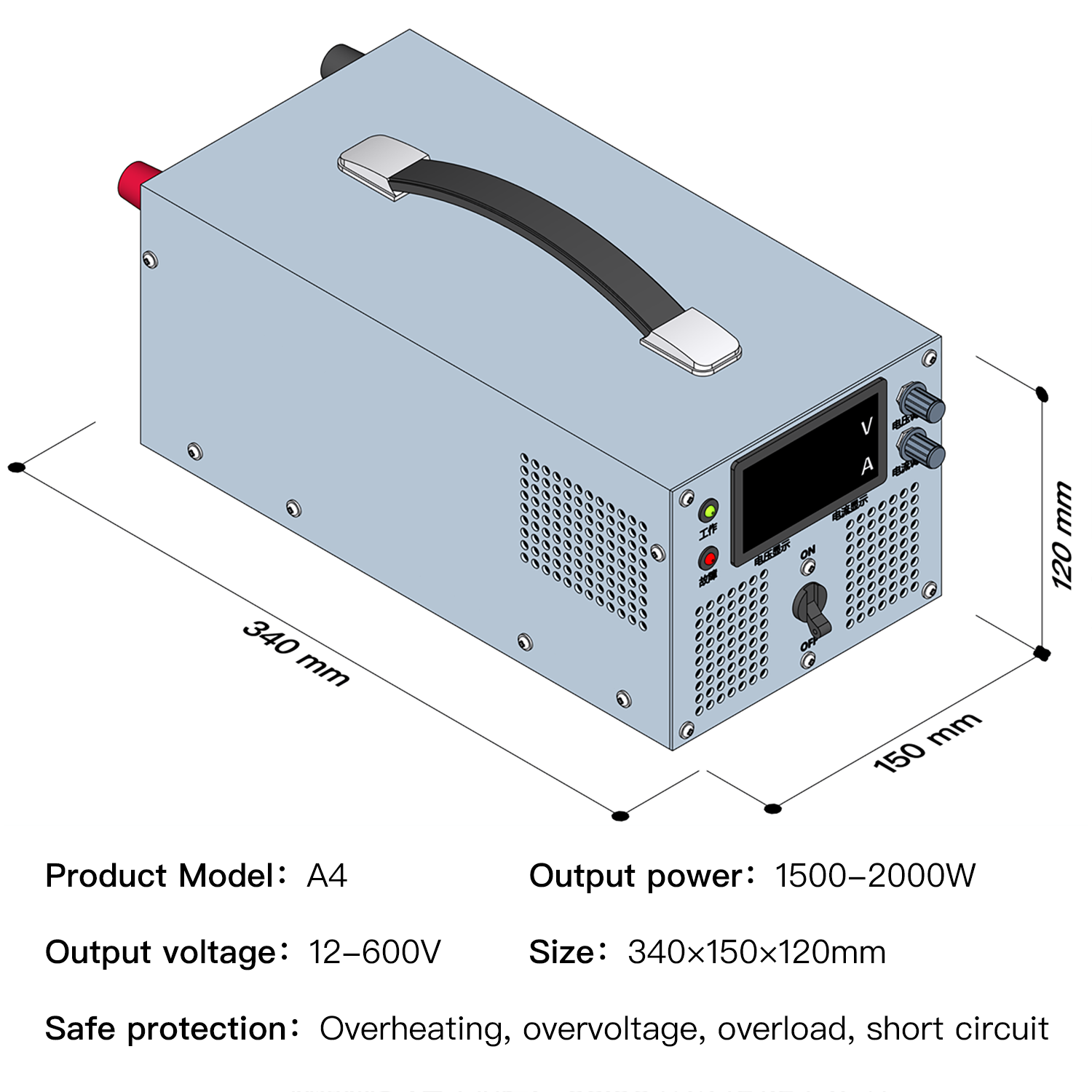

Efficiency ≥88-89% Carton Dimensions 435x235x215mm
Output Voltage Accuracy ±1%
Application Detail 1
Application Detail 2
Application Detail 3
Application Detail 4
Application Detail 5
Product Instructions
1
Before powering on, check the stored and transported switch power supply. Verify that there is no damage from transportation, such as loose screws, abnormal appearance, disconnected terminal wires, or dampness. Address any issues promptly.
2
The local power switch controls the auxiliary power inside the machine. For safety, please install an air switch at the power input terminal. Connect the ground wire and input power wire correctly according to the rear panel labels. Confirm the input voltage matches the manual specifications.
3
The cooling fan is temperature-controlled and will start automatically when the internal temperature exceeds the threshold. Fan speed changes depending on the output load, which is normal. Ensure the air inlets and outlets remain unobstructed.
4
If the internal temperature reaches the overheating threshold, the machine will shut down automatically for protection. It will resume operation once it cools down.
5
Avoid using the equipment in environments exceeding normal levels of dust, acid, corrosive gases, or severe vibration. Protect the unit from rain and direct sunlight.
6
Regular dust removal (using dry compressed air) can significantly extend the unit's lifespan. Do not open the casing to prevent damage to internal high-voltage components.
7
If idle for a long time, store the unit in a dry, ventilated room. If stored for over 6 months, power on the device and run it for at least 30 minutes.
8
Warning: Connect load equipment only after completing a successful power-on test without errors.
9
In case of malfunction, immediately cut off the power switch. Inspect external connections and screws. Do not attempt to repair or disassemble the casing without professional knowledge due to high-voltage hazards. Contact authorized technical support for resolution.
Frequently Asked Questions
Does the power supply include overvoltage, overcurrent, overheating, or short circuit protection?
Yes, all of these safety protection mechanisms are integrated into the device.
Can this power supply operate at full power continuously?
No, it is recommended to maintain excess capacity. Operating below 80% load capacity is recommended for continuous, long-term use.
How easy is it to adjust the voltage and current?
The output is highly convenient to regulate, utilizing dual dedicated knobs for adjustments.
Is this high-power power supply isolated?
Yes, our systems are designed as fully isolated power supplies.
What is the minimum voltage regulation starting point?
The voltage regulation range starts from 1V.
Is reverse polarity protection available?
Reverse protection can be integrated as an optional feature.
