Voltmat Power
Voltmat Power
| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20%~88% |
| Power Rating | 1800W | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields |
| Input Voltage | 220V±10%, 50-60HZ / 110V±10%, 50-60HZ | Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |

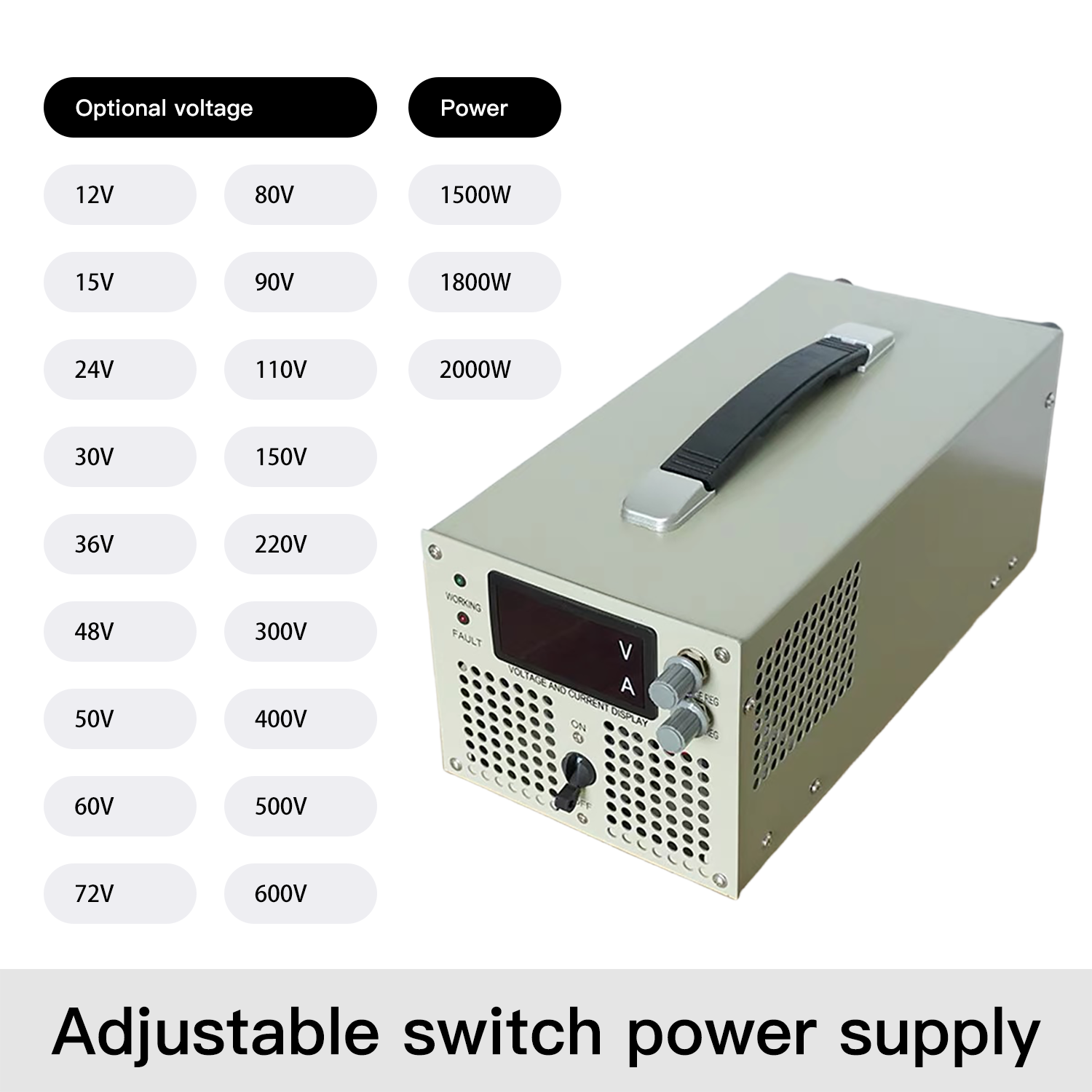

| Output Voltage | 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V | Product Features | High stability, high reliability |
| Output Current | Selected power / selected voltage | Warranty Period | 1 Year |
| Power Conversion Type | AC-DC | Product Weight | Approximately 5KG |

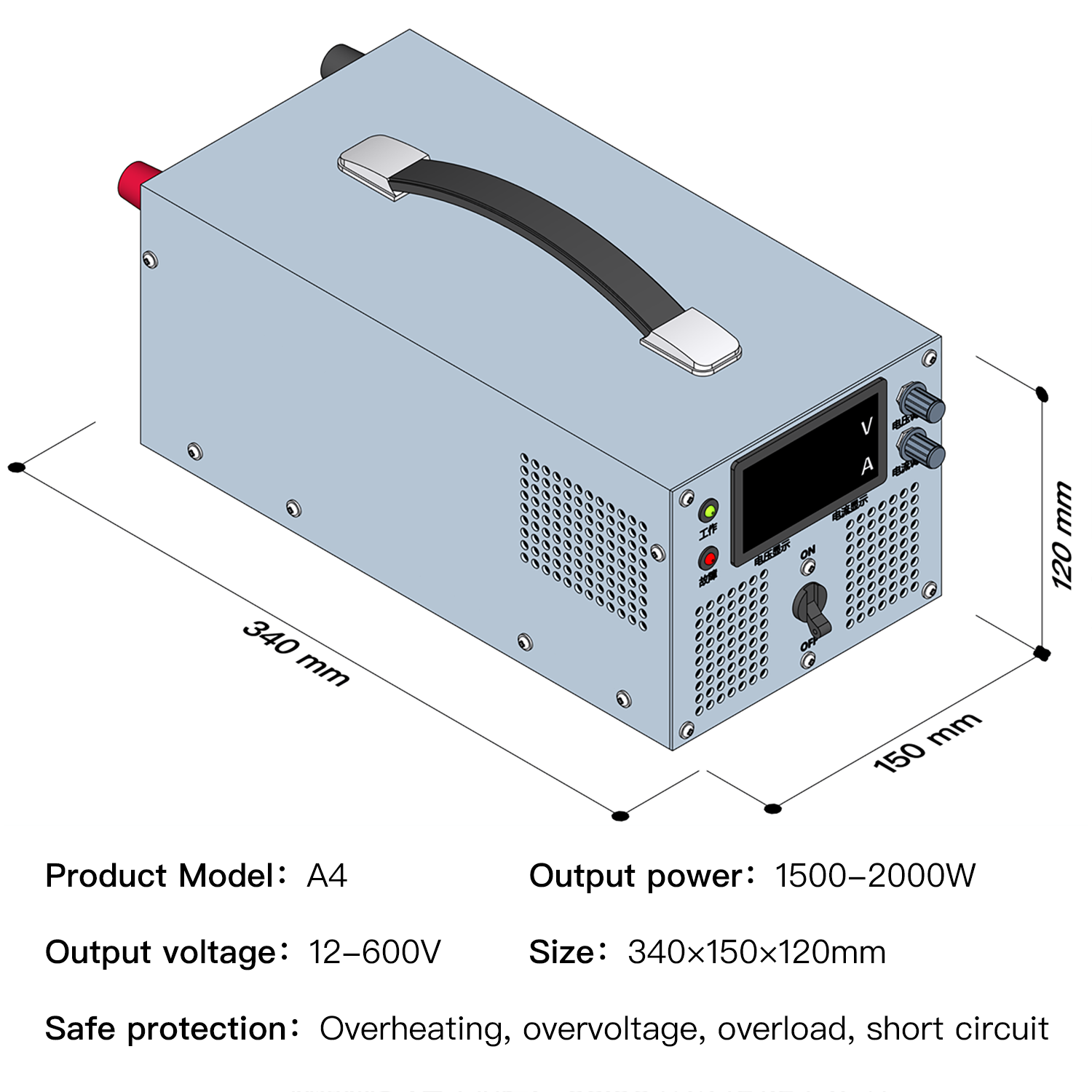

| Efficiency | ＞88-89% | Carton Dimensions | 435x235x215mm |
| Output Voltage Accuracy | ±1% | - | - |
Before powering on, check the stored and transported switch power supply. Check for damage during transportation, such as whether the screws are loose, whether the appearance is abnormal, whether the power cord and terminal are shaken off, and whether they are damp. If any of these occur, they should be dealt with in a timely manner.
The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel to confirm correct connection. Pay attention to whether the connected input voltage is consistent with the voltage indicated in the manual.
The cooling fan is temperature controlled. When the temperature inside the machine exceeds the starting control point, the fan will start. The fan speed varies with the output voltage and current. When working, make sure the inlet and outlet of the fan are not blocked.
When the temperature inside the machine reaches the threshold for overheating shutdown, the machine will automatically stop working to ensure that it is not damaged. When the temperature drops slightly, it will automatically resume operation.
When using this equipment, ensure that dust, acid, corrosive gases, or substances in the air do not exceed normal levels. Severe vibration, bumps, rain, and direct sunlight should be avoided.
Regularly carry out dust removal work to improve the service life and reliability of the power equipment. Dry compressed air can be used for dust removal. Note: Do not open the casing without authorization due to internal high voltage, and be careful not to damage internal components.
When the power equipment is idle for a long time, store it in a dry and ventilated room. If stored for more than 6 months, the equipment should be powered on and operated for more than half an hour.
Warning: Only connect to the powered load equipment when the power-on test is normal and error-free.
Handling of malfunctions and problems: If abnormal operation is found, cut off the power switch immediately. Check internal and external connections, screws, switches, and knobs for correctness. Do not unscrew the screws or remove the casing without authorization due to high voltage risks inside the machine.
Yes, comprehensive protections are built-in.
Yes, this feature can be customized and added upon request.
No, the power supply needs to be operated with excess capacity. Long-term use is recommended at loads below 80% capacity.
Yes, it is highly convenient. Both voltage and current can be adjusted easily via dual knobs.
Yes, it is a fully isolated power supply design.
The voltage regulation starts from 1V.
