Output 60V-500W DC Adjustable Switching Power Supply Industrial High Efficiency Safe Stable Single Output 1 Year Warranty

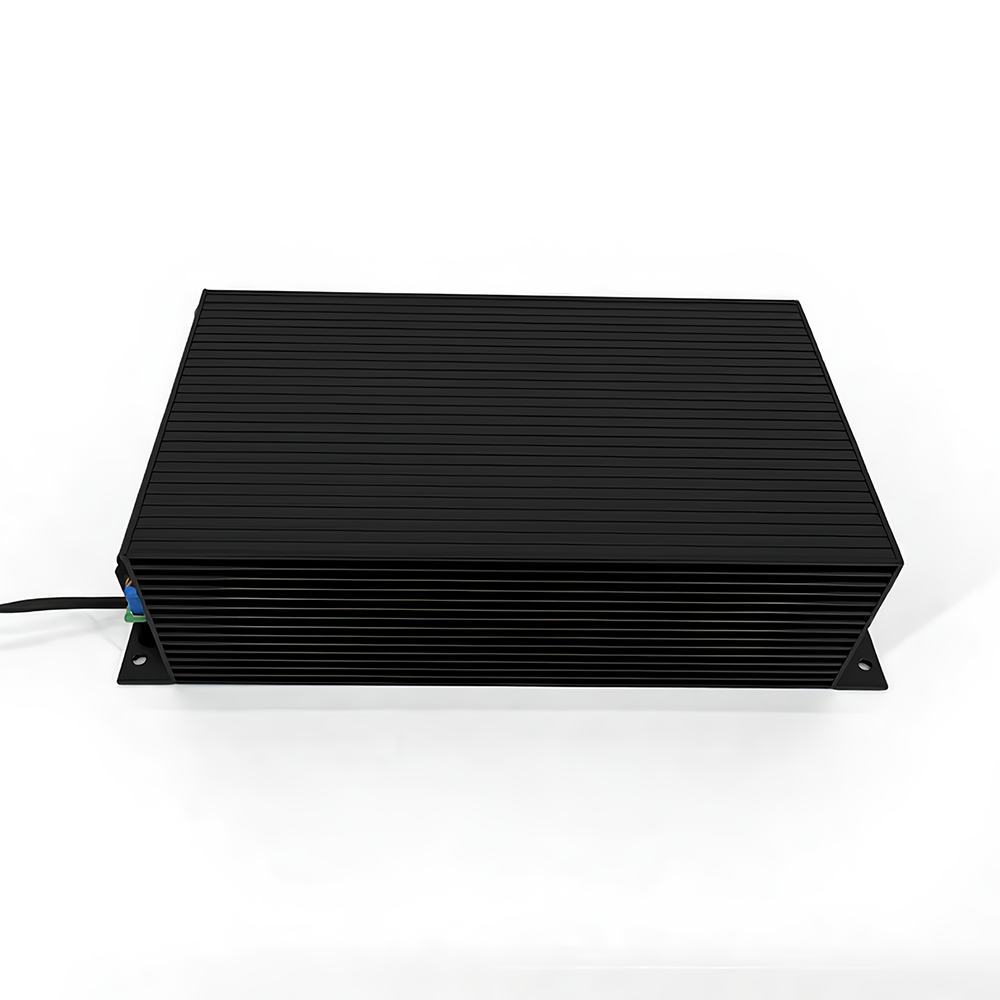

DC Switching Power Supply Product Diagram

Product Overview

Product Name: DC Switching Power Supply

Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.

Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection

Features: High stability and reliability

Warranty: 1 year

Weight: Approximately 1.5KG

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	500W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields
Input Voltage	Single-phase 220V±10% 50-60HZ / 110V±10% 50-60HZ	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 1.5 KG

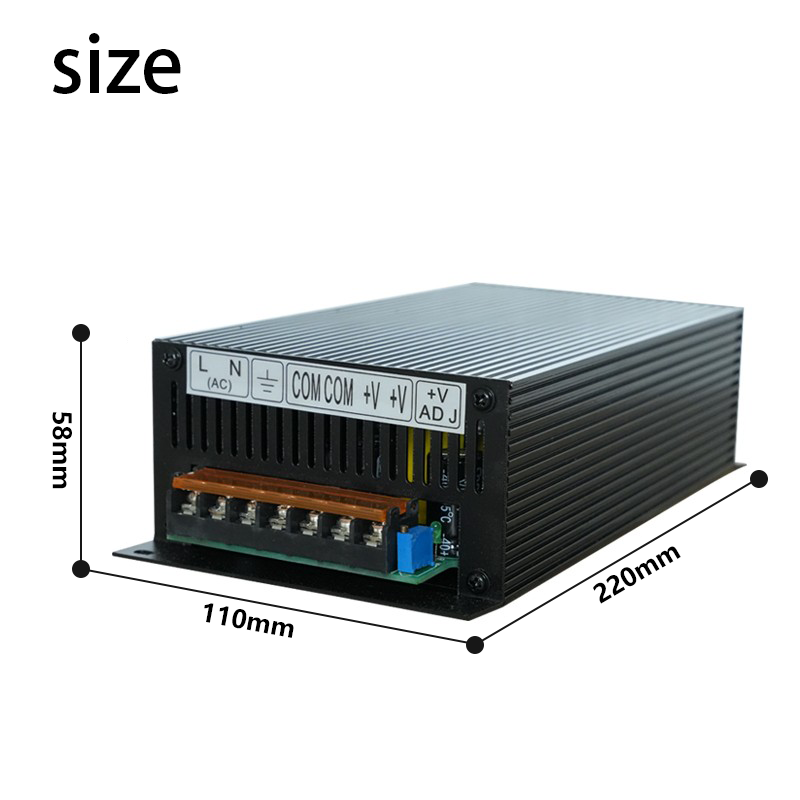

Efficiency	> 88-89%	Carton Dimensions	255 × 125 × 65 mm
Output Voltage Accuracy	±1%

Product Instructions

1 Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, shaken power cords or terminals, and dampness. Address any issues promptly.

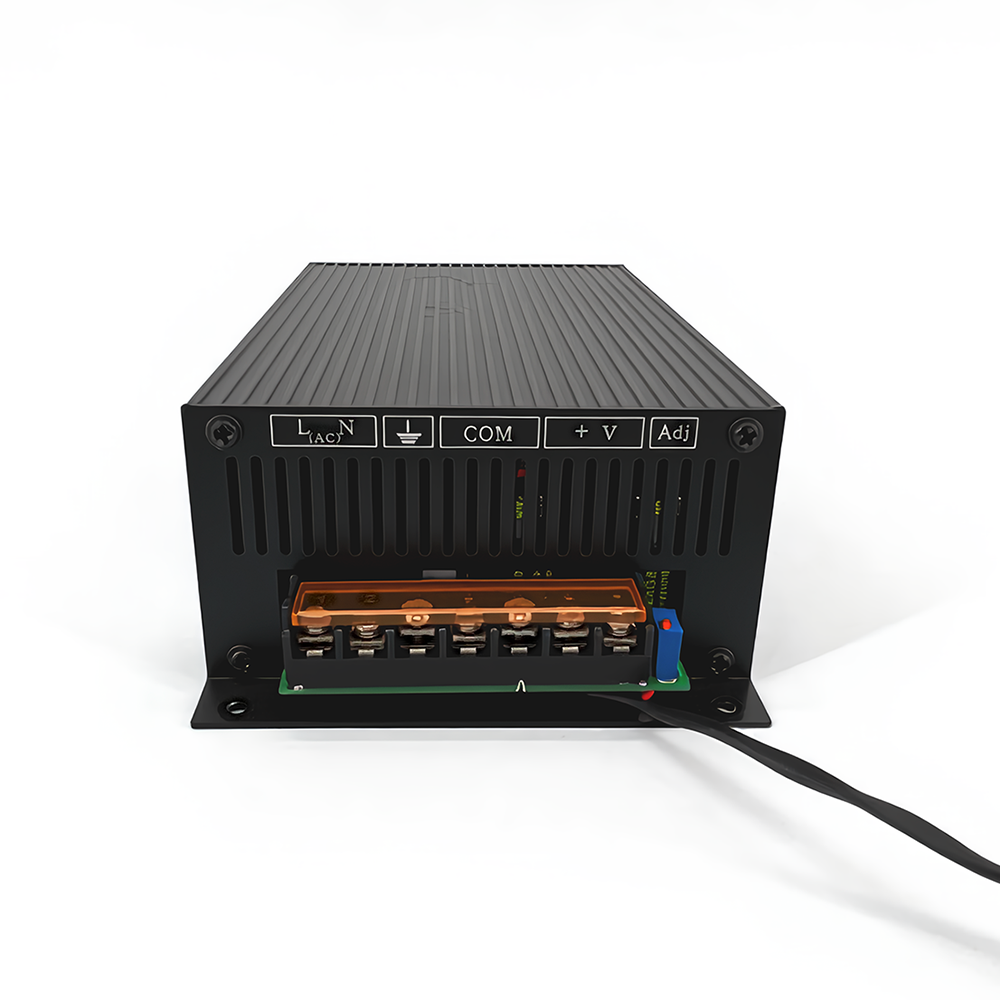

2 The local power switch controls the internal auxiliary power supply. For safety, please install an air switch at the power input terminal. Connect the ground wire and input power wire correctly according to the back panel labels. Ensure the input voltage matches the manual specifications.
3 The cooling fan is temperature-controlled and starts automatically when the internal temperature reaches the threshold. The speed varies with load current and output voltage. Do not block the fan inlet or outlet.
4 If the internal temperature reaches the shutdown threshold, the machine will stop automatically to prevent damage. It will resume operation automatically once the temperature cools down.
5 Ensure the operating environment contains normal levels of dust, acid, or corrosive gases. Avoid severe vibration, physical impact, rain, and direct sunlight.
6 Regularly perform dust removal (using dry compressed air) to improve service life and reliability. Do not open the casing to prevent damage to internal high-voltage components.
7 Store the unit in a dry, ventilated room when idle. If stored for over 6 months, power on the device and run it for at least 30 minutes to maintain performance.
8 Warning: Only connect your load equipment to the power supply after ensuring the power-on test is normal and error-free.
9 Troubleshooting: If abnormal operation occurs, switch off the power supply immediately. Check all external and internal connections for looseness and verify knob positions. Do not disassemble the casing yourself due to internal high voltage. Seek professional support promptly to resolve issues.

Frequently Asked Questions (FAQ)

Is there overvoltage, overcurrent, overheating, or short circuit protection?

Yes, the power supply features built-in protection mechanisms for overcurrent, overvoltage, overheating, and short-circuits.

Is there reverse polarity protection?

Yes, reverse protection functionality can be added as a custom option upon request.

Can it be operated at full power continuously for a long time?

No, we recommend configuring the power supply with excess capacity. To ensure longevity, the continuous load should remain below 80% capacity.

How easy is it to adjust the voltage and current settings?

It is very convenient. The system is equipped with dual knobs for smooth and straightforward adjustments of both voltage and current.

Is this high-power power supply isolated?

Yes, our systems are built as fully isolated power supplies to ensure safety and system stability.

What is the starting voltage regulation range?

The regulation starting voltage for this switching power supply begins at 1V.
