Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
Features: High stability and reliability
Warranty: 1 year
Weight: Approximately 5KG

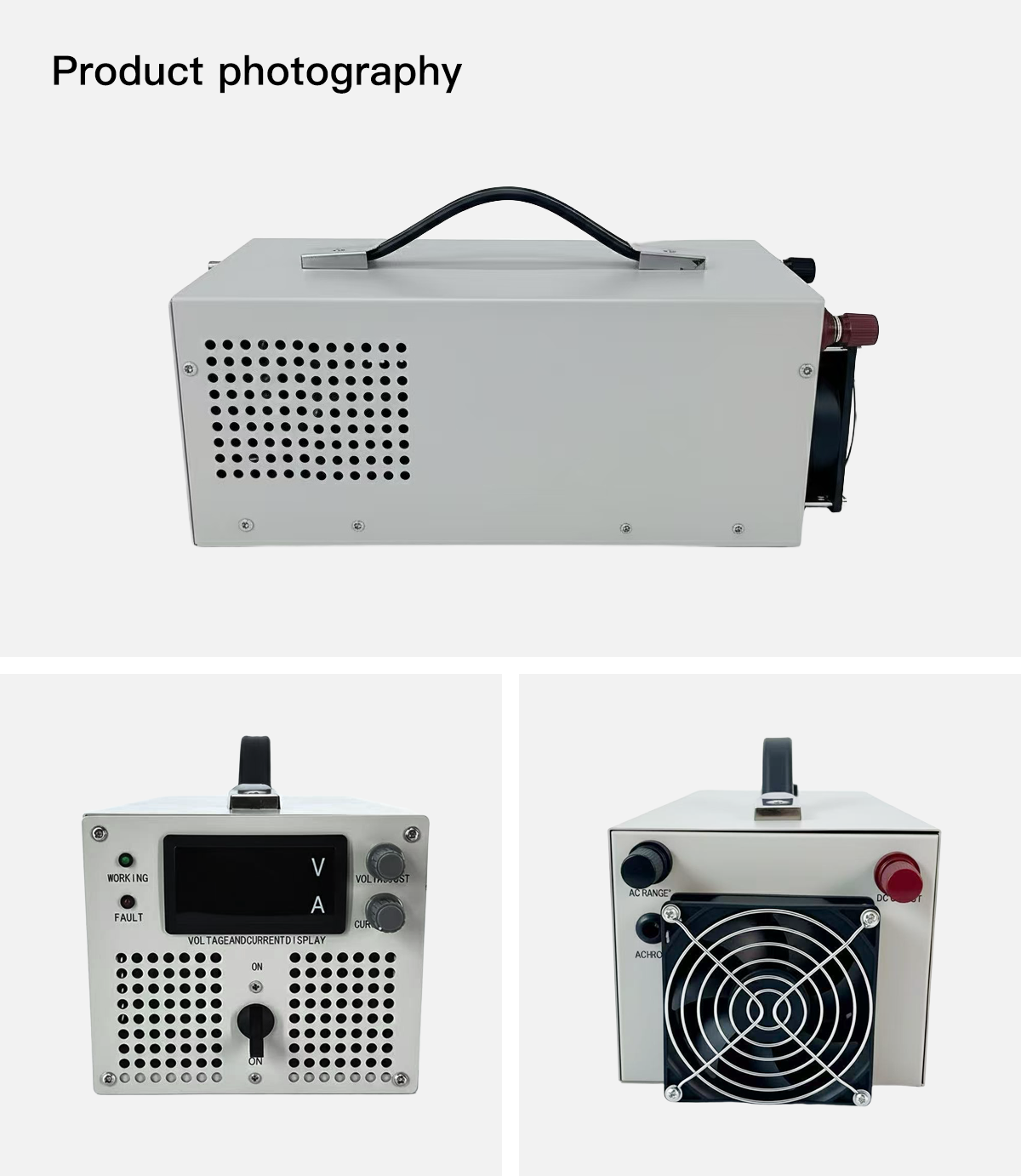

Product Detail Views
Technical Specifications
Product Name
DC Switching Power Supply
Operating Relative Humidity
20%~88%
Power Rating
1800W
Application Scenarios
Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields
Before powering on, check the stored and transported switch power supply. Check for damage during transportation, such as whether screws are loose, whether the appearance is abnormal, whether the power cord and terminal are shaken off, and whether they are damp. If any issues are found, handle them in a timely manner.
2
The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel. Confirm the input power voltage is consistent with the voltage indicated in the manual.
3

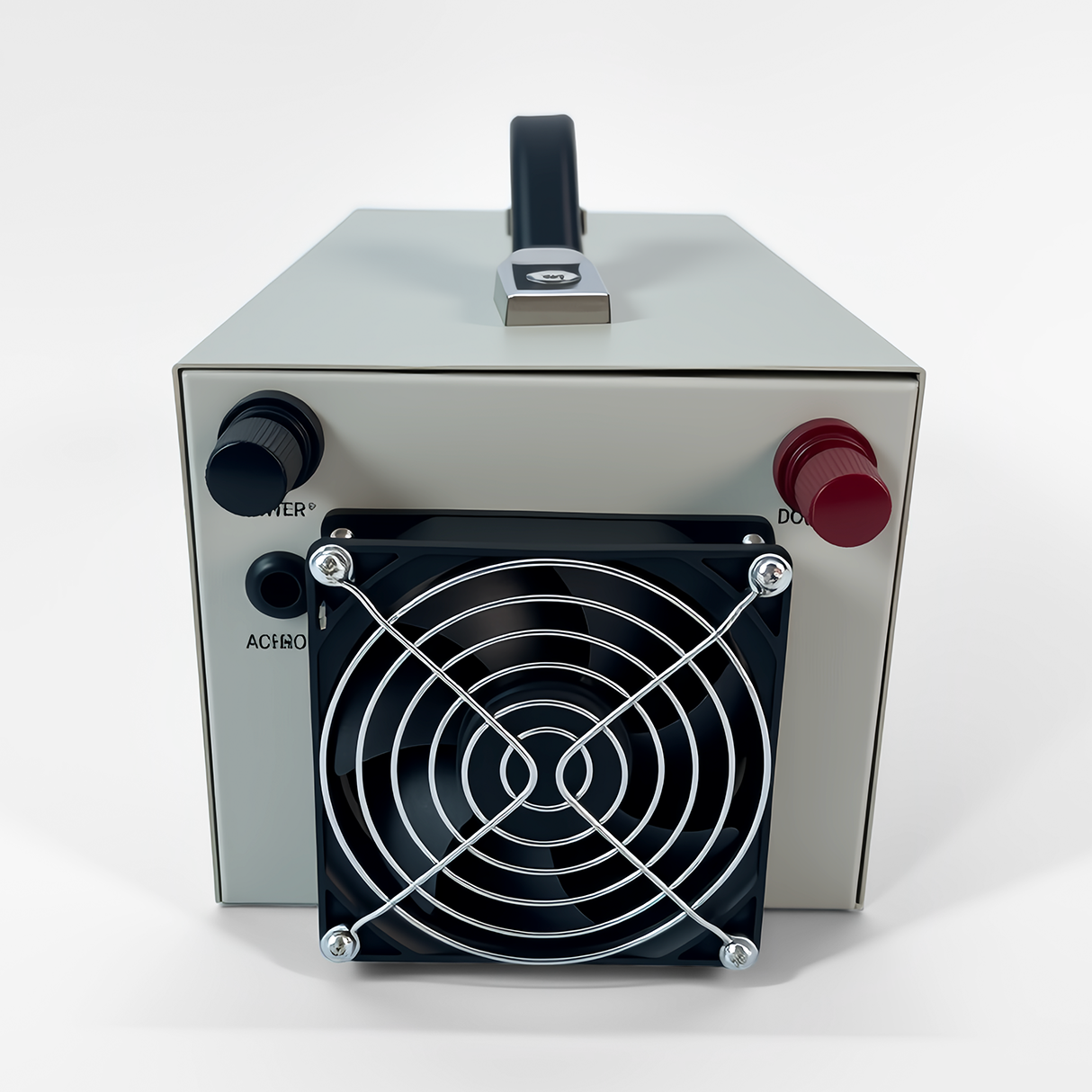

The cooling fan is temperature controlled. The fan starts automatically when the internal temperature exceeds the starting threshold. Speed varies based on the output voltage and current. Keep the inlet and outlet of the fan clear.
4
When the internal temperature reaches the threshold for overheating protection, the machine will shut down automatically to prevent damage. It will resume operation automatically once the temperature drops.
5
Avoid using the equipment in environments with excessive dust, acid, corrosive gases or substances. Prevent severe vibrations, shocks, rain, and direct sunlight.
6
Regular dust removal (using dry compressed air) can greatly improve service life and reliability. Due to internal high voltage, do not open the casing to avoid damaging components.
7
If stored idle for over 6 months, store in a dry, ventilated room and power on for more than half an hour before use.
8
Warning: Connect to the powered load equipment only when the power-on test is normal and error-free.
9
Handling of malfunctions: If abnormal operation is found, cut off the power switch immediately. Check internal and external connections, screws, switches, and knobs. Do not unscrew the casing or attempt to repair it yourself without professional knowledge and equipment due to high voltage.
Frequently Asked Questions
Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply includes comprehensive built-in overcurrent, overvoltage, overheating, and short-circuit protection.
Can it be used at full power for a long time?
No, the power supply needs to be used with excess capacity. For continuous, long-term operation, we recommend keeping the load below 80% of capacity.
Is it convenient to adjust the voltage and current?

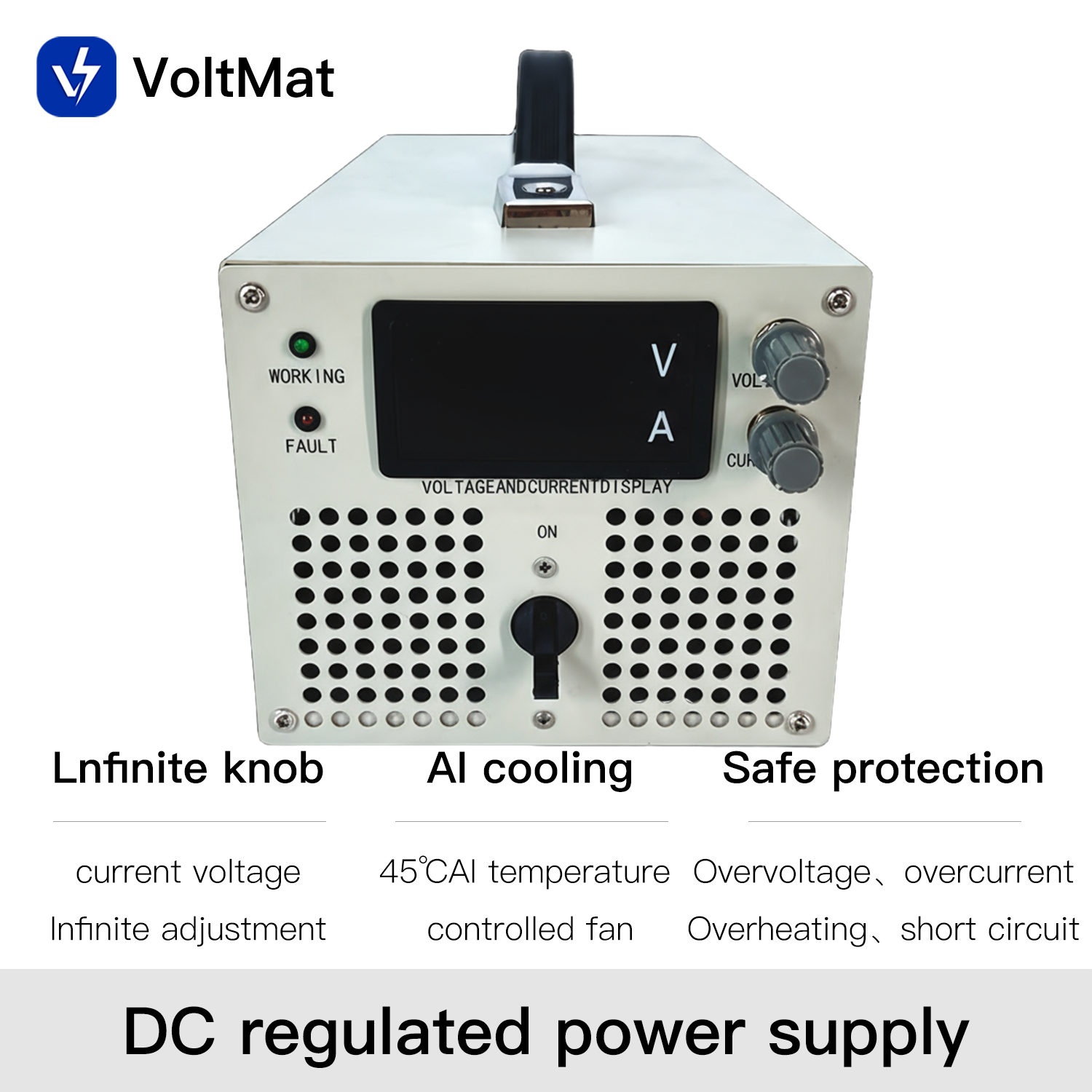

Yes, it is highly convenient. Both voltage and current can be easily adjusted using the dual knobs on the unit.
Is the high-power power supply isolated?
Yes, our high-power power supplies are designed as fully isolated units.
What is the voltage regulation range?
The voltage regulation range starts from 1V.
Is the power supply sufficient?
Yes, our power supply units are built to provide sufficient, rated output power.
