| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20%~88% |
| Power Rating | 2000W | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields |
| Input Voltage | 220V±10% / 110V±10%, 50-60HZ | Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |

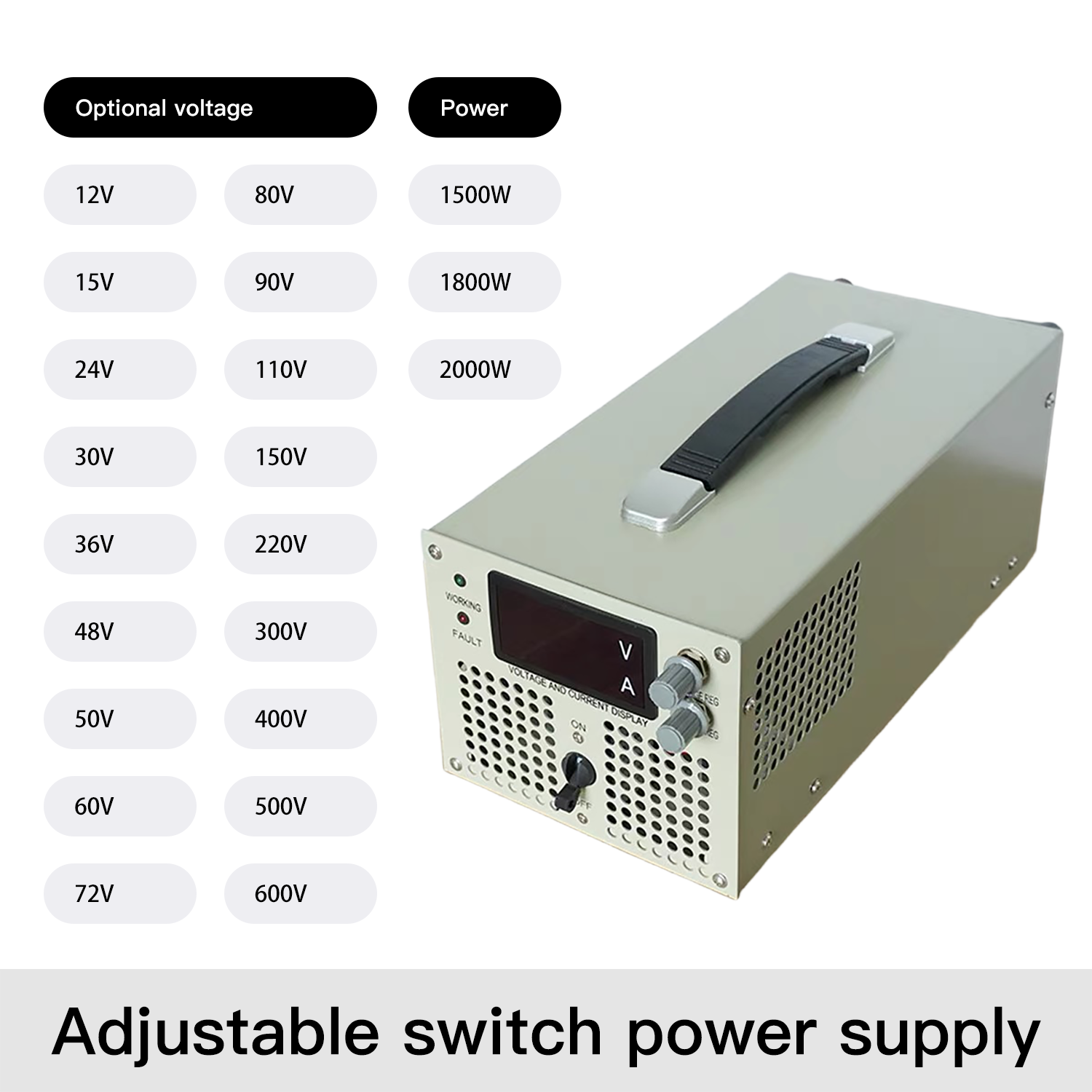

| Output Voltage | 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V | Product Features | High stability, high reliability |
| Output Current | Selected power / Selected voltage | Warranty Period | 1 Year |
| Power Conversion Type | AC-DC | Product Weight | Approximately 5KG |

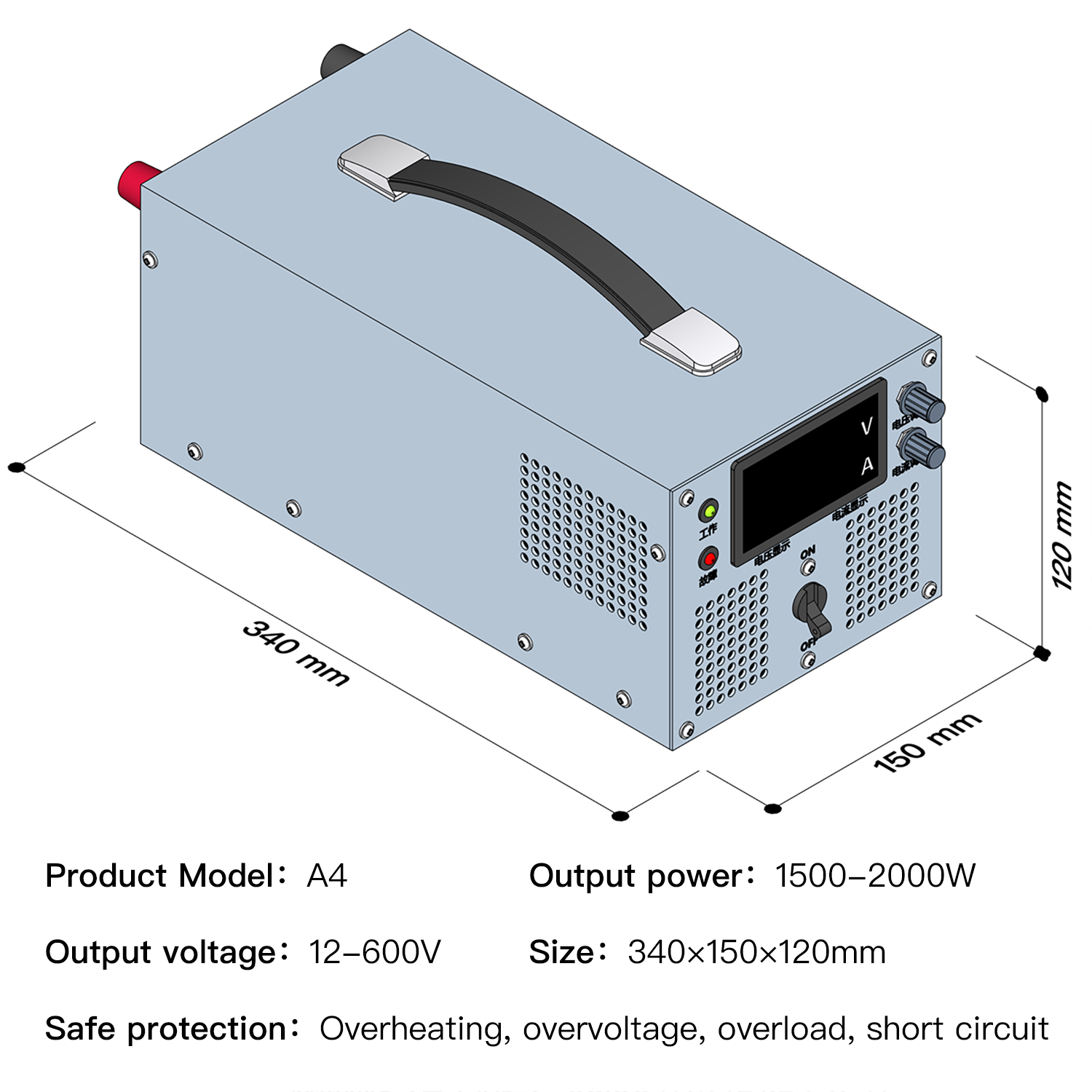

| Efficiency | >88-89% | Carton Dimensions | 435x235x215mm |
| Output Voltage Accuracy | ±1% | - | - |
Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, shaken power cords or terminals, and dampness. Handle promptly if any of these conditions are met.
The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel. Confirm the input power supply matches the voltage indicated in the manual.
The cooling fan is temperature controlled. The fan starts automatically when the internal temperature exceeds the threshold. The speed varies based on output voltage and current. Keep the air inlets and outlets completely clear during operation.
When the internal temperature reaches the threshold for overheating shutdown, the machine will stop automatically to prevent damage. Once the temperature drops, it will automatically resume operation.
Avoid environments with high dust, acid, corrosive gases, severe vibrations, bumps, rain, or direct sunlight to maintain optimal equipment lifespan.
Regular dust removal using dry compressed air is highly recommended. Because of high internal voltages, do not open the casing and take care not to damage internal components.
When stored idle for long periods, keep the unit in a dry, ventilated room. If stored for over 6 months, power on the equipment and let it run for at least 30 minutes.
Warning: Only connect to the powered load equipment after the power-on test is normal and free of errors.
In case of malfunction, immediately cut off the power switch. Check the internal and external connections for correctness and ensure screws are tightened. Do not open the casing or attempt self-repair if you lack professional knowledge and equipment. Please notify the support team promptly to resolve the issue.
Yes, the system is fully equipped with comprehensive protection mechanisms including overcurrent, overvoltage, overheat, and short circuit protection.
Yes, reverse protection can be configured as an optional feature with custom requirements.
For continuous long-term operations, it is recommended to keep load levels below 80% capacity to ensure optimal durability and performance.

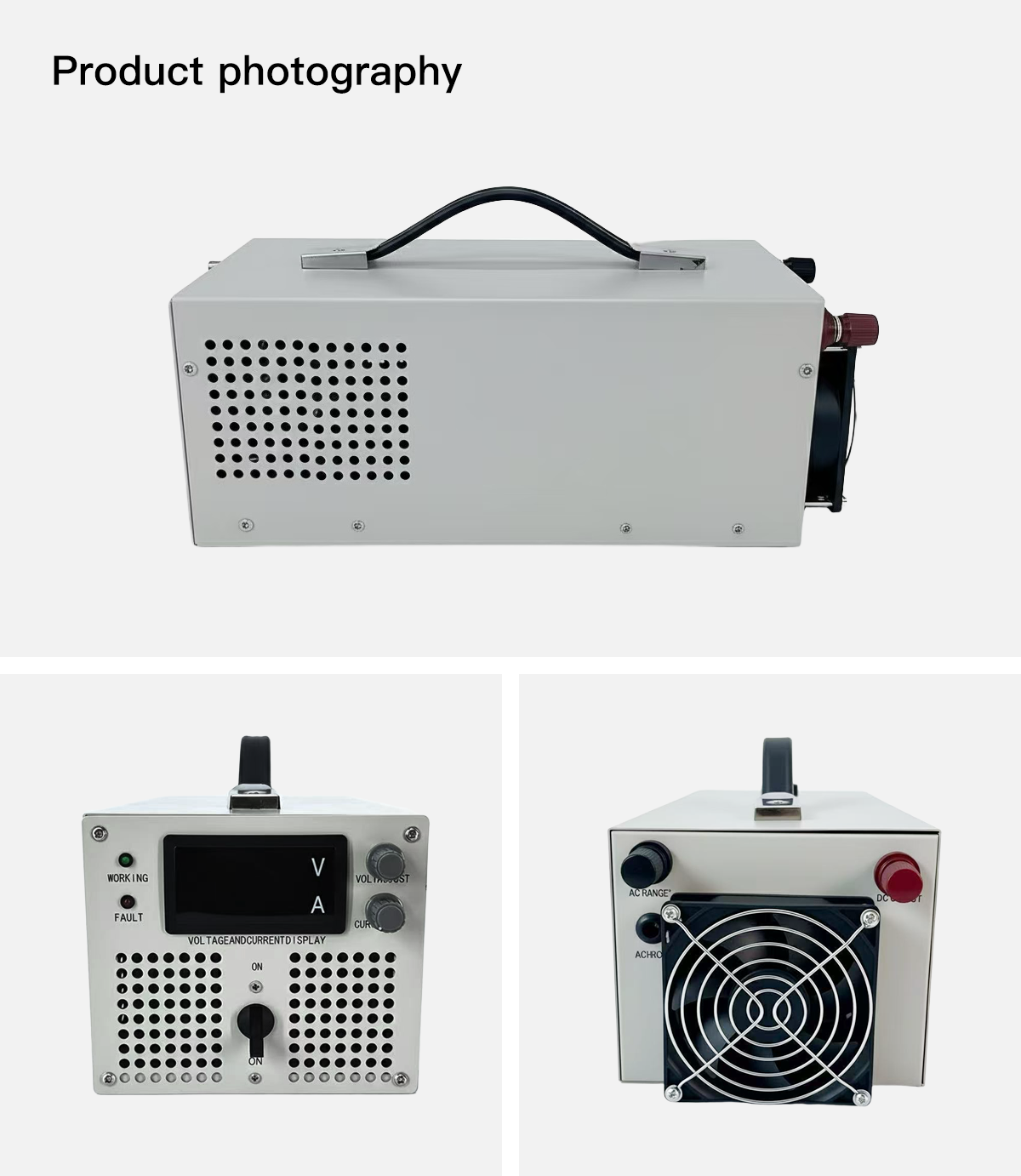

It is very convenient and intuitive; both voltage and current can be adjusted manually using the dual knobs on the panel.
Yes, all our high-power power supplies utilize fully isolated designs for safe operation.
The output voltage starts and regulates from 1V upward.
