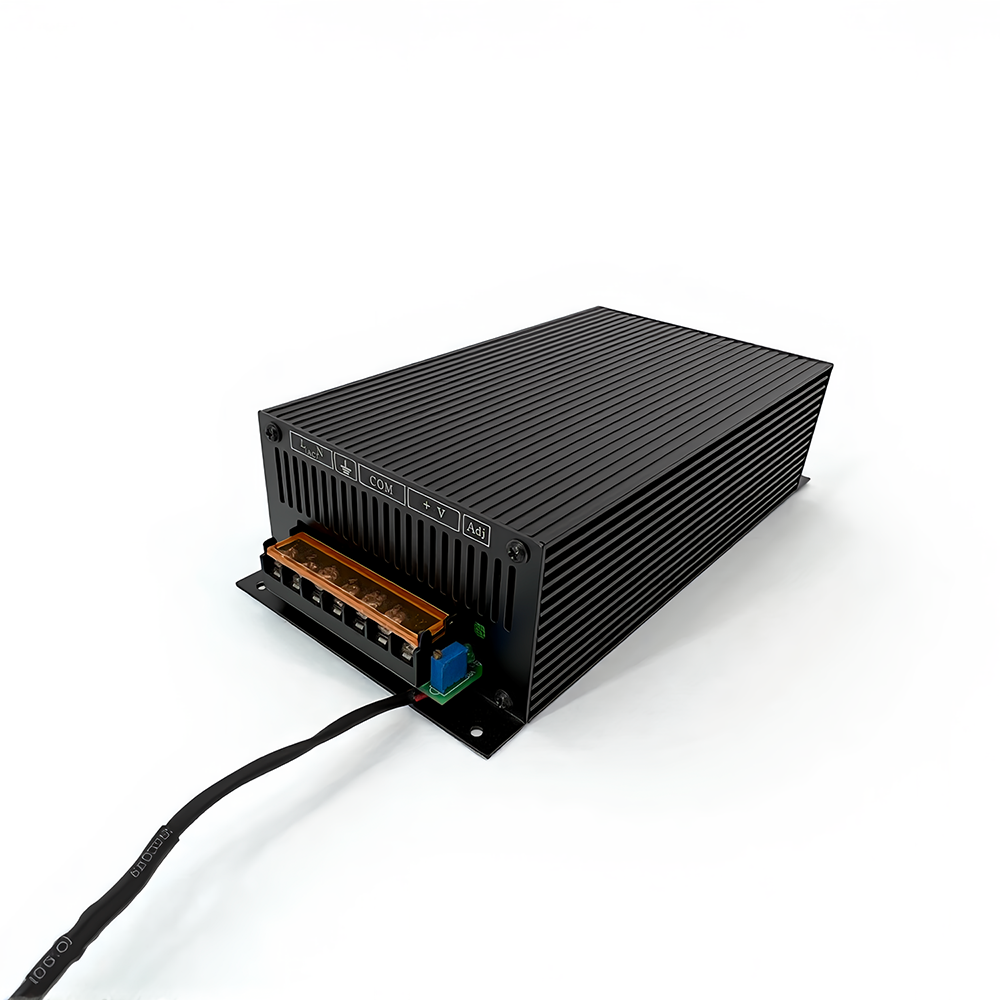

Industrial 36V-400W High Security Adjustable DC Regulated AC-DC Power Supply Single Output High Efficiency

DC Switching Power Supply

Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
Features: High stability and reliability
Warranty: 1 Year
Weight: Approximately 1.5KG

Product Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	400W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Single-phase 220V±10% 50-60HZ / 110V±10% 50-60HZ	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 1.5 KG

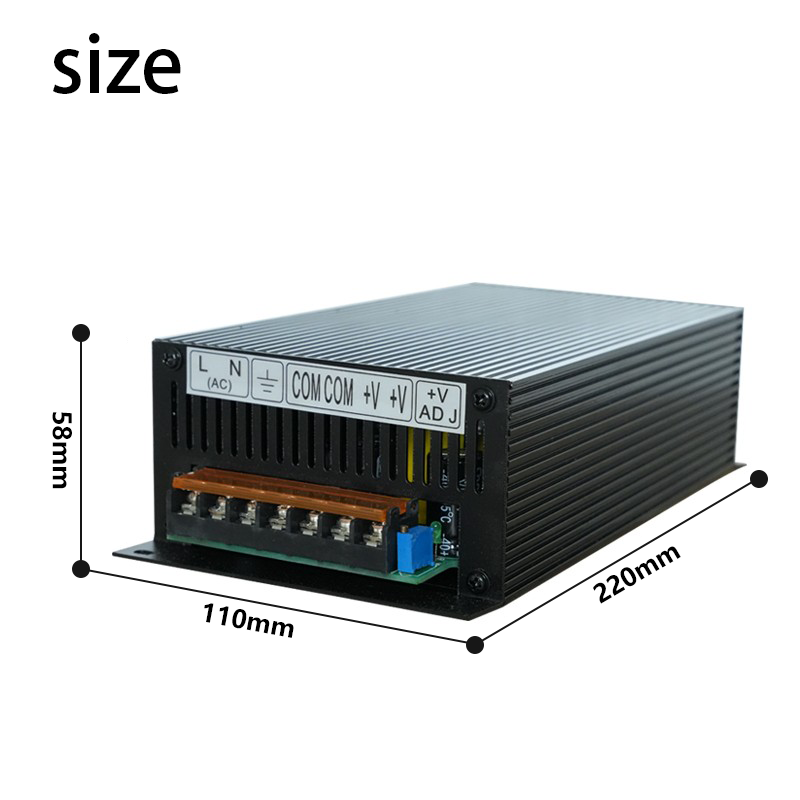

Efficiency	>88-89%	Carton Dimensions	255×125×65 mm
Output Voltage Accuracy	±1%	-	-

Product Instructions

1
Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as whether the screws are loose, the appearance is abnormal, the power cord and terminals are shaken off, or if they are damp. If any such phenomenon is observed, it should be addressed in a timely manner.
2

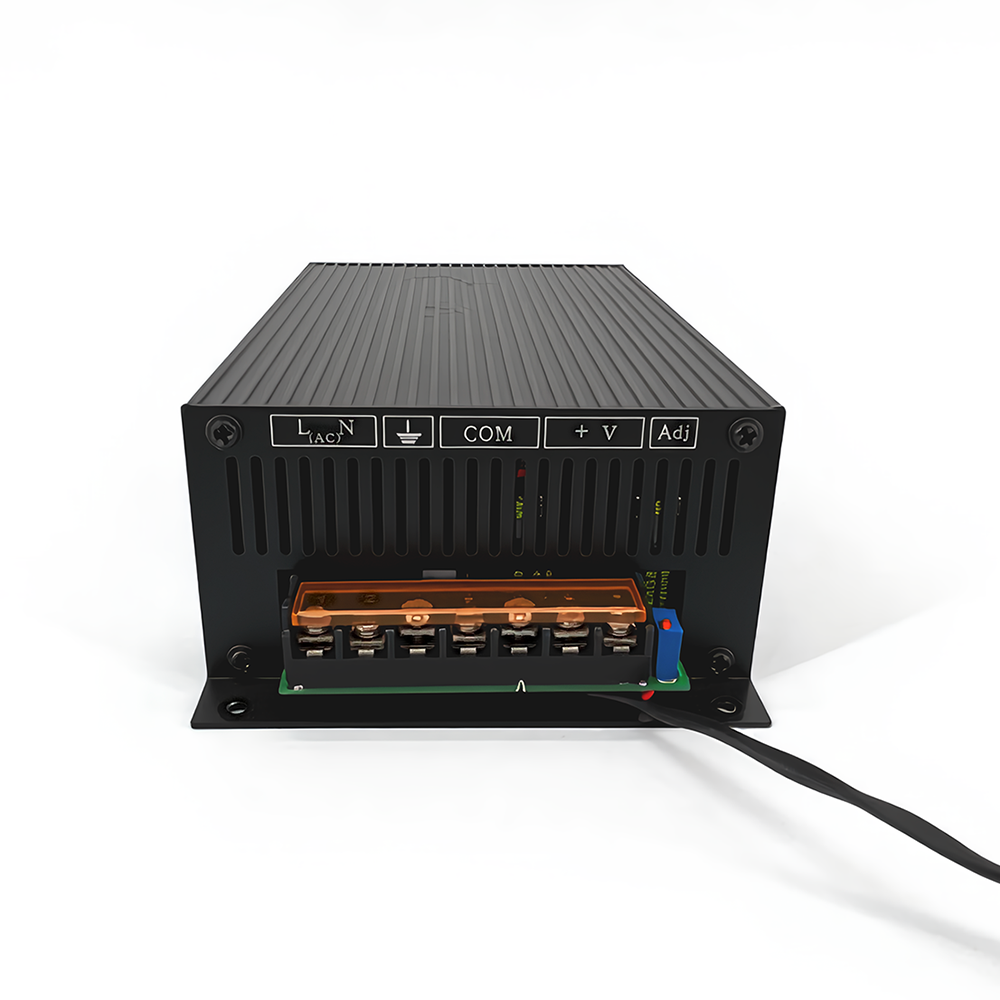

The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel to confirm correct connection. Pay attention to whether the connected input power voltage is consistent with the voltage indicated in the manual.
3

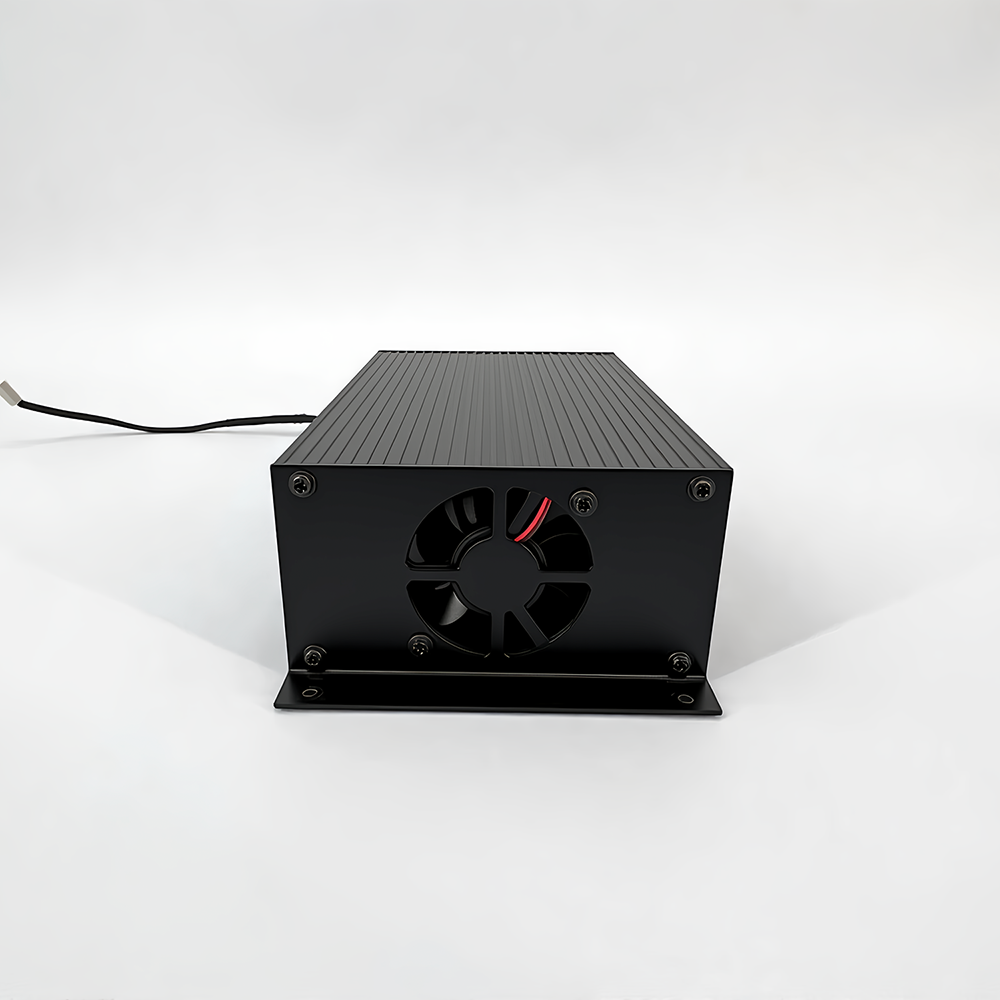

The cooling fan is temperature controlled. When the internal temperature of the machine exceeds the starting temperature control point, the fan will start automatically. The fan speed varies with the output voltage and current, which is normal. When operating, please ensure the inlet and outlet of the fan are not blocked.
4
When the internal temperature of the machine reaches the threshold for overheating shutdown, the machine will automatically stop working to prevent damage. Once the temperature drops slightly, it will automatically restart and resume operation.
5
When operating power equipment, the level of dust, acid, corrosive gases, or other substances in the air should not exceed normal levels. Severe vibration, bumps, rain, and direct sunlight should be avoided as much as possible.
6
It is recommended to carry out dust removal work regularly, which can greatly improve the service life and reliability of power equipment. Dry compressed air can be used for dust removal. (Caution: high voltage exists inside. Do not open the casing or damage internal components).
7
When the power equipment is idle for a long time, it should be stored in a dry and ventilated room. If the storage time exceeds 6 months, the power equipment should be powered on and operated for more than half an hour.
8
Warning: Only connect to the powered load equipment when the power-on test is normal and error-free.
9
Handling of malfunctions and problems: If abnormal operation is observed after turning on the machine, immediately cut off the power switch of the stabilized power supply. Carefully check that the internal and external connections are correct and secure, and make sure all switches and knobs are in the correct position. If the problem persists, do not unscrew the screws or remove the casing without authorization. Due to high voltage hazards inside, do not attempt to repair it yourself without professional knowledge and equipment. Please notify professional technical support promptly to resolve the issue.

Frequently Asked Questions

Is there overvoltage, overcurrent, overheating, or short circuit protection?

Yes, full protection functions (overvoltage, overcurrent, overheating, and short-circuit protection) are built into the power supply.

Is there reverse protection?

Reverse protection can be added as a customized option upon request.

Can it be used at full power for a long time?

No, the power supply needs to be operated with excess capacity. Continuous operation is recommended below 80% of the maximum capacity.

Is it convenient to adjust the voltage and current?

Yes, it is very convenient. Both the voltage and current can be easily adjusted using the dual knobs on the control panel.

Is the high-power power supply isolated?

Yes, our high-power power supplies are designed as fully isolated units.

What is the voltage regulation range?

The voltage regulation range starts from 1V up to the maximum rated voltage.
