| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20%~88% |
| Power Rating | 1500W | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc. |
| Input Voltage | 220V±10% (50-60Hz) / 110V±10% (50-60Hz) | Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |
| Output Voltage | 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V | Product Features | High stability, high reliability |
| Output Current | Selected power / selected voltage | Warranty Period | 1 Year |
| Power Conversion Type | AC-DC | Product Weight | Approximately 5KG |
| Efficiency | ≥ 88-89% | Carton Dimensions | 435 x 235 x 215 mm |
| Output Voltage Accuracy | ±1% | Cooling Method | Temperature-controlled cooling fan |
Before powering on, inspect the device for transit damage, check for loose screws, terminal shakes, dampness, or structural abnormalities, and resolve them before use.
For safety, add an external air switch to control the power input. Ensure proper grounding and verify that the input voltage matches the manual specifications.
The cooling fan is temperature controlled and will adjust speed dynamically. Do not block the fan inlet and outlet. The system will automatically shut down if it overheats.
Operate in environments free from extreme dust, acid, corrosive substances, severe vibrations, rain, or direct sunlight to maintain long-term product health.
Perform regular dust removal using dry compressed air to extend the service life. Never open the casing without professional supervision as high voltages exist inside.
Store in a dry, ventilated room if idle. If stored for over 6 months, power on the device and run it for at least 30 minutes to maintain component integrity.

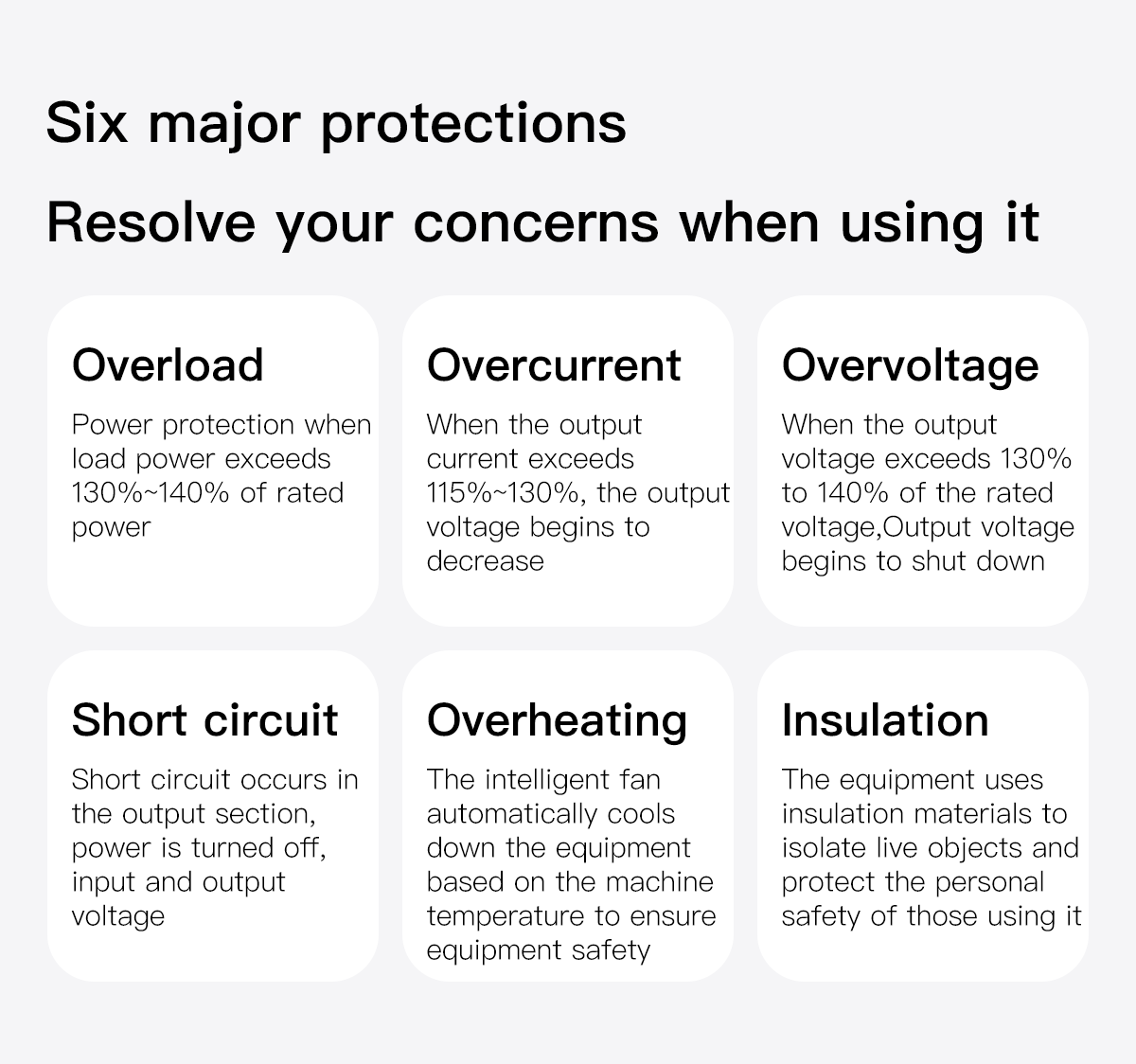

Yes, the power supply has comprehensive built-in protection mechanisms for overvoltage, overcurrent, overheating, and short circuits.
No. It is recommended to use the power supply with excess capacity. Power loads below 80% of capacity can be run safely for extended periods.
Yes, both voltage and current can be adjusted quickly and conveniently using the dual control knobs.
Yes, all of our high-power power supplies are designed as fully isolated power supplies.
The voltage regulation range starts dynamically from 1V.
Yes, reverse protection functions can be integrated and customized upon request.
