Voltage Regulator 24000W Adjustable Switching Power Supply With High Precision 24V-1000V Options

Product Overview

Product Name: DC Switching Power Supply
Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
Features: High stability and reliability
Warranty: 1 year
Weight: Approximately 45KG

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	24000W	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Single-phase/Three-phase 220V±10% 50-60HZ, 110V±10% 50-60HZ, 380V±10% 50-60HZ	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage	12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V	Product Features	High stability, high reliability
Output Current	Selected power / selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 45KG
Efficiency	≥88-89%	Carton Dimensions	770x400x840mm
Output Voltage Accuracy	±1%

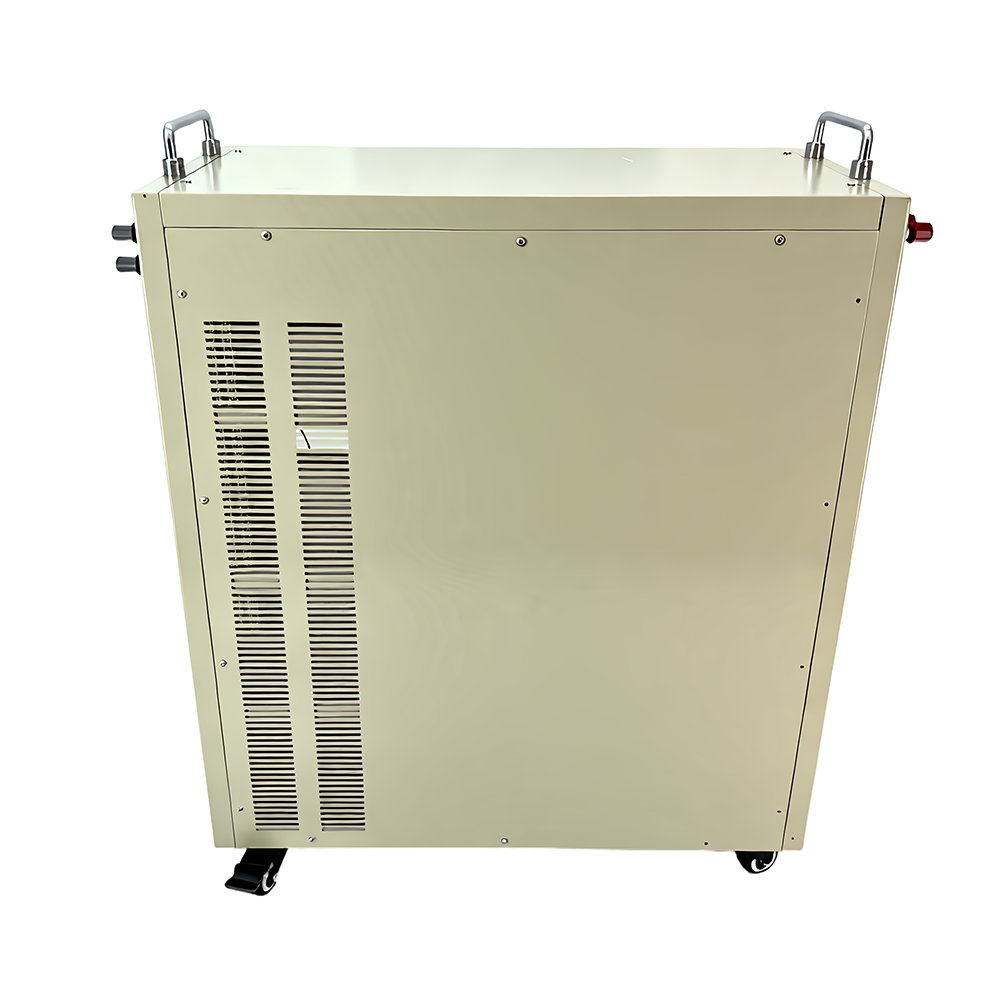

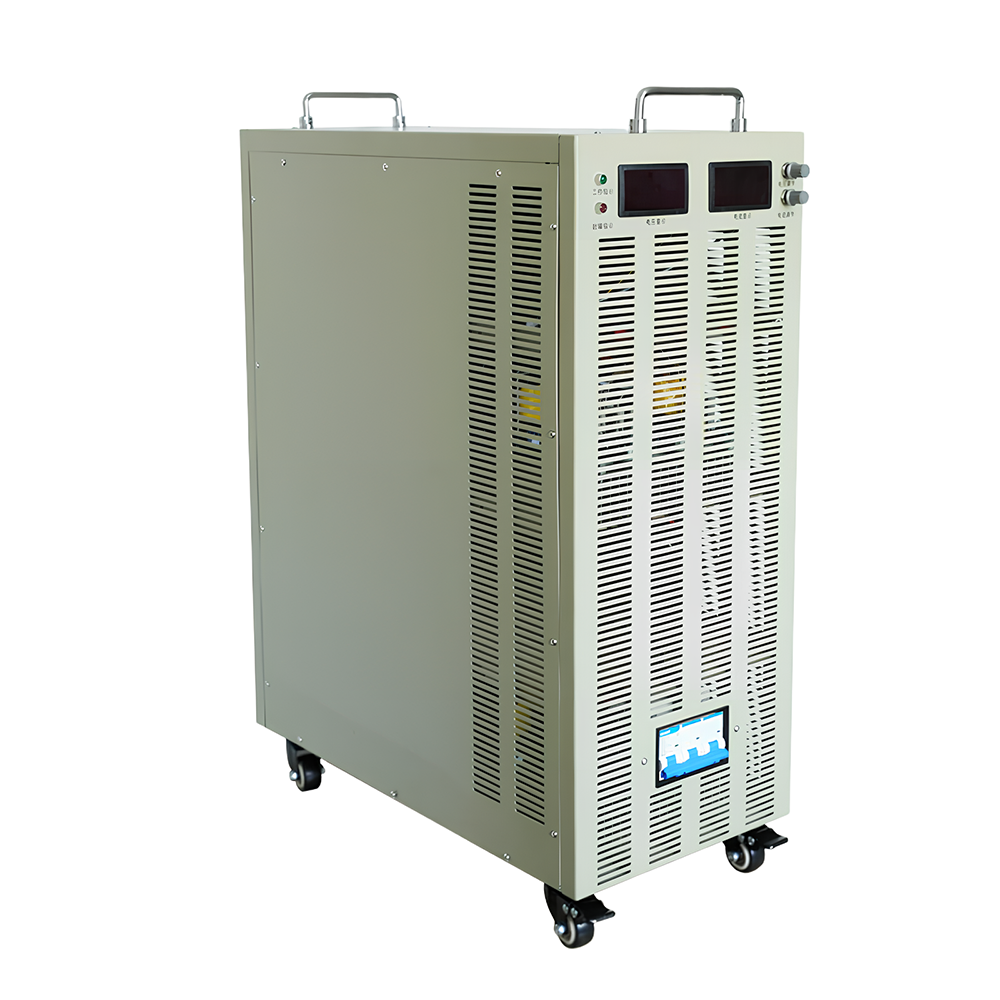

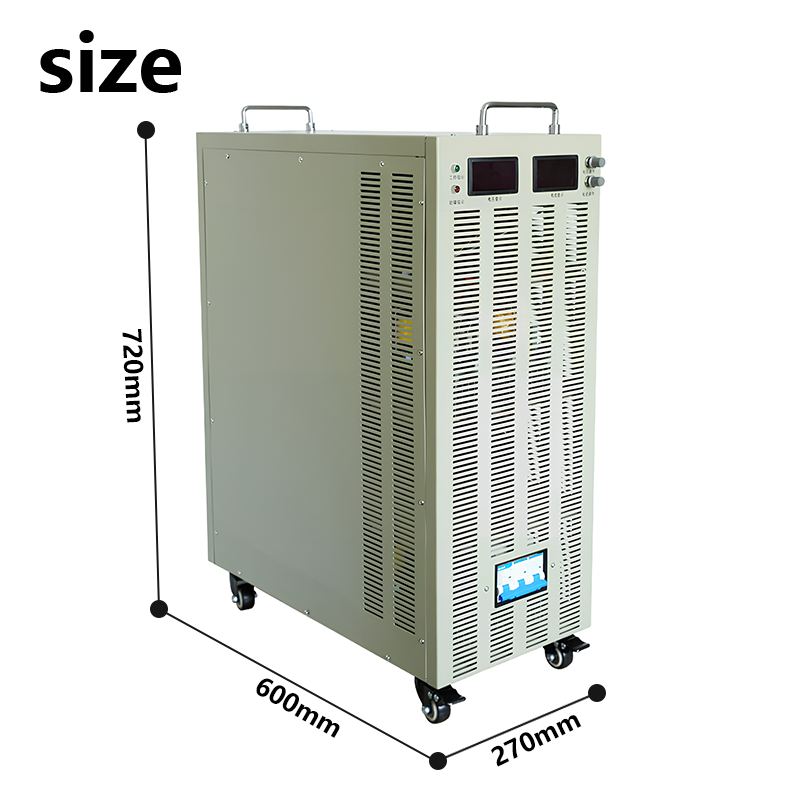

Product Gallery

Product Instructions

1

Before powering on, check the stored and transported switch power supply. Check for any damage during transportation, such as loose screws, abnormal appearance, whether the power cord and terminal are shaken off, or if they are damp. If any of these occur, they should be resolved in a timely manner.
2

The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel to confirm correct connection. Pay attention to whether the connected input voltage is consistent with the voltage indicated in the manual.
3

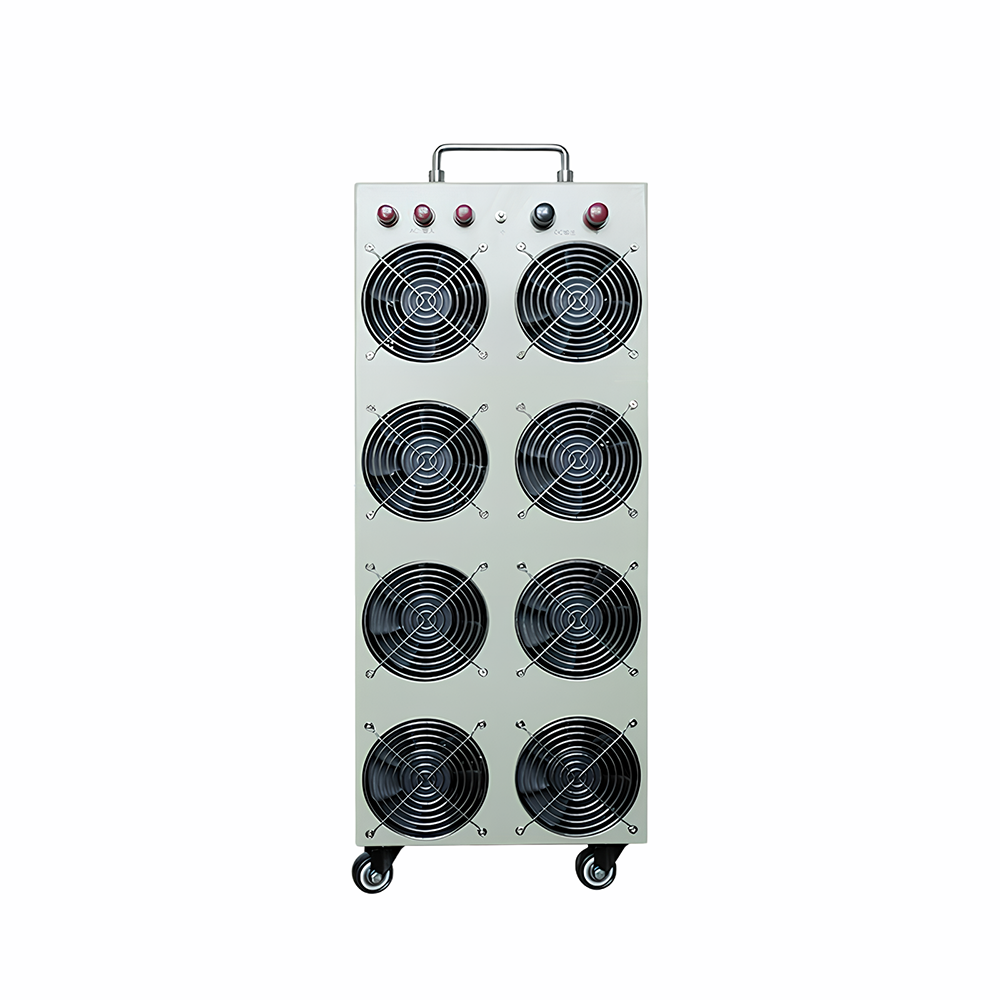

The cooling fan is temperature controlled. When the temperature inside the machine exceeds the starting control point, the fan will start. The fan speed varies with the output voltage and current under normal situations. When working, make sure the inlet and outlet of the fan are not blocked.
4

When the temperature inside the machine reaches the threshold for overheating shutdown, the machine will automatically stop working to prevent damage. Once the temperature drops slightly, it will automatically resume operation.
5

When using this equipment, ensure that dust, acid, corrosive gases or substances in the air do not exceed normal levels. Severe vibration, bumps, rain, and direct sunlight should be avoided as much as possible.
6

It is best to regularly carry out dust removal work to improve the service life and reliability of the power equipment (dry compressed air can be used for dust removal, but note that high pressure is present inside; do not open the casing and take care not to damage internal components).
7

When the power equipment is idle for a long time, store it in a dry and ventilated room. If stored for more than 6 months, the equipment should be powered on and operated for more than half an hour.
8

Warning: Only connect to the powered load equipment when the power-on test is normal and error-free.
9

Handling Malfunctions: If abnormal operation occurs after turning on the machine, immediately cut off the power switch. Check the internal and external connections for correctness and screws for looseness, and verify if all switches and knobs are in the correct position. If the problem is difficult to handle, do not unscrew the screws or remove the casing without authorization. Due to high voltage inside, do not attempt to repair it yourself without professional knowledge and equipment. Please notify technical support promptly to resolve the issue.

Frequently Asked Questions

Is there overvoltage, overcurrent, overheating, or short circuit protection?

Yes, the power supply is fully equipped with overcurrent, overvoltage, overheat, and short circuit protection features to ensure safe operation.

Can it be used at full power for a long time?

No, the power supply needs to be used with excess capacity. Power loads below 80% can be used continuously for a long time.

Is it convenient to adjust the voltage and current?

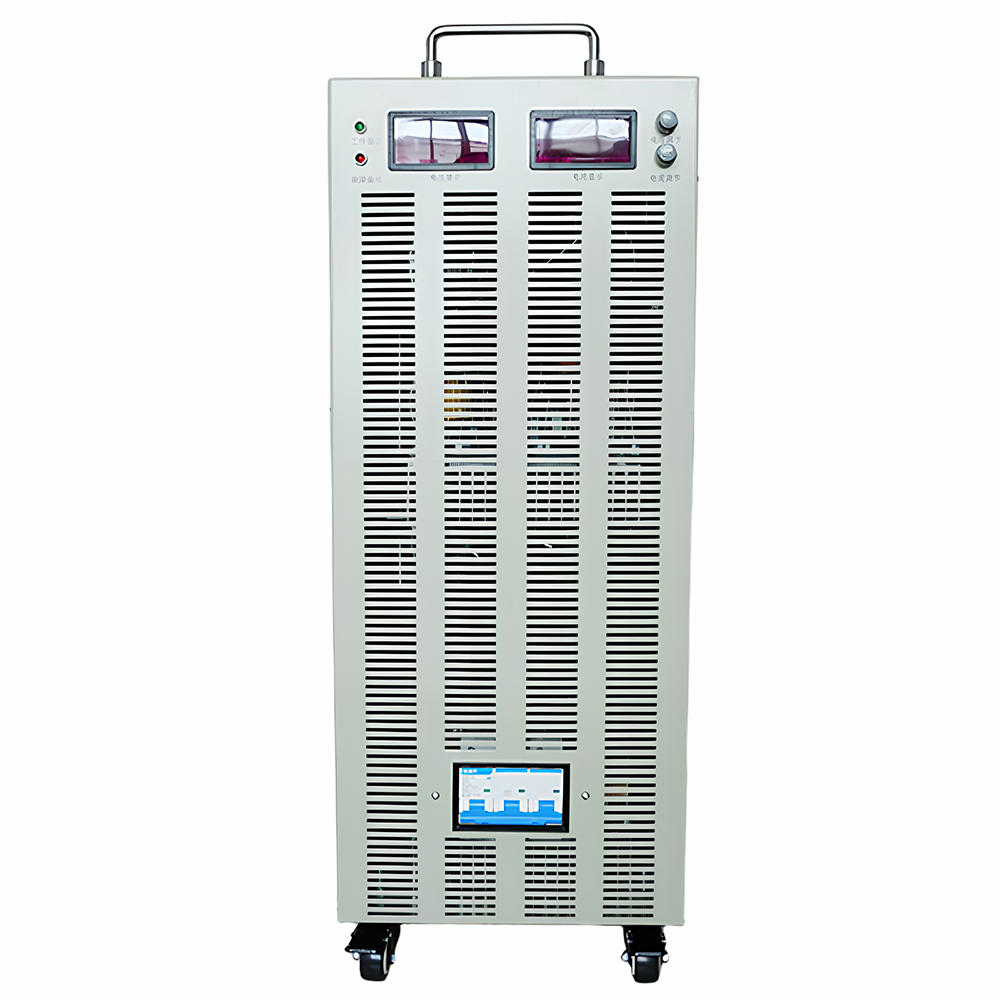

Yes, it is very convenient. The voltage and current outputs can be adjusted easily with dual knobs on the unit.

Is the high-power power supply isolated?

Yes, our system is designed as a fully isolated power supply.

What is the voltage regulation range?

The voltage regulation range starts from 1V.

Is the power supply sufficient?

Yes, the system is designed to provide fully sufficient power rating as specified.
