24000W Industrial Grade AC-DC Adjustable Voltage Regulating Single High Efficiency Switching Power Supply (24V-1000V Optional)

Product Information

Product Name: DC Switching Power Supply
Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.

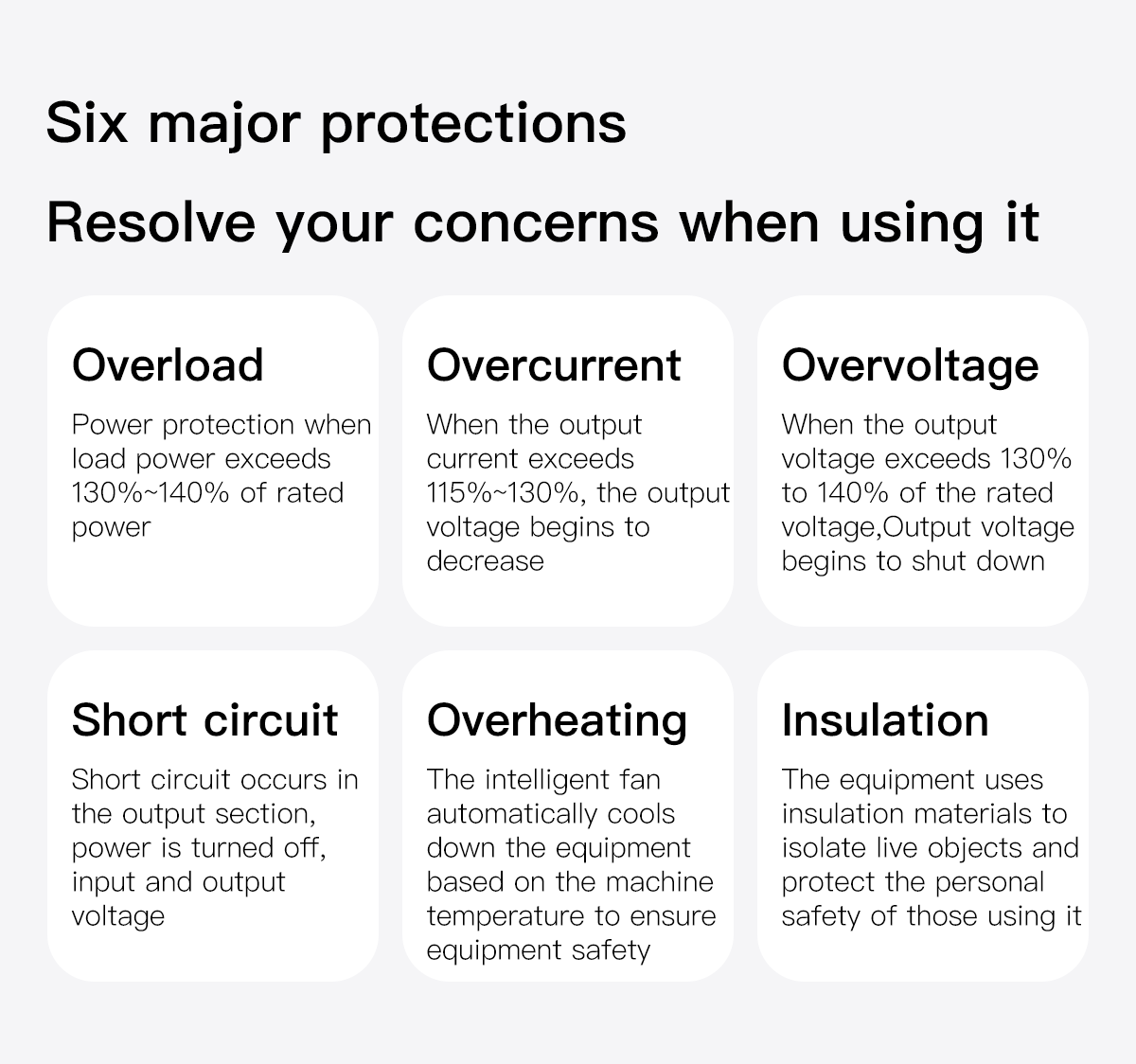

Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
Features: High stability and reliability
Warranty: 1 year
Weight: Approximately 45KG

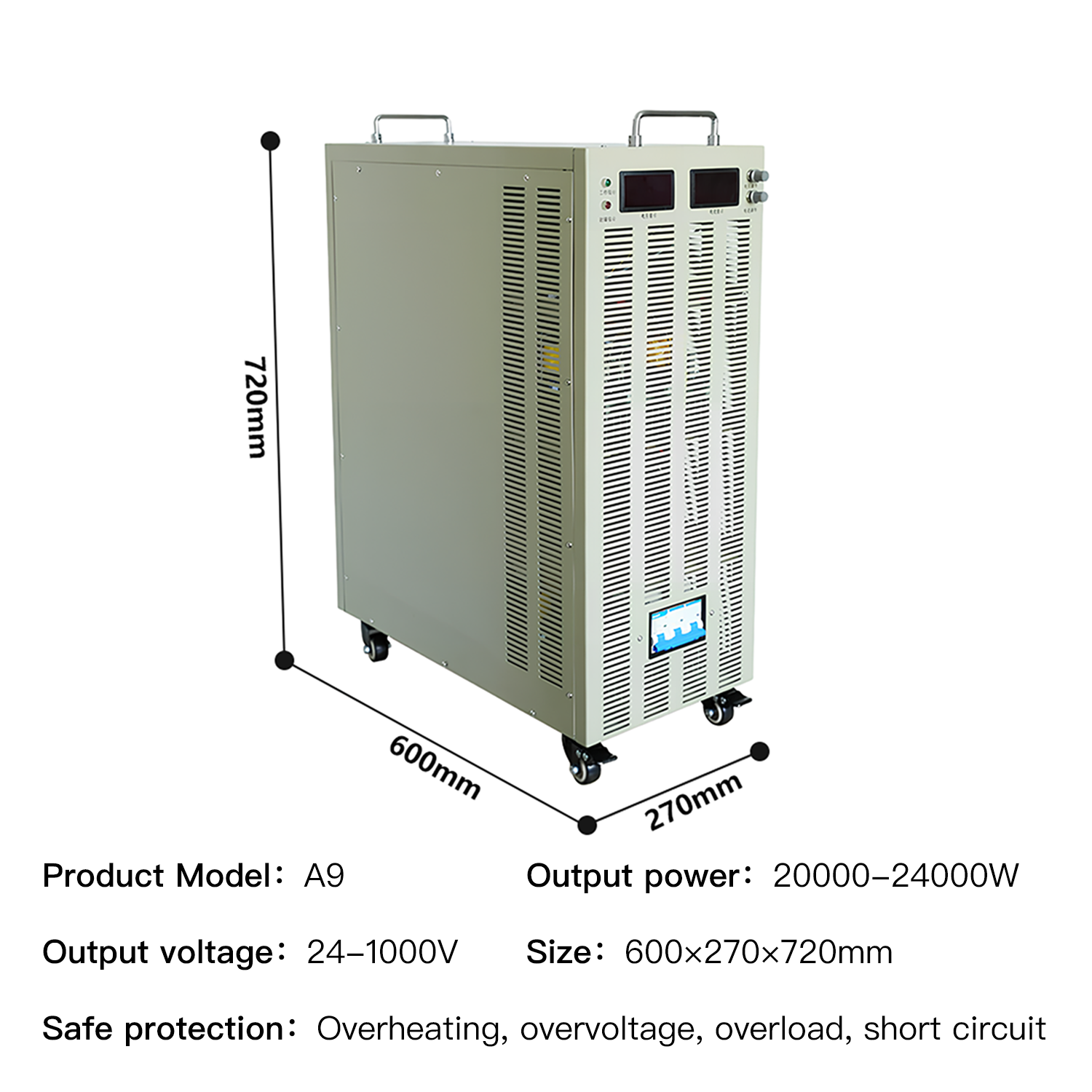

Dimensions & Layouts

Technical Specifications

Product Name	DC Switching Power Supply	Operating Relative Humidity	20%~88%
Power Rating	20KW / 24KW	Application Scenarios	Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage	Single-phase/Three-phase 110V±10% 50-60HZ 220V±10% 50-60HZ 380V±10% 50-60HZ	Protection Functions	Overcurrent, overvoltage, overheating, short-circuit protection

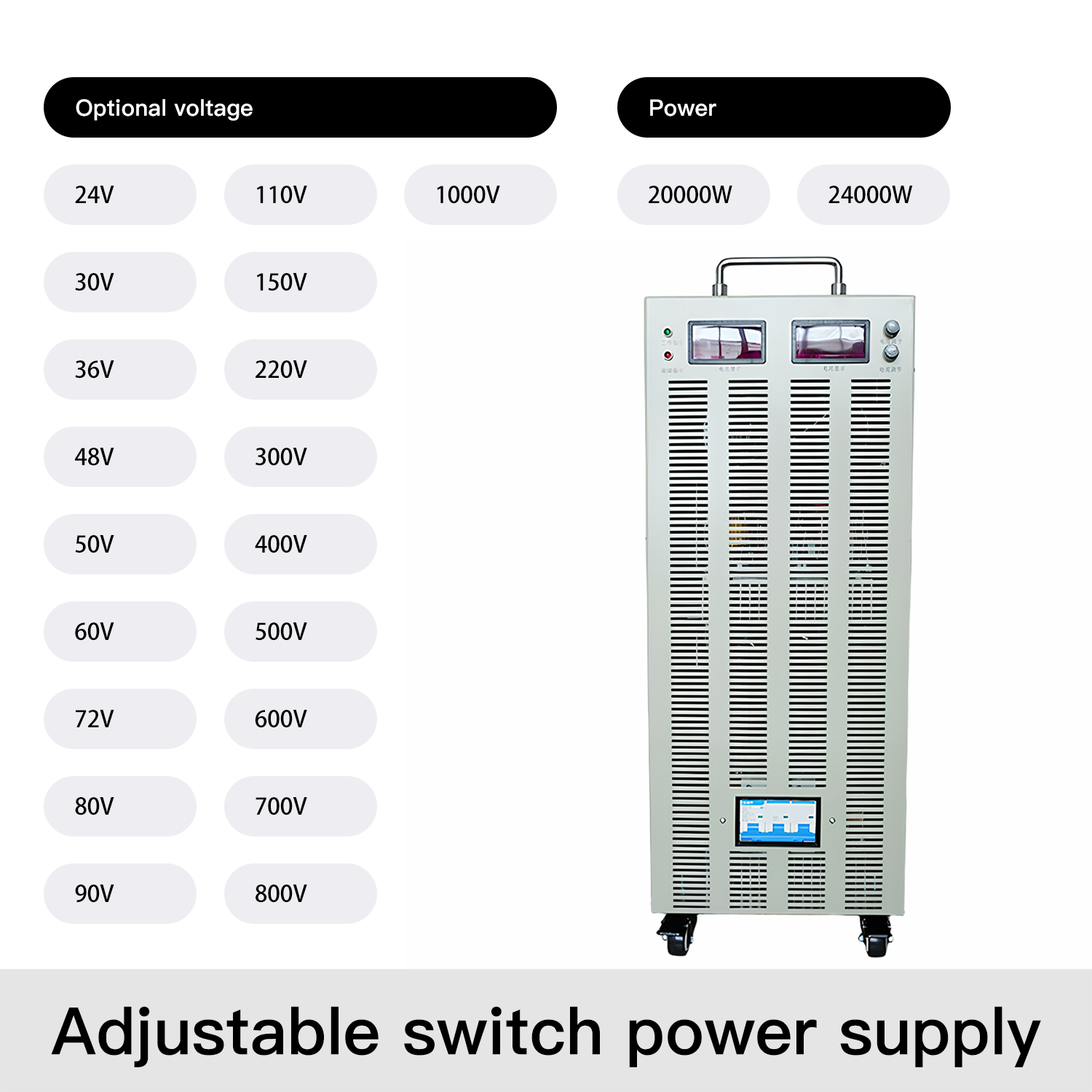

Output Voltage	24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V	Product Features	High stability, high reliability
Output Current	Selected power/selected voltage	Warranty Period	1 Year
Power Conversion Type	AC-DC	Product Weight	Approximately 45kg
Efficiency	>88-89%	Carton Dimensions	770x400x840mm
Output Voltage Accuracy	±1%	-	-

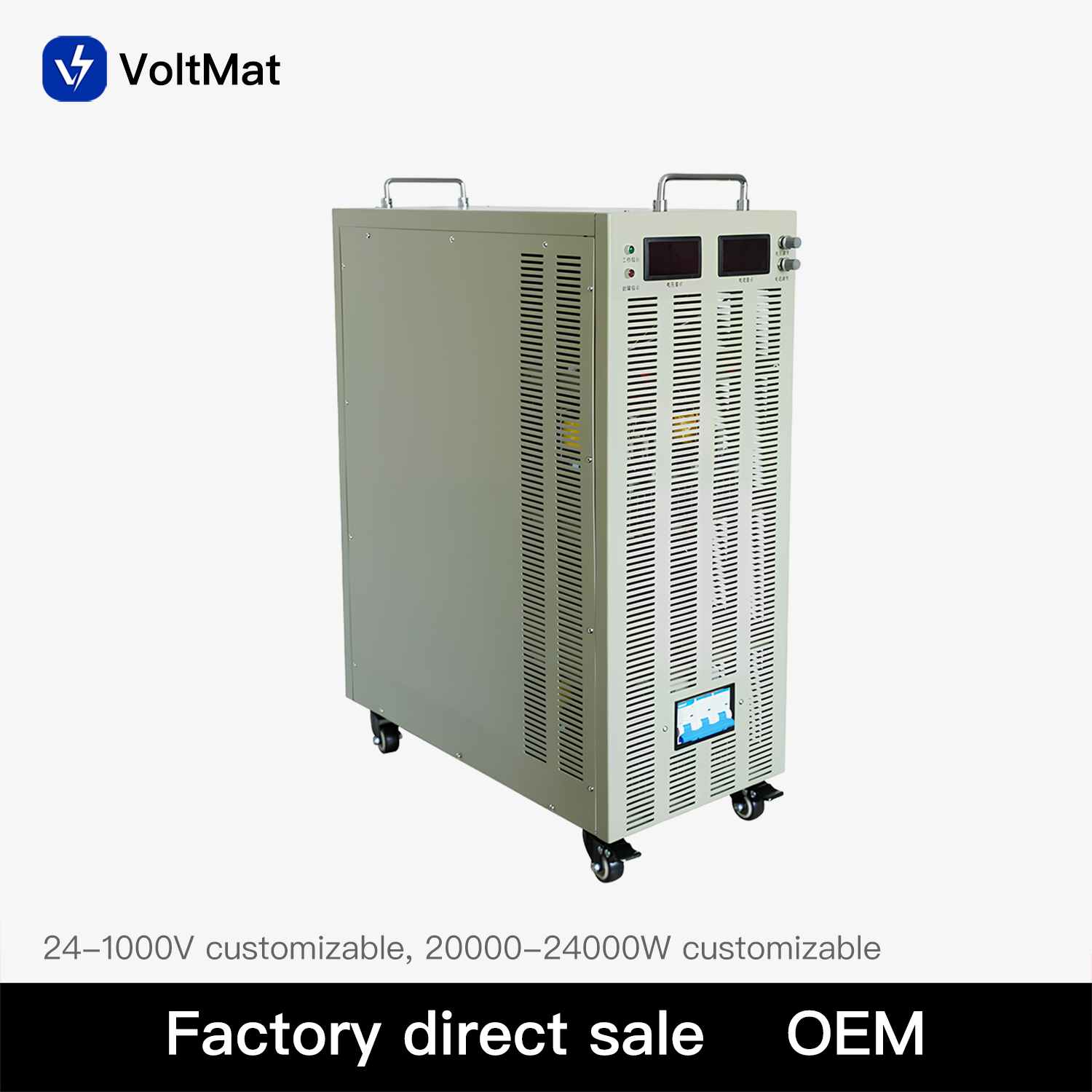

Equipment Showcase

Product Instructions

1 Before powering on, inspect the stored and transported switching power supply. Check for damage during transportation, such as loose screws, abnormal appearance, disconnected or loose power cords/terminals, and dampness. Address any issues promptly before operation.
2 The local power switch controls the auxiliary power supply inside the machine. For safety, please add an air switch to the power input terminal to control the main input. Connect the ground wire and input power wire according to the labels on the rear panel. Confirm that the connected input voltage matches the voltage indicated in the manual.
3 The cooling fan is temperature-controlled and starts when the internal temperature exceeds the thermal threshold. The fan speed varies dynamically with output voltage and current. Keep the air inlets and outlets clear of blockages during operation.
4 If the internal temperature reaches the overheating threshold, the machine will shut down automatically to prevent damage. It will resume operation automatically once the temperature drops to safe limits.
5 During operation, ensure that dust, acid, corrosive gases, or airborne substances do not exceed normal levels. Avoid placing the unit in areas of severe vibration, bumps, rain, or direct sunlight.
6 Perform regular dust removal to extend the service life and reliability of the power equipment. Dry compressed air can be used. Do not open the casing as high voltage is present inside, and be careful not to damage the components.
7 Store idle equipment in a dry, ventilated room. If stored for over 6 months, power on the device and run it for at least 30 minutes.
8 Warning: Only connect load equipment after verifying that the power-on test is normal and error-free.
9 Malfunction Troubleshooting: If abnormal operation occurs, switch off the power supply immediately. Inspect internal and external connections for loose screws and verify the positions of all switches and knobs. Do not unscrew the casing or attempt repairs without professional knowledge and equipment, as high voltage is present. Please contact professional support promptly to resolve issues.

Frequently Asked Questions

Q: Does this DC switching power supply have built-in safety protections?

A: Yes, it includes comprehensive overcurrent, overvoltage, overheating, and short-circuit protection features.

Q: Is reverse polarity protection available for this power supply?

A: Yes, reverse polarity protection can be configured as a customizable upgrade.

Q: Can this device be operated at full power continuously?

A: It is recommended to use the power supply below 80% capacity for long-term continuous operations to ensure optimal durability.

Q: How is the output voltage and current adjusted?

A: The power supply is equipped with convenient dual knobs for easy and precise adjustments of both voltage and current.

Q: Is this a fully isolated power supply?

A: Yes, our high-power DC switching power supply is fully isolated.

Q: What is the regulation start voltage and does it have sufficient power?

A: The voltage regulation starts from 1V, and the unit provides fully sufficient output power according to its specifications.
