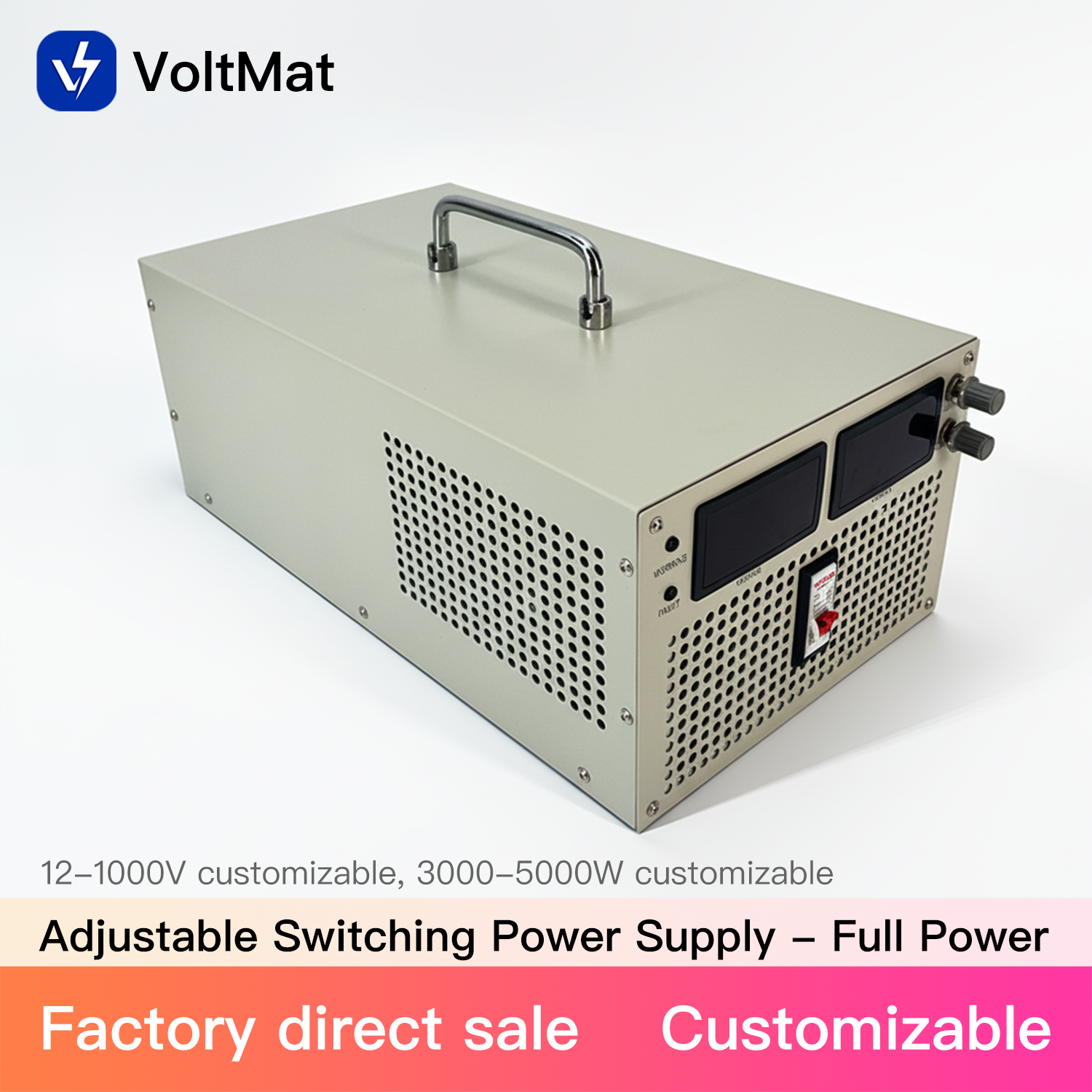

Industrial High-Power 300V-3000W AC-DC Single Output Power Supply 12V-1000V Input Range 88-89% Efficiency 1 Year Warranty High
Industrial High-Power 300V-3000W AC-DC Single Output Power Supply 12V-1000V Input Range 88-89% Efficiency 1 Year Warranty High
Industrial High-Power 300V-3000W AC-DC Single Output Power Supply 12V-1000V Input Range 88-89% Efficiency 1 Year Warranty High
Industrial High-Power 300V-3000W AC-DC Single Output Power Supply 12V-1000V Input Range 88-89% Efficiency 1 Year Warranty High
Industrial High-Power 300V-3000W AC-DC Single Output Power Supply 12V-1000V Input Range 88-89% Efficiency 1 Year Warranty High
1 / 5
Industrial High-Power 300V-3000W AC-DC Single Output Power Supply 12V-1000V Input Range 88-89% Efficiency 1 Year Warranty High
Industrial High-Power 300V-3000W AC-DC Single Output Power Supply 12V-1000V Input Range 88-89% Efficiency 1 Year Warranty High
Industrial High-Power 300V-3000W AC-DC Single Output Power Supply 12V-1000V Input Range 88-89% Efficiency 1 Year Warranty High
Industrial High-Power 300V-3000W AC-DC Single Output Power Supply 12V-1000V Input Range 88-89% Efficiency 1 Year Warranty High
Industrial High-Power 300V-3000W AC-DC Single Output Power Supply 12V-1000V Input Range 88-89% Efficiency 1 Year Warranty High

Industrial High-Power 300V-3000W AC-DC Single Output Power Supply 12V-1000V Input Range 88-89% Efficiency 1 Year Warranty High

Send Inquiry

Product Description

DC Switching Power Supply
DC Switching Power Supply Details

DC Switching Power Supply

  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection.
  • Features: High stability and reliability.
  • Warranty: 1 year warranty.
  • Weight: Approximately 10KG.
Feature display 1
Feature display 2
Feature display 3
Feature display 4
Feature display 5
Technical Specifications
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 3000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase/Three-phase
220V±10% 50-60HZ
110V±10% 50-60HZ
380V±10% 50-60HZ		 Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection

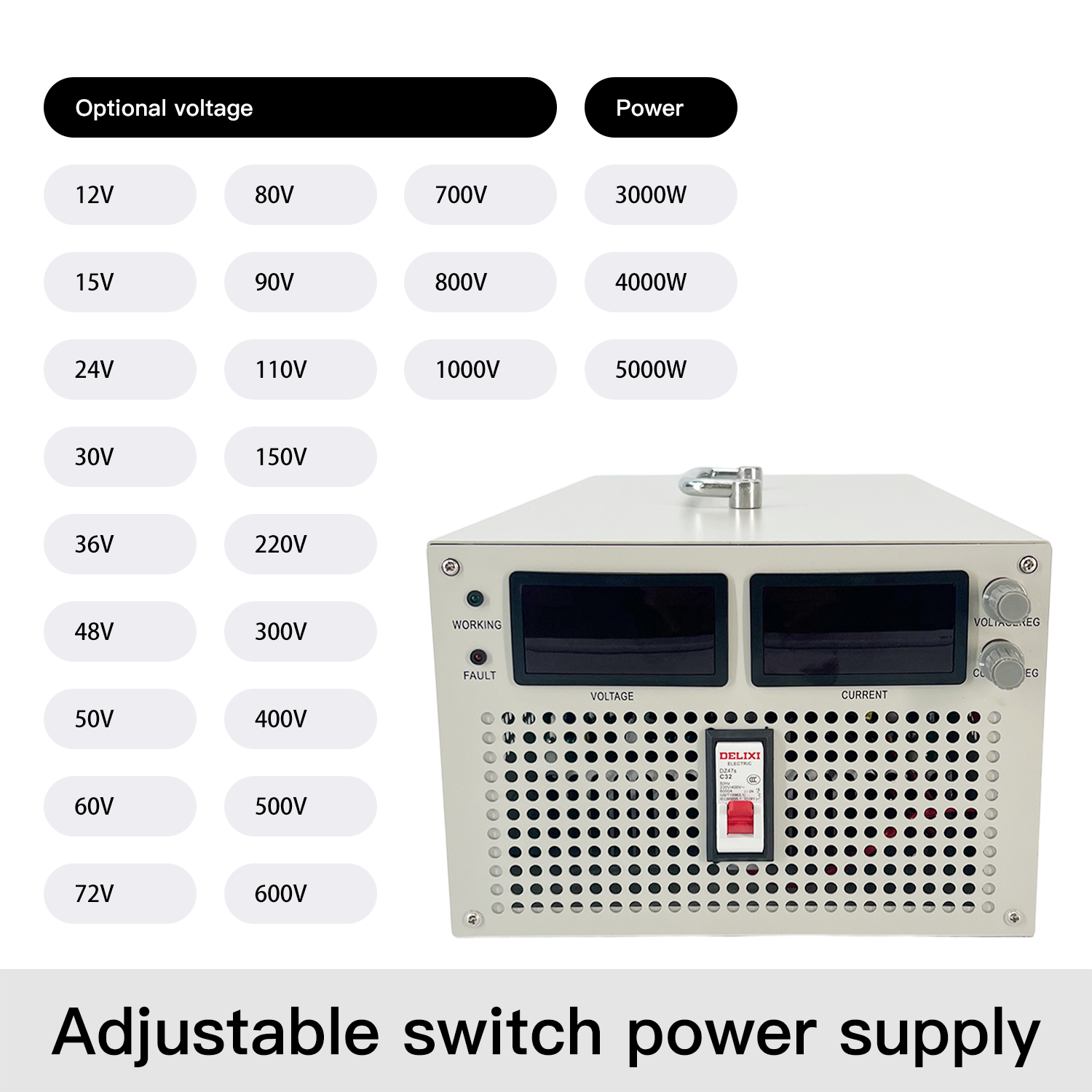

Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Power ÷ Output Voltage (calculated by selected power & output voltage) Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 10 kg

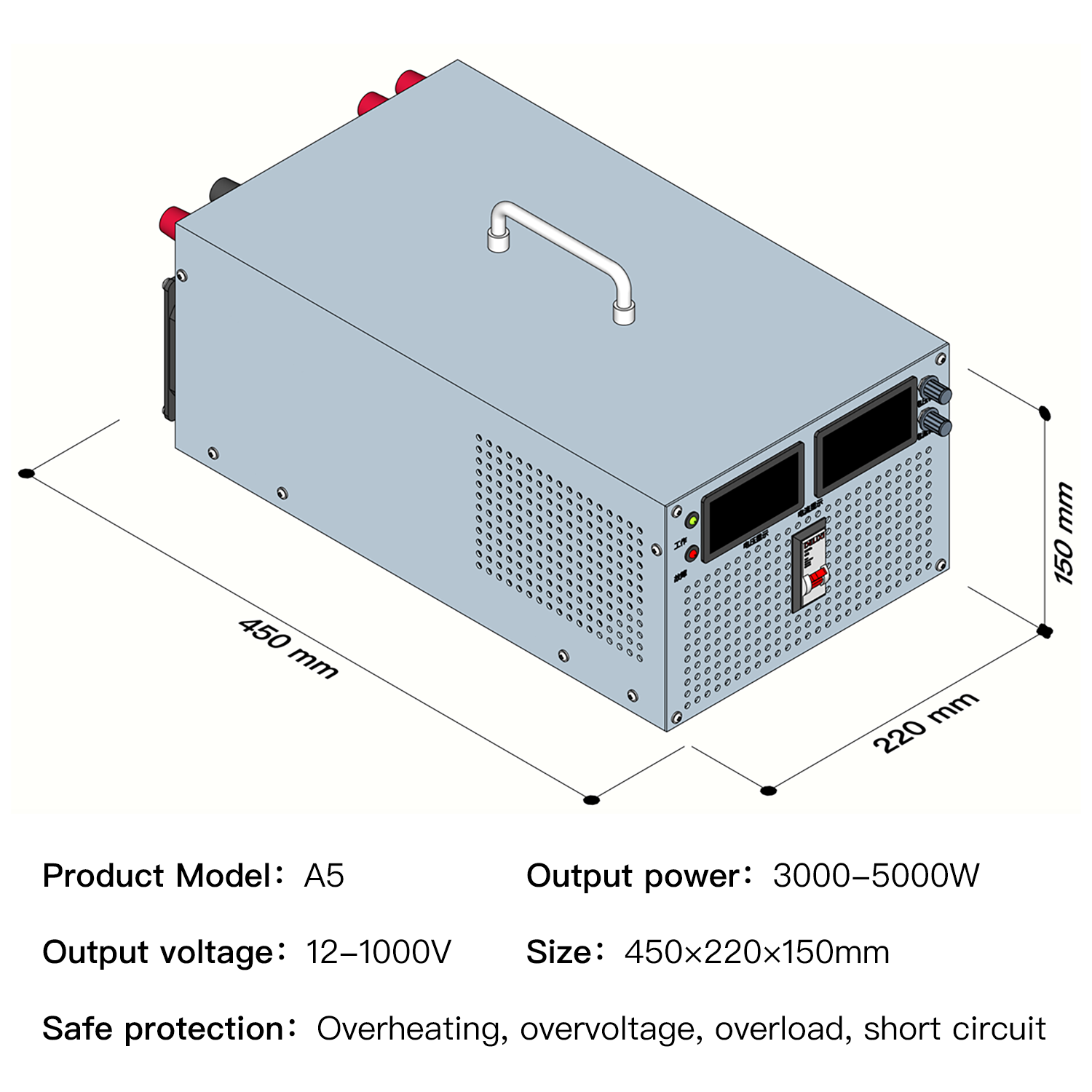

Efficiency >88-89% Carton Dimensions 530x295x240mm
Output Voltage Accuracy ±1%
Detail presentation 1
Detail presentation 2
Detail presentation 3
Detail presentation 4
Detail presentation 5
Product Instructions
1
Before powering on, check the stored and transported switch power supply. Check for damage during transportation, such as loose screws, abnormal appearance, power cord and terminal stability, or dampness. Address any of these issues timely.
2

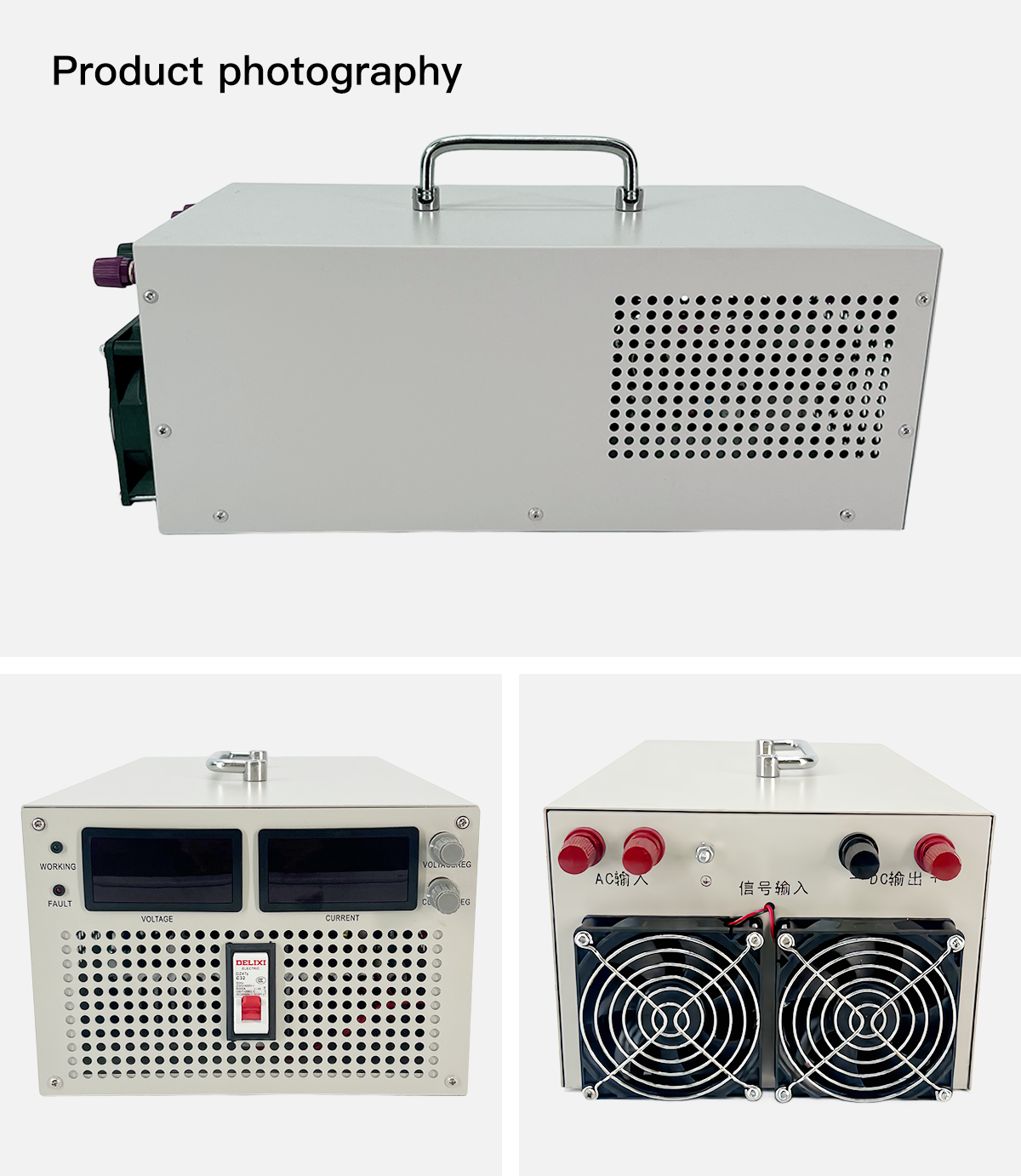

The local power switch controls the auxiliary power supply inside the machine. For safety, add an air switch to the power input terminal to control power input. Connect the ground wire and input power wire correctly according to the rear panel label. Check if the input power supply matches the voltage indicated in the manual.
3

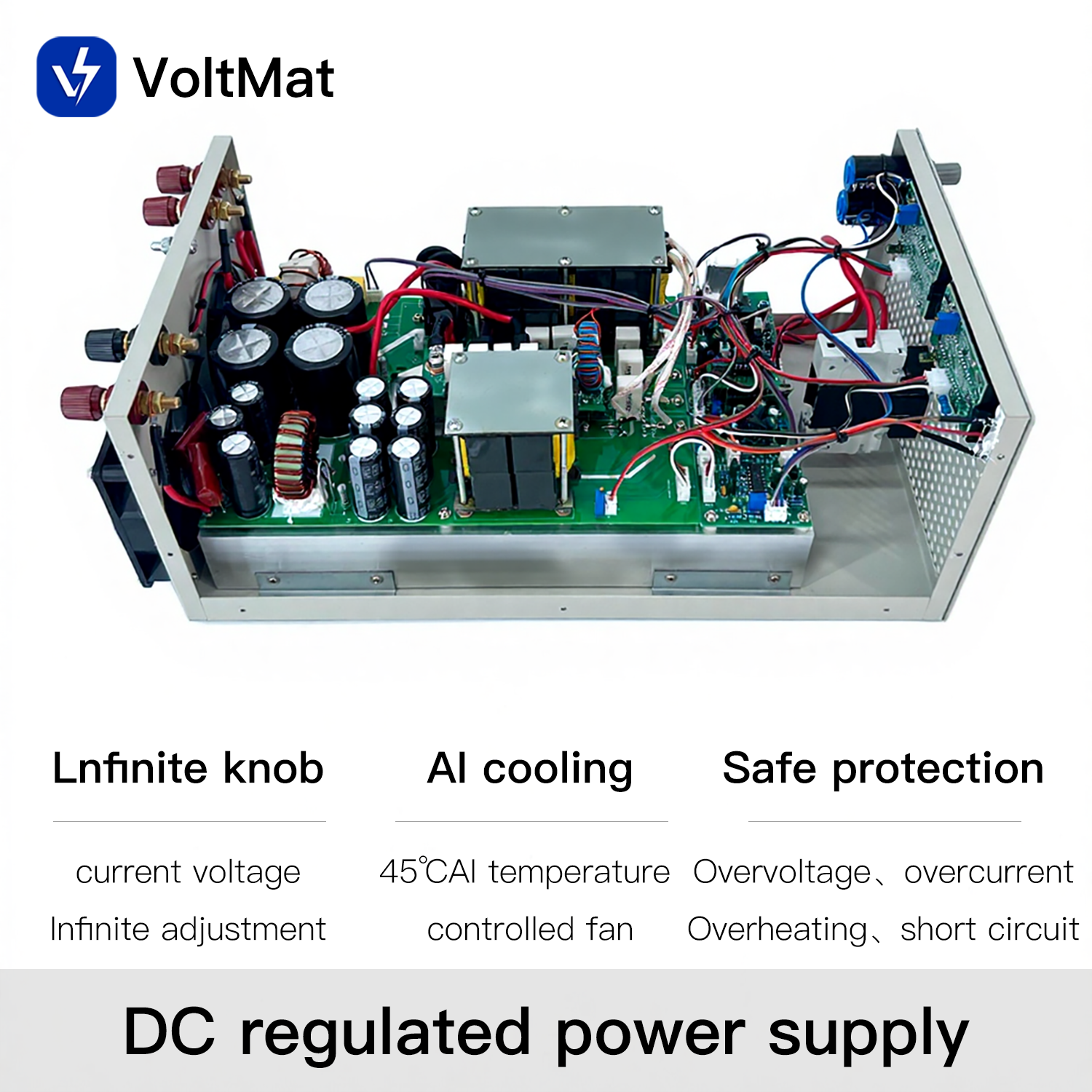

The cooling fan is temperature controlled and will start when the temperature inside the machine exceeds the starting threshold. The fan speed varies based on output voltage and current, which is normal. Ensure the inlet and outlet of the fan remain unblocked during operation.
4
When the temperature inside reaches the overheating shutdown threshold, the machine will automatically stop working to prevent damage. It will automatically resume once the temperature drops.
5
Avoid exposing the equipment to abnormal levels of dust, acid, corrosive gases, severe vibrations, bumps, rain, or direct sunlight.
6
Regular dust removal (using dry compressed air) can greatly improve the service life and reliability of the power equipment. Due to high internal voltage, do not open the casing to prevent damage to internal components.
7
If stored idle for a long time, keep the power equipment in a dry, ventilated room. If stored for over 6 months, power on the device and let it run for over half an hour before use.
8
Warning: Only connect to powered load equipment once the power-on test is confirmed normal and error-free.
9
If abnormal operation occurs after turning on the machine, immediately cut off the stabilized power supply. Carefully check the internal and external connections, terminal screws, and ensure all switches and knobs are in the correct positions. Do not unscrew the casing without professional knowledge due to high internal voltages. Please contact qualified technical support to resolve any issues.
Frequently Asked Questions
Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, full protection features are built into the power supply.
Is there reverse protection?
Reverse protection can be added as a custom option upon request (additional cost applies).
Can it be used at full power for a long time?
No, the power supply needs to be used with excess capacity. For long-term continuous operation, it should run below 80% capacity.
Is it convenient to adjust voltage and current?
Yes, it is very convenient. Voltage and current can be easily adjusted using the dual knobs on the unit.
Is this high-power power supply isolated?
Yes, our equipment is built as a fully isolated power supply.
What is the voltage regulation range?
The voltage regulation range starts from 1V.
