Output 50V-4000W High Efficiency AC-DC Switching Regulated Power Supply Single Output Heavy-Duty Industrial Use 50/60Hz
Output 50V-4000W High Efficiency AC-DC Switching Regulated Power Supply Single Output Heavy-Duty Industrial Use 50/60Hz
Output 50V-4000W High Efficiency AC-DC Switching Regulated Power Supply Single Output Heavy-Duty Industrial Use 50/60Hz
Output 50V-4000W High Efficiency AC-DC Switching Regulated Power Supply Single Output Heavy-Duty Industrial Use 50/60Hz
Output 50V-4000W High Efficiency AC-DC Switching Regulated Power Supply Single Output Heavy-Duty Industrial Use 50/60Hz
1 / 5
Output 50V-4000W High Efficiency AC-DC Switching Regulated Power Supply Single Output Heavy-Duty Industrial Use 50/60Hz
Output 50V-4000W High Efficiency AC-DC Switching Regulated Power Supply Single Output Heavy-Duty Industrial Use 50/60Hz
Output 50V-4000W High Efficiency AC-DC Switching Regulated Power Supply Single Output Heavy-Duty Industrial Use 50/60Hz
Output 50V-4000W High Efficiency AC-DC Switching Regulated Power Supply Single Output Heavy-Duty Industrial Use 50/60Hz
Output 50V-4000W High Efficiency AC-DC Switching Regulated Power Supply Single Output Heavy-Duty Industrial Use 50/60Hz

Output 50V-4000W High Efficiency AC-DC Switching Regulated Power Supply Single Output Heavy-Duty Industrial Use 50/60Hz

Send Inquiry

Product Description

DC Power Supply Banner
DC Switching Power Supply
DC Switching Power Supply
  • ✦ Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • ✦ Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • ✦ Features: High stability and reliability
  • ✦ Warranty: 1 year
  • ✦ Weight: Approximately 10KG
Product Diagram 1
Product Diagram 2
Product Diagram 3
Product Diagram 4
Product Diagram 5
Technical Specifications
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 4000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase/Three-phase
220V±10% 50-60HZ / 110V±10% 50-60HZ / 380V±10% 50-60HZ		 Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Power ÷ Output Voltage (calculated by selected power & output voltage) Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 10KG

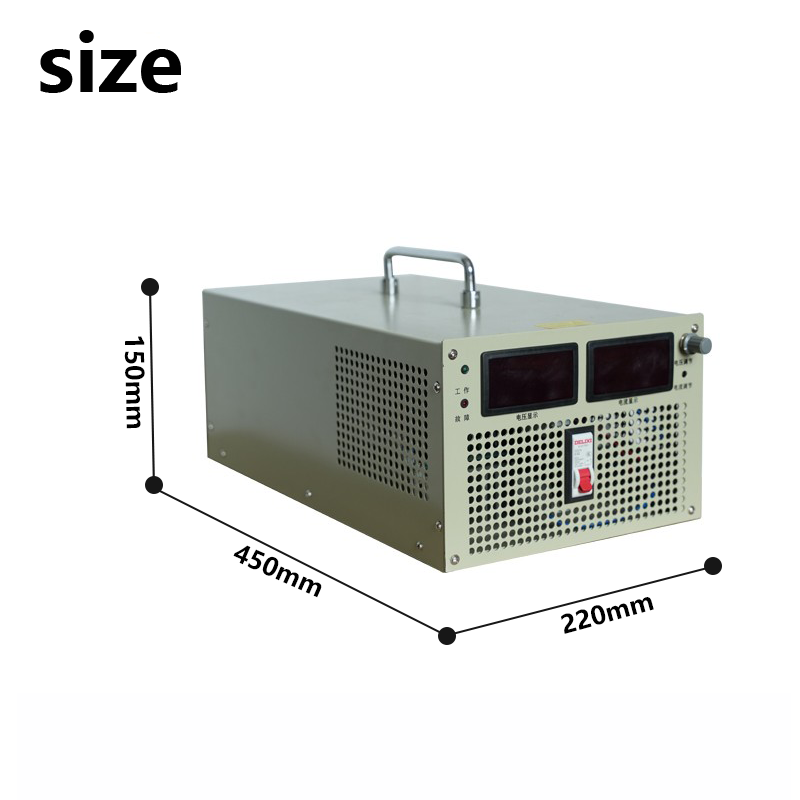

Efficiency >88-89% Carton Dimensions 530x295x240mm
Output Voltage Accuracy ±1% - -
Product Details
Details 1
Details 2
Details 3
Details 4
Details 5
Product Instructions
  • 1 Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, shaken power cords or terminals, and signs of dampness. Address any of these issues promptly.
  • 2 The local power switch controls the internal auxiliary power supply. For safety, install an air switch at the power input terminal to control the overall input power. Connect the ground wire and input power wire correctly according to the label on the rear panel. Confirm that the input voltage matches the rating indicated in the manual.
  • 3 The cooling fan is temperature-controlled and starts working when the internal temperature exceeds the threshold. The speed varies dynamically with output voltage and current. Ensure the inlet and outlet vents remain unblocked at all times.
  • 4 If the internal temperature reaches the overheating shutdown threshold, the machine will shut down automatically to prevent damage. It will automatically restart once the temperature drops to a safe level.
  • 5 Operate the equipment in environments where dust, acid, corrosive gases, or airborne substances do not exceed normal levels. Avoid severe vibrations, bumps, rain, and direct sunlight.
  • 6 Regular dust removal is highly recommended to improve the service life and reliability of the device. Use dry compressed air for cleaning, and do not open the casing to prevent damage to internal components.
  • 7 When idle for long periods, store the power supply in a dry and well-ventilated room. If stored for over 6 months, power on the device and operate it for at least half an hour before use.
  • 8 Warning: Only connect the power supply to the load equipment after running a successful power-on test without errors.
  • 9 Troubleshooting: If abnormal operation is detected, switch off the power supply, and check all internal and external connections, screws, switches, and knobs. Do not open the casing or attempt repairs without professional knowledge, as high voltages inside present a serious risk of electric shock. Contact professional support to resolve the issue.
Frequently Asked Questions (FAQ)
Q: Is there overvoltage, overcurrent, overheating, or short circuit protection?
A: Yes. The power supply comes equipped with built-in protections against overvoltage, overcurrent, overheating, and short circuits.
Q: Is there reverse protection?
A: Reverse protection can be added and customized as an optional upgrade.
Q: Can it be used at full power for a long time?
A: No, the power supply should be operated with excess capacity headroom. For long-term continuous use, please keep the power load below 80%.
Q: Is it convenient to adjust the voltage and current?

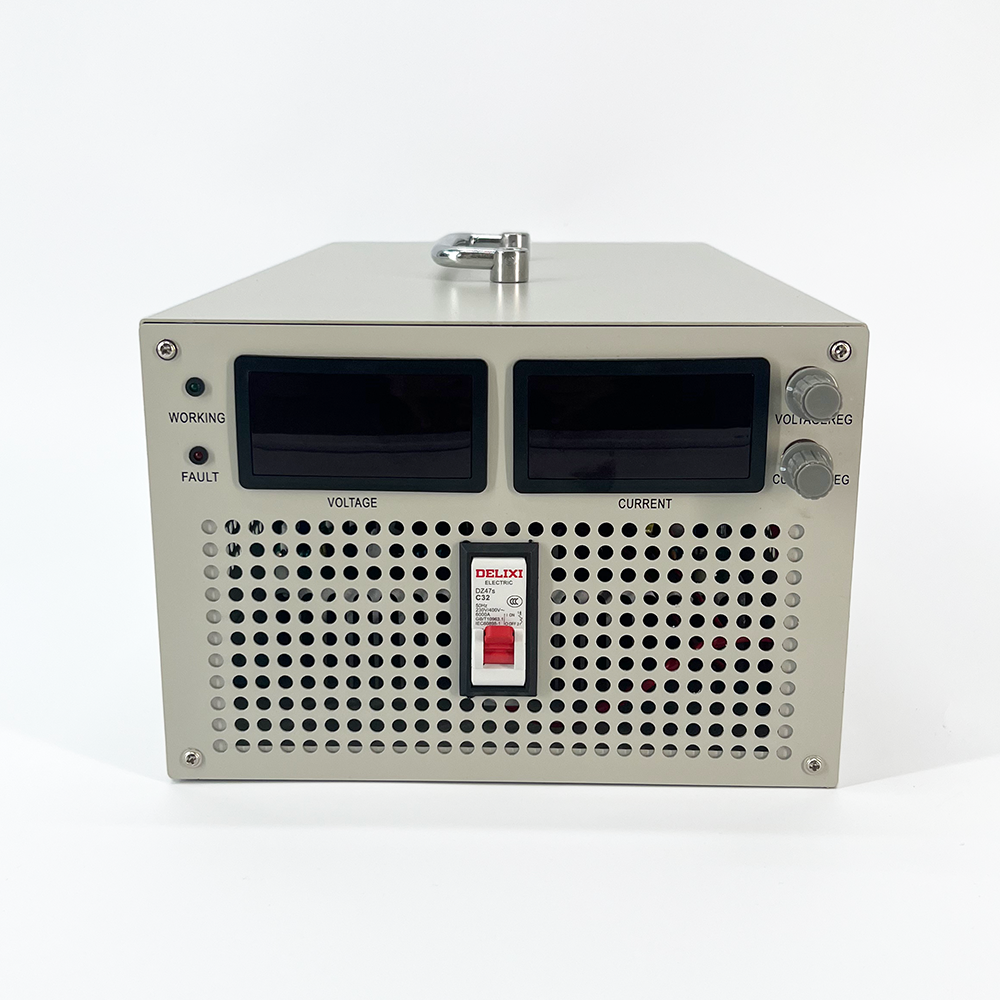

A: Yes, it is very convenient. Both voltage and current can be easily adjusted using the dual knobs on the unit.
Q: Is the high-power power supply isolated?
A: Yes, this is a fully isolated power supply design.
Q: What is the voltage regulation range?
A: The voltage regulation range starts from 1V.
