Product Description

DC Regulated Power Supply Unit
High Power Voltage Stabilizer
Specializing in high-power regulated power supplies for 15 years, delivering high stability and excellent service.

Product Overview

DC Switching Power Supply
🛡️ Product Name: DC Switching Power Supply
⚙️ Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
⚡ Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection Features: High stability and reliability.
📋 Warranty: 1 year
⚖️ Weight: Approximately 45KG
DC Power Supply Features
Regulated Power Supply Design
High Voltage Supply View
Stabilized Power Module
Power Supply Inner View

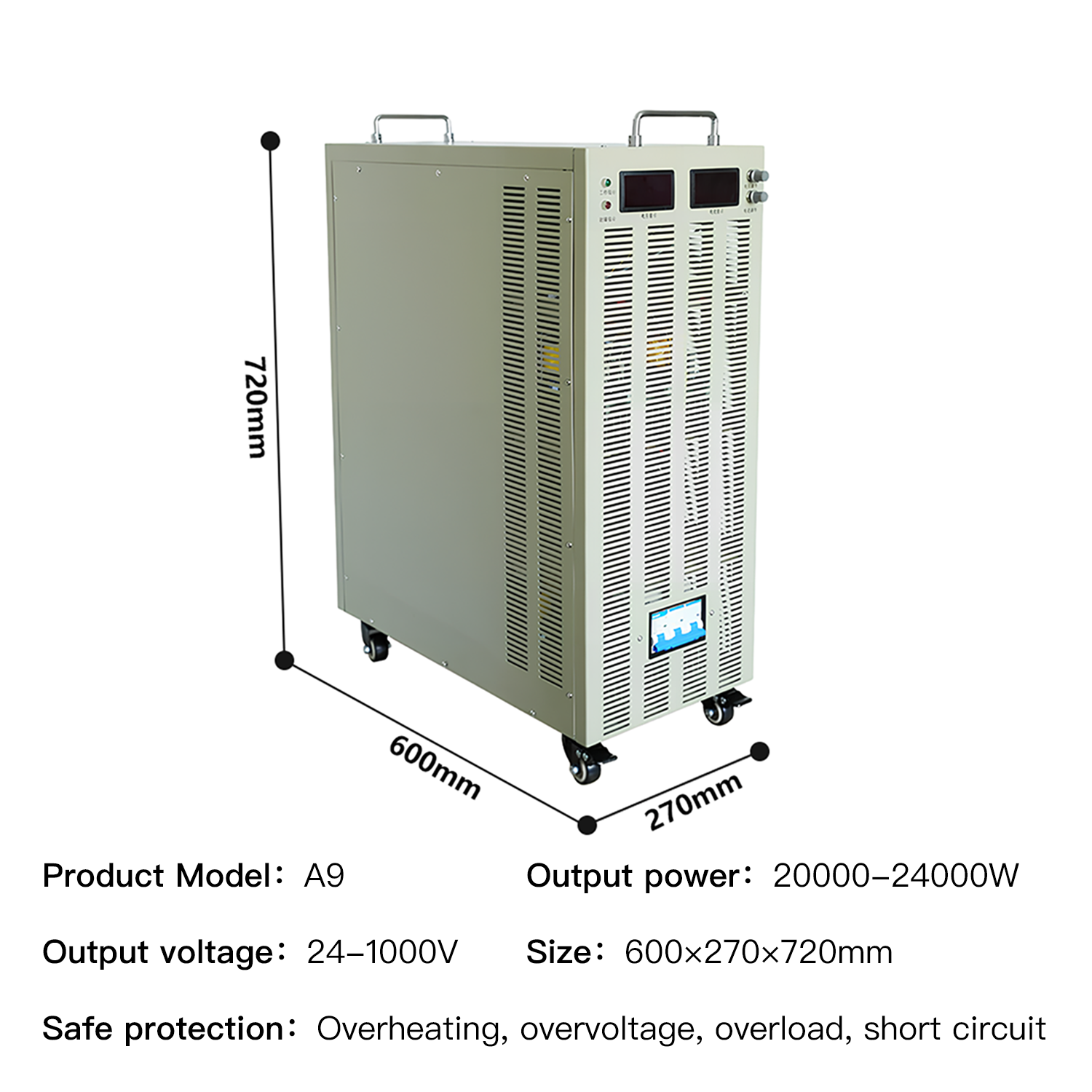

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 20KW, 24KW Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase/Three-phase
220V±10% 50-60HZ
110V±10% 50-60HZ
380V±10% 50-60HZ		 Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power/selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 45KG
Efficiency ≥88-89% Carton Dimensions 770x400x840mm
Output Voltage Accuracy ±1%
Production Process
Quality Control Testing
Hardware Assembly
Factory Inspection

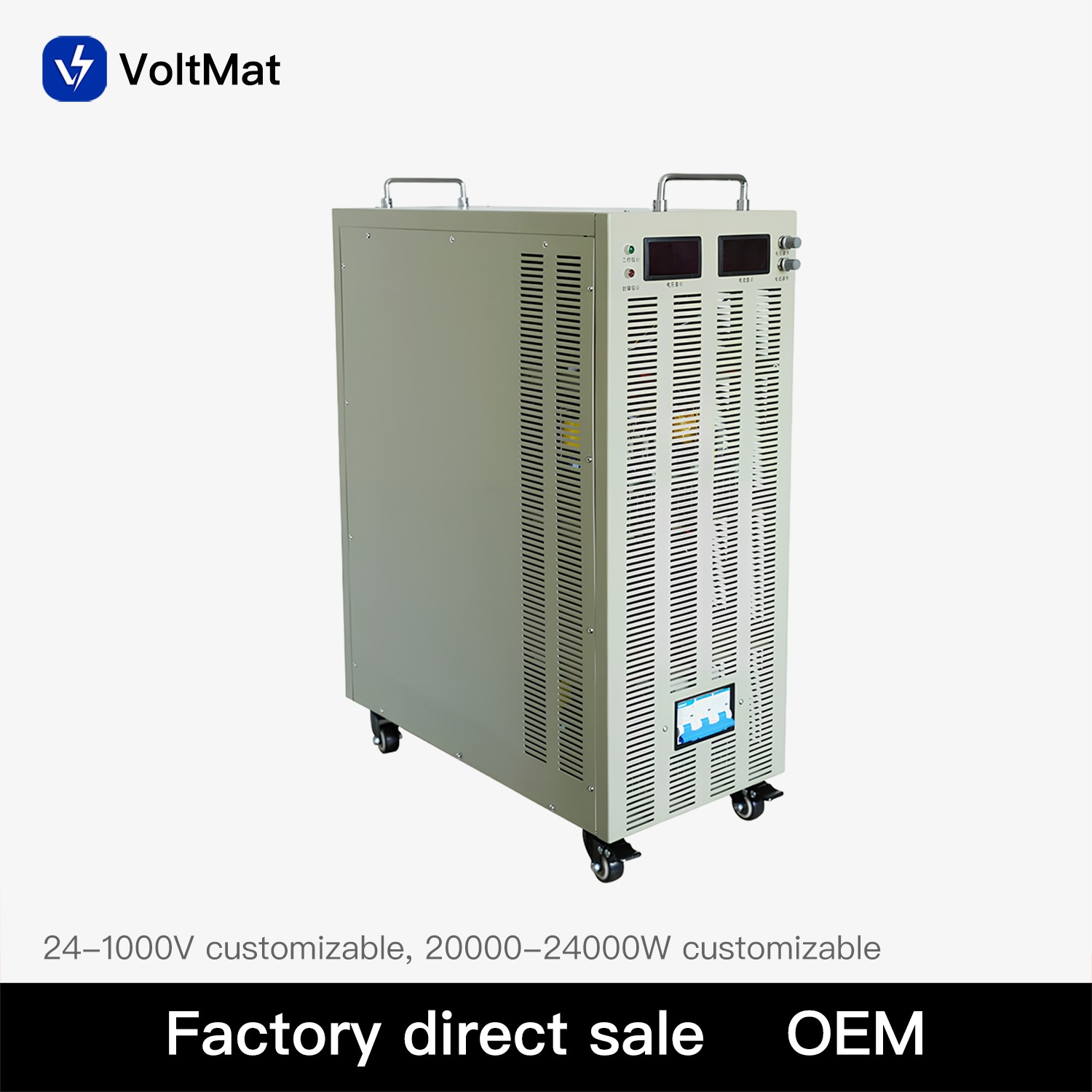

Finished Power Supply Unit

Product Instructions

1
Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, shaken off power cords/terminals, or moisture. Address these issues in a timely manner.
2
The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel. Confirm that the voltage of the input power supply matches the voltage indicated in the manual.
3

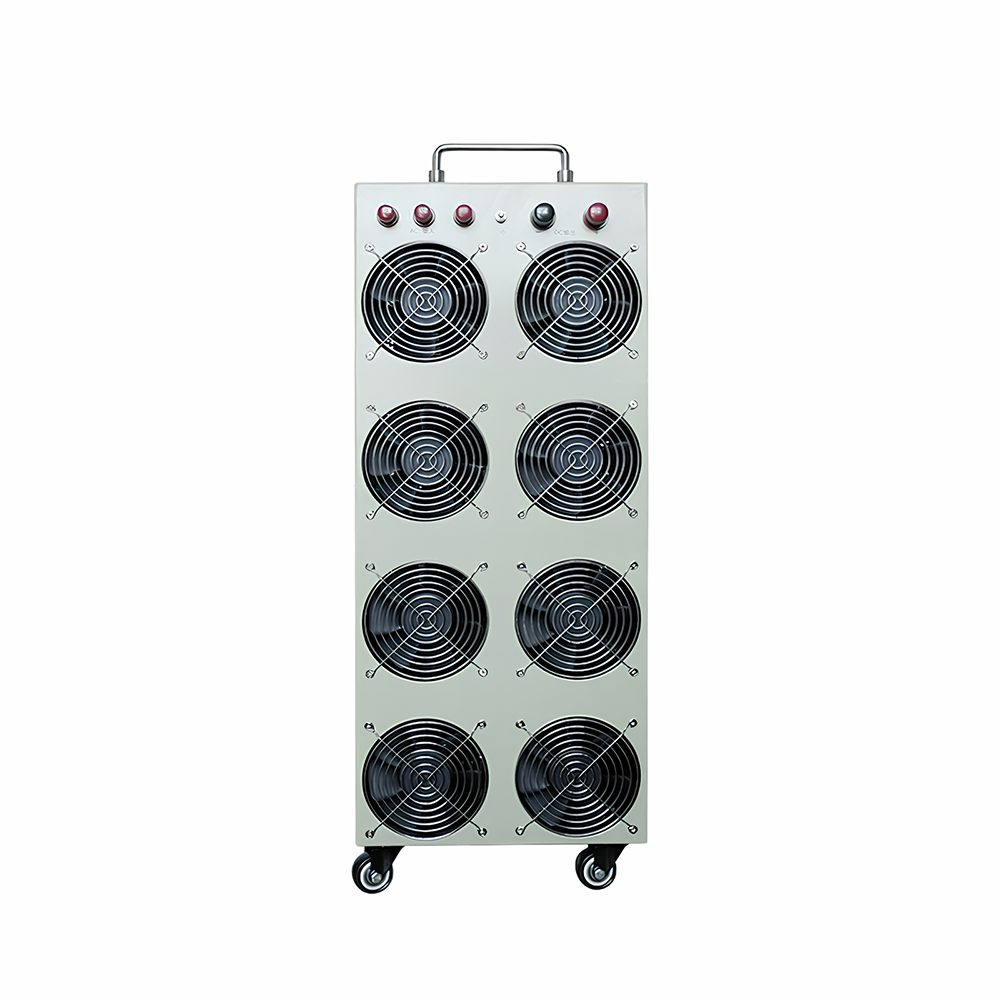

The cooling fan is temperature controlled. It starts running when the internal temperature exceeds the threshold. The fan speed varies with the output voltage and current. Keep the air inlets and outlets clear when the device is operating. If the internal temperature reaches the threshold, the machine will shut down automatically and resume when cooled down.
4
Avoid exposing the equipment to excessive dust, acid, corrosive gases, severe vibrations, bumps, rain, or direct sunlight.
5
Regular dust removal (using dry compressed air) can significantly extend the lifespan and reliability of the equipment. Due to high pressure components inside, do not open the casing to prevent damage to internal elements.
6
If idle for a long period, store it in a dry and ventilated room. For storage exceeding 6 months, power on and operate the equipment for at least half an hour. Only connect to the powered load equipment when the power-on test is normal and error-free.
7
If abnormal operation occurs, cut off the power switch immediately. Check internal and external connections, screws, switches, and knobs for correctness. Due to high internal voltage, do not attempt to disassemble or repair the device without professional knowledge. Please contact support promptly to resolve issues.

Frequently Asked Questions (FAQ)

❓Does it have overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply includes comprehensive built-in protection mechanisms.
❓Is reverse protection available?
Reverse protection can be added as an optional customization.
❓Can the power supply be operated at full power for extended periods?
No, power supplies should be operated with excess capacity. Long-term continuous use is recommended at below 80% capacity.
❓Is it easy to adjust the voltage and current?
Yes, the voltage and current can be easily and conveniently adjusted using the dual control knobs.
❓Is this high-power power supply isolated?
Yes, our systems are designed as fully isolated power supplies.
❓What is the starting voltage regulation range?
The voltage regulation starts from 1V.
