Voltmat Power
Voltmat Power
Operating a professional production factory of 10,000 square meters, we have specialized in high-power regulated power supplies for 15 years, delivering industry-recognized reliability and excellent customer support.
| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20%~88% |
| Power Rating | 20000W | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields |
| Input Voltage | Single-phase/Three-phase 220V±10% 50-60HZ / 110V±10% 50-60HZ / 380V±10% 50-60HZ |
Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |

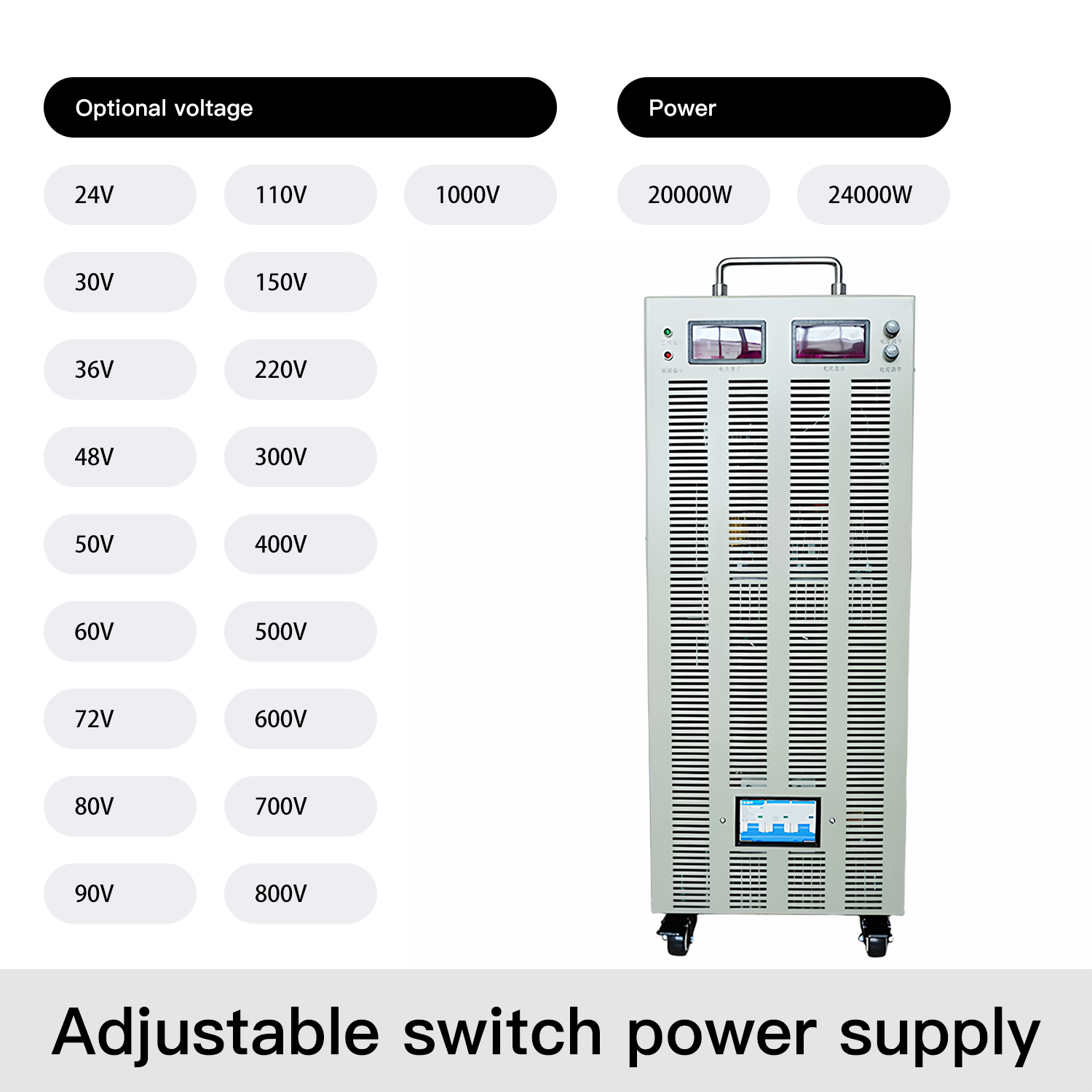

| Output Voltage | 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V, 700V, 800V, 1000V | Product Features | High stability, high reliability |
| Output Current | Selected power / Selected voltage | Warranty Period | 1 Year |

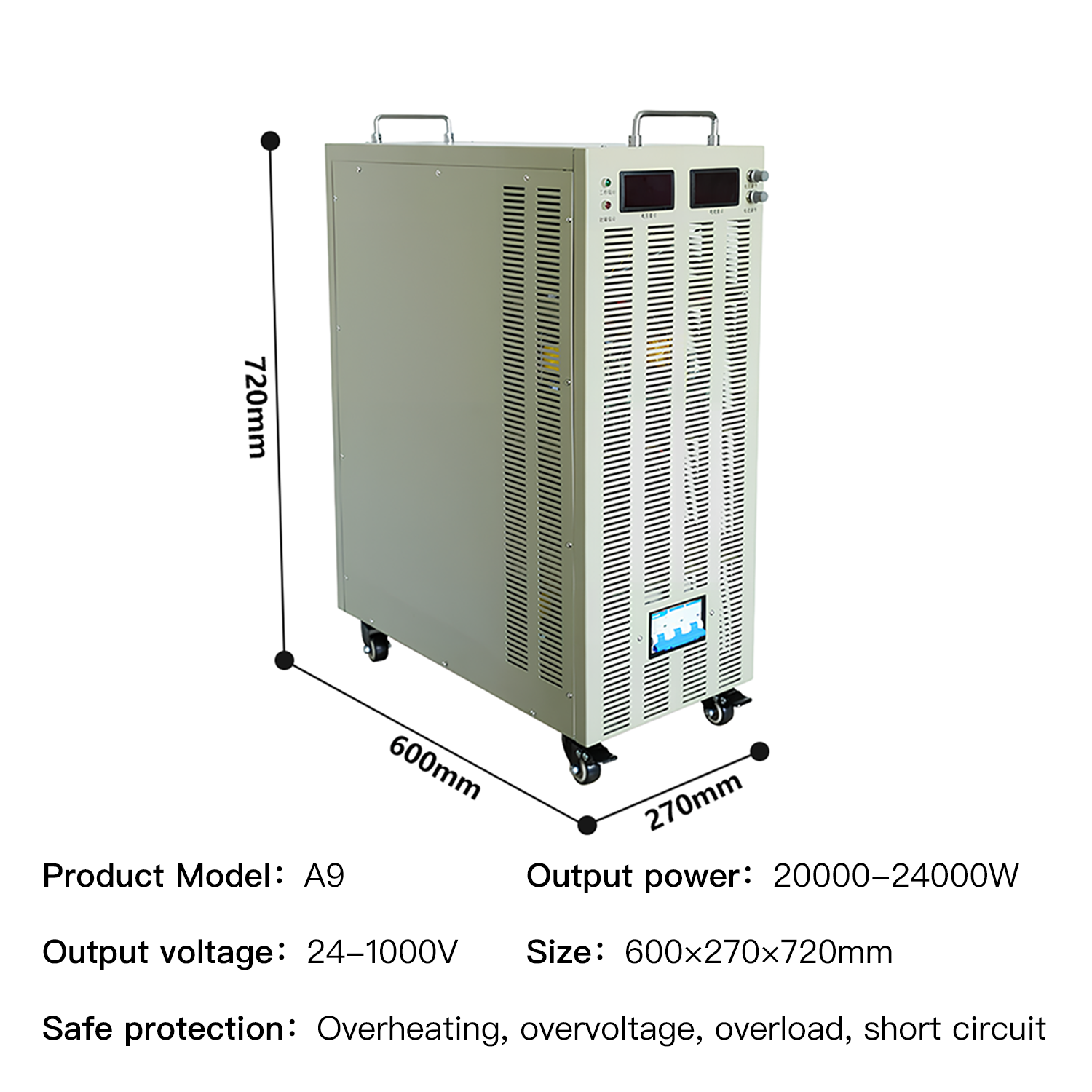

| Power Conversion Type | AC-DC | Product Weight | Approximately 45KG |
| Efficiency | ≥ 88-89% | Carton Dimensions | 770x400x840mm |
| Output Voltage Accuracy | ±1% | - | - |
Before powering on, inspect the switch power supply for any damage incurred during storage and transportation. Check for loose screws, abnormal appearance, disconnected terminals/power cords, or moisture. Address any issues promptly.
The local power switch controls the auxiliary power supply inside the unit. For safety, install an air switch at the power input terminal. Connect the ground wire and input power wire correctly as labeled on the rear panel. Verify that the input voltage matches the manual's specifications.

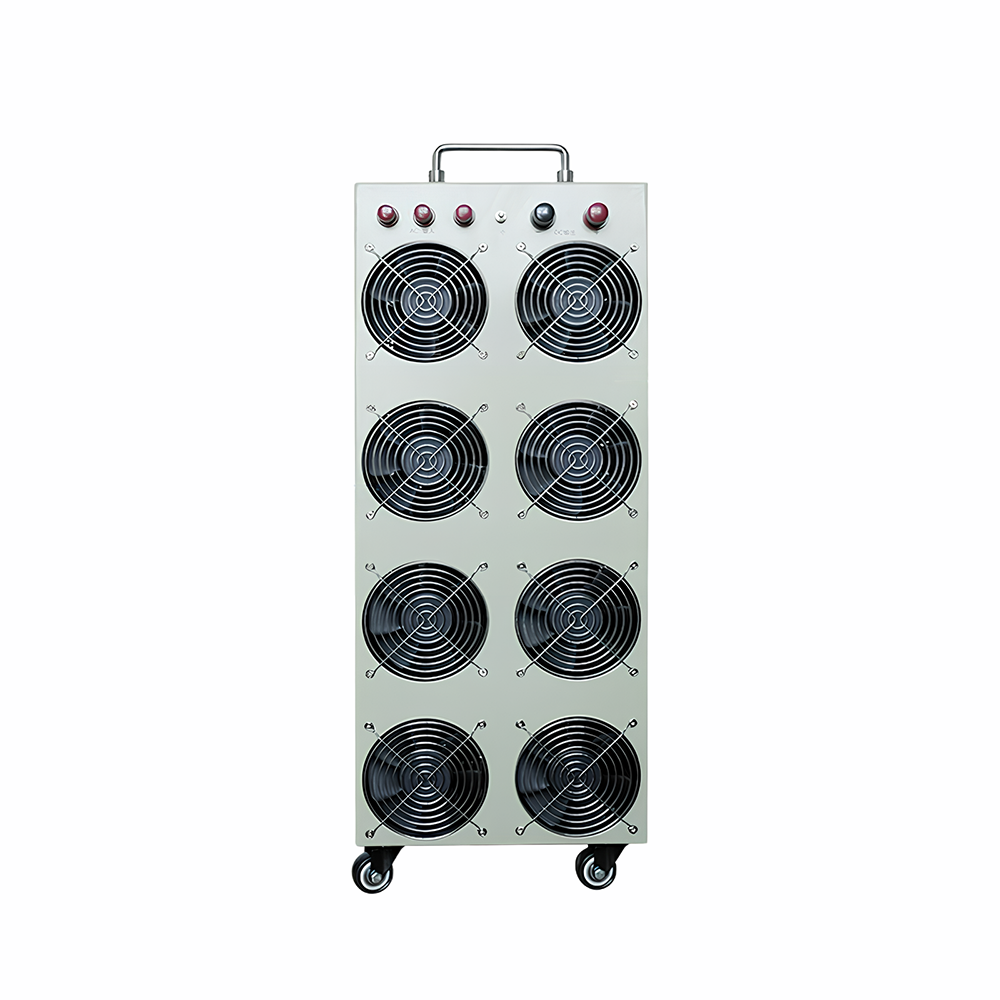

The cooling fan is temperature-controlled and starts when internal temperatures reach the preset threshold. The fan speed dynamically scales with output voltage and current. Keep the fan inlet and outlet clear of obstructions.
If the temperature reaches the overheating shutdown threshold, the machine will auto-stop to prevent damage. It will automatically restart once the temperature cools down.
Ensure the operating environment contains normal levels of dust, acid, or corrosive gases. Avoid placing the unit in conditions with severe vibrations, bumps, rain, or direct sunlight.
Regularly perform dust removal (using dry compressed air) to extend product lifespan. Do not open the casing to dust due to high-voltage hazards inside.
When idle for long periods, store the unit in a dry, ventilated room. If stored for more than 6 months, power on and operate the unit for at least half an hour before use.
Warning: Only connect your load equipment to the power supply after verifying that the power-on test is normal and error-free.
In case of malfunction, immediately cut off the power switch. Double-check all external/internal connections, screws, switches, and knobs. Do not unscrew the casing or attempt repairs yourself due to internal high voltage. Contact technical support promptly for assistance.
A: Yes, it is fully equipped with built-in overvoltage, overcurrent, overheating, and short-circuit protection systems.
A: Yes, reverse protection functions can be integrated as an optional feature for an additional charge.
A: No, for long-term continuous operation, it is recommended to keep the load below 80% of the maximum capacity to ensure durability.
A: Yes, the design features dual control knobs, allowing you to easily adjust both voltage and current settings.
A: Yes, our units are designed and built as fully isolated power supplies.
A: The voltage regulation range starts adjustment from a minimum of 1V.
