Voltmat Power
Voltmat Power
With a professional production facility of 10,000 square meters, we have been specializing in high-power regulated power supplies for 15 years, providing exceptional quality products and excellent after-sales service.
| Parameter | Specification Details | Parameter | Specification Details |
|---|---|---|---|
| Product Name | DC Switching Power Supply | Operating Relative Humidity | 20% ~ 88% |
| Power Rating | 20KW, 24KW | Application Scenarios | Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields |
| Input Voltage | Single-phase/Three-phase 220V±10% 50-60HZ / 110V±10% 50-60HZ / 380V±10% 50-60HZ | Protection Functions | Overcurrent, overvoltage, overheating, short-circuit protection |
| Output Voltage | 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V | Product Features | High stability, high reliability |
| Output Current | Selected power / selected voltage | Warranty Period | 1 Year |

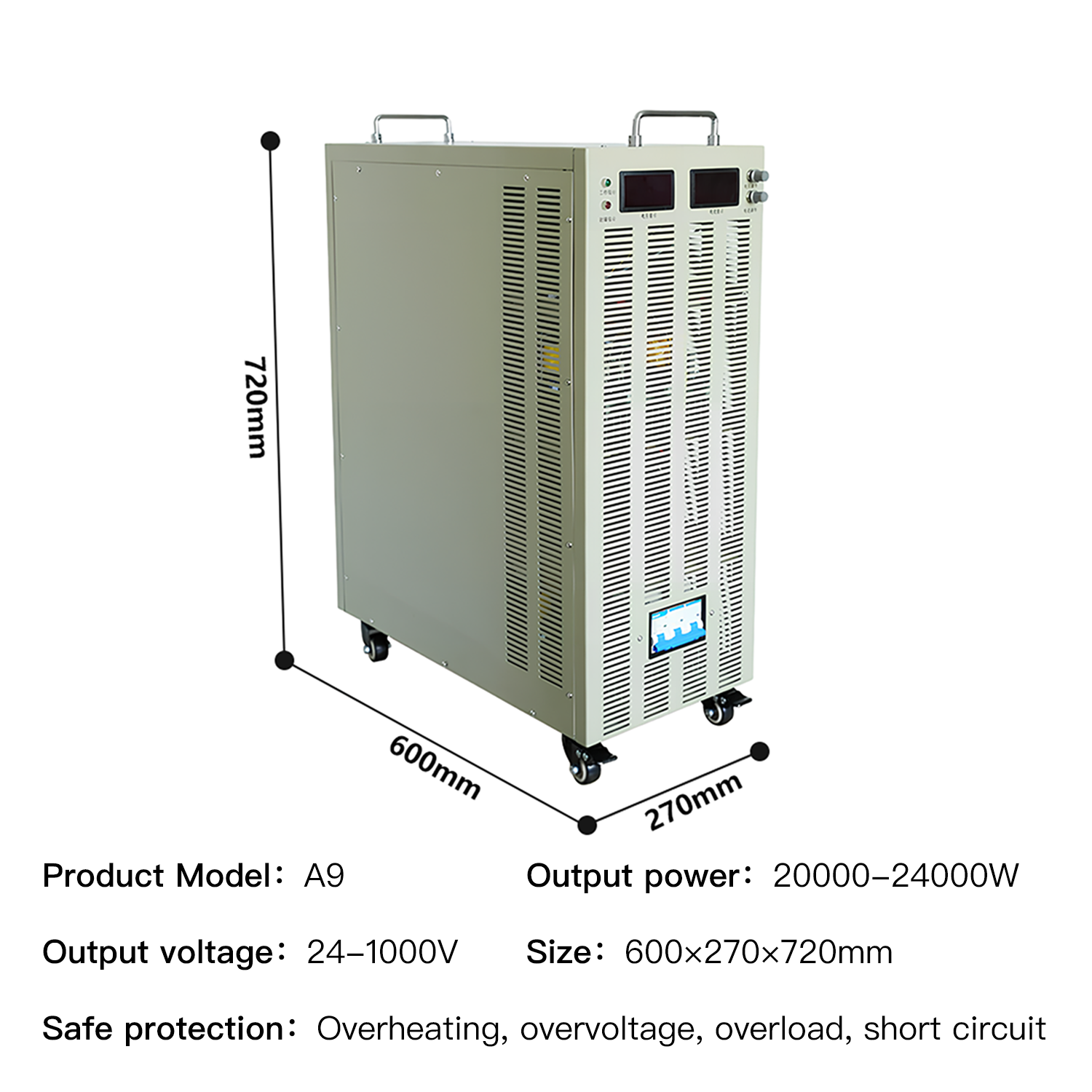

| Power Conversion Type | AC-DC | Product Weight | Approximately 45 kg |
| Efficiency | > 88-89% | Carton Dimensions | 770x400x840mm |
| Output Voltage Accuracy | ±1% | - | - |
Before powering on, check the switch power supply for any damage during transit. Ensure screws are tight, the appearance is normal, power cords and terminals are secure, and components are completely dry.
The local power switch controls the auxiliary power inside the machine. For safety, add an external air switch at the power input terminal. Connect ground and input wires correctly based on the rear panel labels, and verify voltage compatibility.
The cooling fan is temperature-controlled and starts when internal temperatures rise. Fan speed varies with load. Do not block the air inlet and outlet vents during operation.
If the temperature reaches the overheat threshold, the machine will shut down automatically for protection and will automatically resume operation once cooled.
Avoid using the equipment in environments with excessive dust, acid, corrosive gases, severe vibrations, rain, or direct sunlight.
Regular dust removal (using dry compressed air) improves lifespan and reliability. Do not open the casing to prevent damage and avoid internal high-voltage hazards.
If idle for over 6 months, store in a dry, ventilated room and power on the equipment for at least 30 minutes before active use.
Warning: Only connect load equipment to the power supply after verifying a normal, error-free power-on test.
Troubleshooting: If abnormal operation occurs, switch off power immediately. Check internal and external connections, screws, and knob positions. Due to dangerous internal high voltages, do not attempt unauthorized disassembly. Contact technical support promptly to resolve issues.

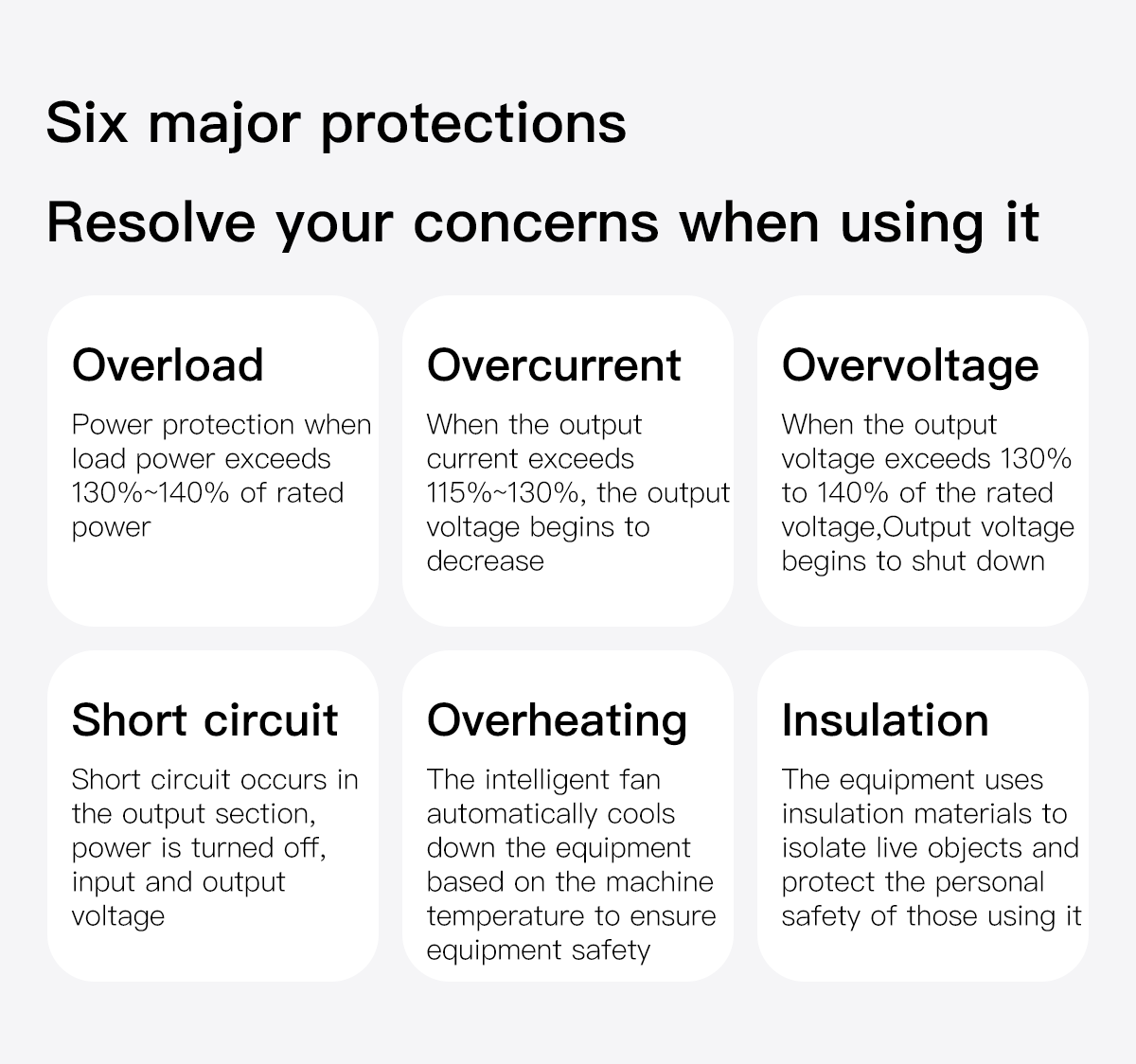

A: Yes, all units are built with full overvoltage, overcurrent, overheating, and short-circuit protection features.
A: Yes, reverse protection can be added as a customized upgrade option.
A: No, we recommend operating the power supply below 80% capacity for long-term continuous use to ensure safety and system longevity.
A: Yes, the system features convenient dual-knob controls for easy adjustment of both voltage and current.
A: Yes, our units are fully isolated switching power supplies.
A: The voltage regulation starts from 1V onwards, providing sufficient and stable power throughout the range.
