800V 5000W Industrial Grade AC-DC Switching Regulated Power Supply with Single Output and 89% Efficiency
800V 5000W Industrial Grade AC-DC Switching Regulated Power Supply with Single Output and 89% Efficiency
800V 5000W Industrial Grade AC-DC Switching Regulated Power Supply with Single Output and 89% Efficiency
800V 5000W Industrial Grade AC-DC Switching Regulated Power Supply with Single Output and 89% Efficiency
800V 5000W Industrial Grade AC-DC Switching Regulated Power Supply with Single Output and 89% Efficiency
1 / 5
800V 5000W Industrial Grade AC-DC Switching Regulated Power Supply with Single Output and 89% Efficiency
800V 5000W Industrial Grade AC-DC Switching Regulated Power Supply with Single Output and 89% Efficiency
800V 5000W Industrial Grade AC-DC Switching Regulated Power Supply with Single Output and 89% Efficiency
800V 5000W Industrial Grade AC-DC Switching Regulated Power Supply with Single Output and 89% Efficiency
800V 5000W Industrial Grade AC-DC Switching Regulated Power Supply with Single Output and 89% Efficiency

800V 5000W Industrial Grade AC-DC Switching Regulated Power Supply with Single Output and 89% Efficiency

Send Inquiry

Product Description

DC Switching Power Supply Banner
DC Switching Power Supply

Product Overview

  • Product Name DC Switching Power Supply
  • Applications Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Built-in Protections Overcurrent, Overvoltage, Overheat, Short Circuit Protection
  • Key Features & Support High stability and reliability | 1-Year Warranty | Approx. 10KG

Product Specifications

Product Name DC Switching Power Supply Operating Humidity 20%~88% RH
Power Rating 5000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields
Input Voltage Single-phase/Three-phase 220V±10% 50-60Hz / 110V±10% 50-60Hz / 380V±10% 50-60Hz Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Power ÷ Output Voltage (calculated by selected power & output voltage) Warranty Period 1 Year
Conversion Type AC-DC Product Weight Approximately 10KG

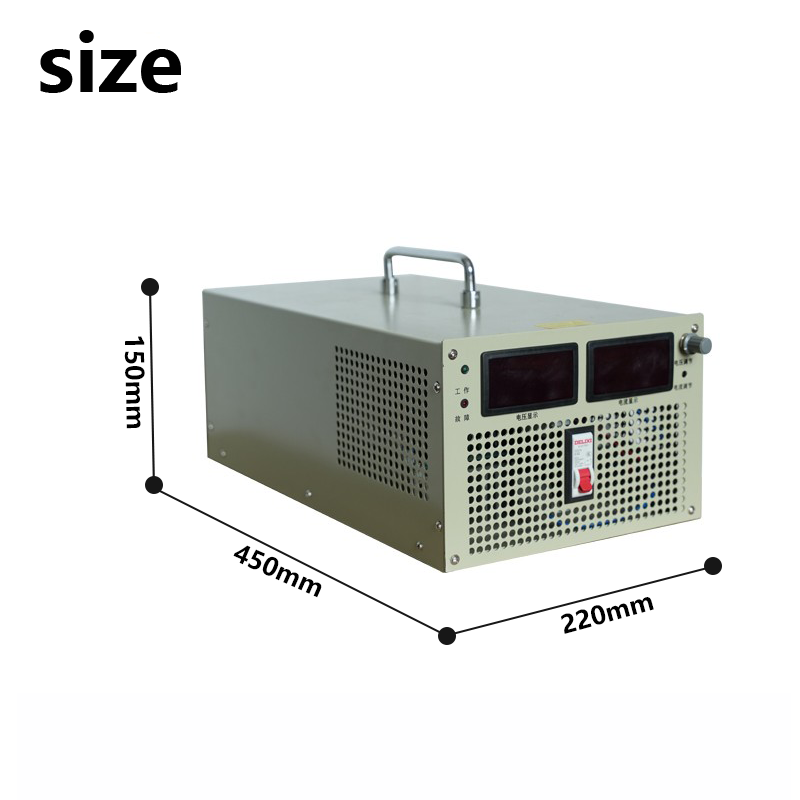

Efficiency >88-89% Carton Dimensions 530x295x240mm
Voltage Accuracy ±1%

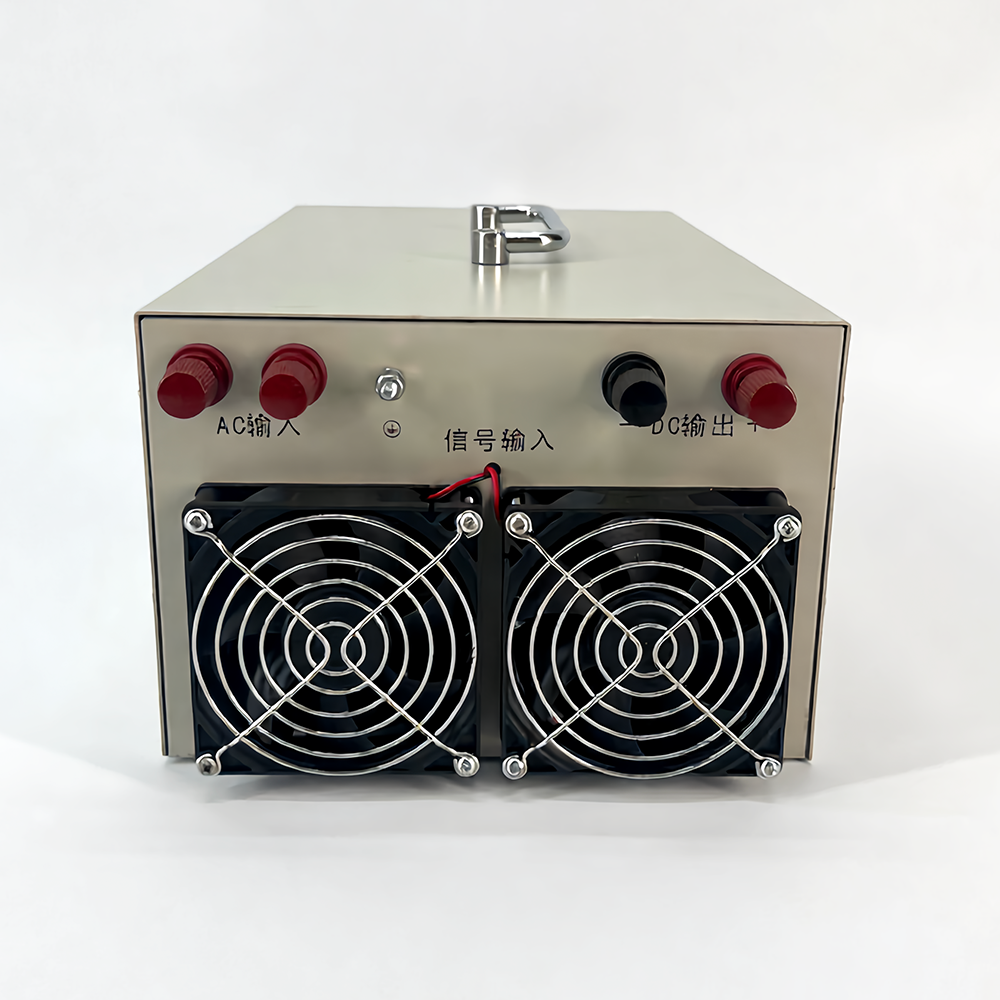

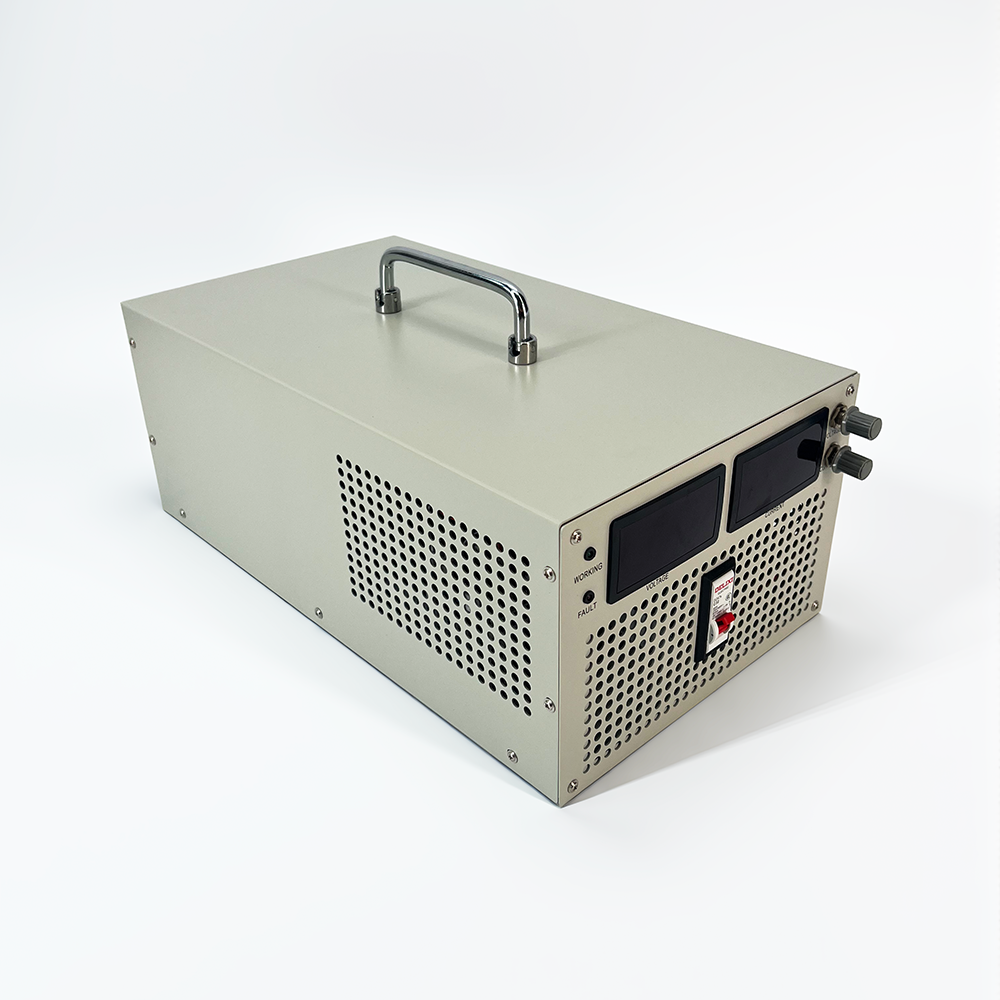

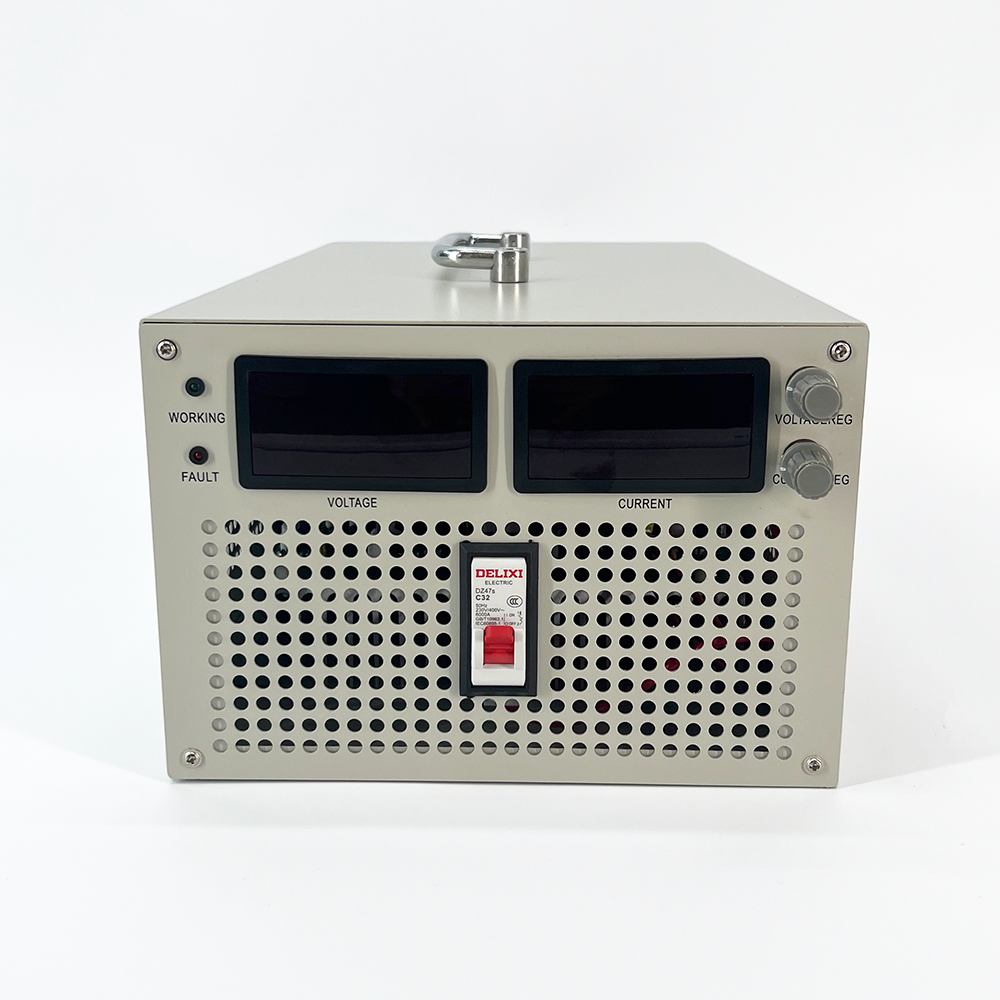

Product Showcase

DC Switching Power Supply Details 1 DC Switching Power Supply Details 2 DC Switching Power Supply Details 3 DC Switching Power Supply Details 4 DC Switching Power Supply Details 5

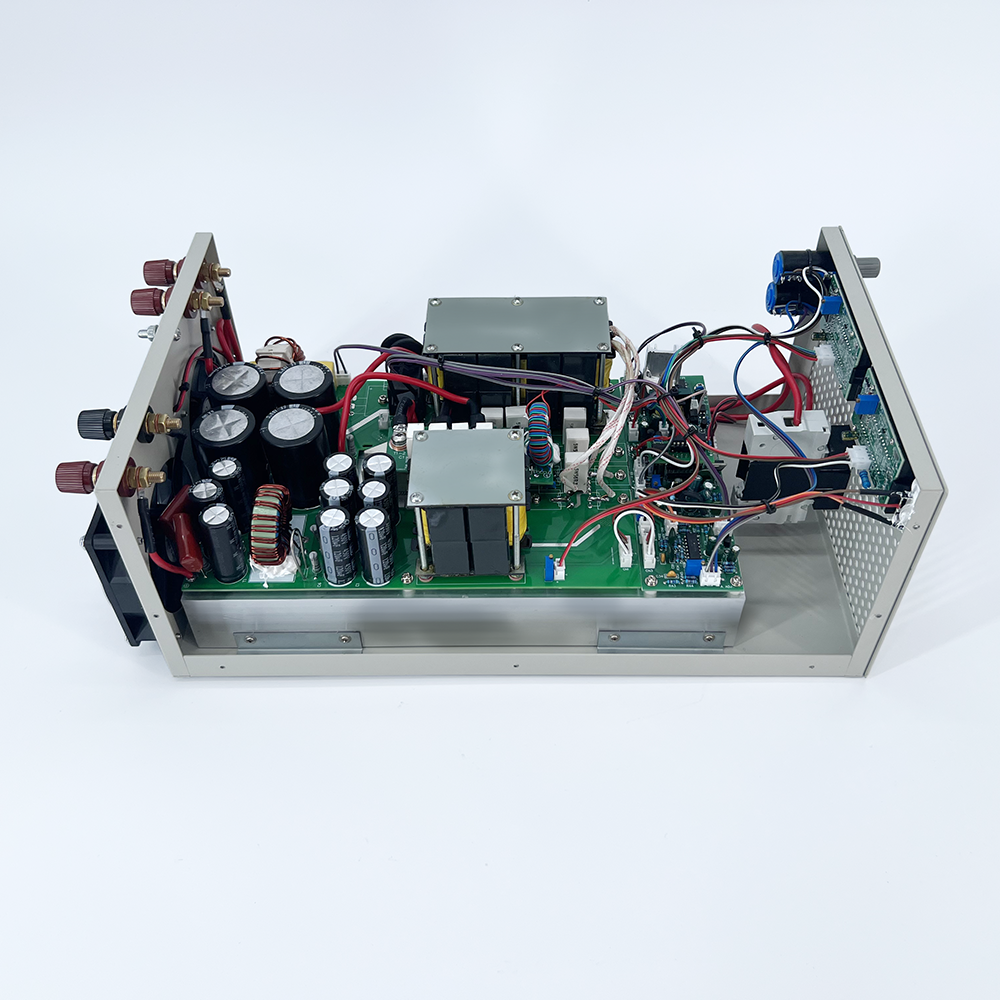

Product Internals & Structure

Interior Component View 1 Interior Component View 2 Interior Component View 3 Interior Component View 4 Interior Component View 5

Product Instructions

1. Pre-Operation Check: Before powering on, inspect the device for any damage during transit. Verify that screws are tight, the outer appearance is intact, and that the power cord and terminals are secure and dry.
2. Power Input Connection: The local power switch controls the auxiliary power supply. For safety, install an air switch at the power input terminal. Connect the ground and input cables as indicated on the rear panel.
3. Cooling Fan Operation: The cooling fan is temperature-controlled and starts automatically when needed. Ensure that the air inlet and outlet vents are completely unblocked during operation.
4. Overheating Protection: If the internal temperature reaches the overheat threshold, the device will shut down automatically and restart once it has cooled down.
5. Operating Environment: Keep the operating area free of high dust, acid, corrosive gases, heavy vibrations, direct rain, and intense sunlight.
6. Routine Maintenance: Periodically blow dry compressed air to clear accumulated dust inside the device, ensuring the casing remains closed unless handled by qualified professionals.
7. Storage Instructions: If stored unused for over 6 months in a ventilated, dry area, turn on the unit and let it idle for at least half an hour.
8. Load Connection: Warning: Ensure a successful power-on test run before connecting any load equipment.
9. Troubleshooting & Support: In case of abnormal operation, immediately switch off the power supply, check connections for tightness, and verify controls are set properly. For unresolved issues, do not open the case due to internal high voltage. Please notify support promptly to resolve the issue.

Frequently Asked Questions (FAQ)

Q: Is there overvoltage, overcurrent, overheating, or short circuit protection?
A: Yes, the unit comes equipped with all of these built-in protection features.
Q: Is there reverse protection?
A: Yes, reverse protection can be added as a custom option for an additional charge.
Q: Can the power supply run at full load for extended periods?
A: No. It is recommended to leave spare capacity. For continuous, long-term operations, keep the load below 80% of full capacity.
Q: How convenient is it to adjust the voltage and current?
A: Very convenient. Adjustments can be made easily using the dual analog knobs.
Q: Is this high-power system fully isolated?
A: Yes, our power supplies are fully isolated design.
Q: What is the regulation start voltage and output performance?
A: Voltage regulation starts from 1V, and it delivers full, sufficient output power.
