60V 3000W AC-DC Power Supply Module with Single Output 12V-1000V for Industrial Electrical Equipment
60V 3000W AC-DC Power Supply Module with Single Output 12V-1000V for Industrial Electrical Equipment
60V 3000W AC-DC Power Supply Module with Single Output 12V-1000V for Industrial Electrical Equipment
60V 3000W AC-DC Power Supply Module with Single Output 12V-1000V for Industrial Electrical Equipment
60V 3000W AC-DC Power Supply Module with Single Output 12V-1000V for Industrial Electrical Equipment
1 / 5
60V 3000W AC-DC Power Supply Module with Single Output 12V-1000V for Industrial Electrical Equipment
60V 3000W AC-DC Power Supply Module with Single Output 12V-1000V for Industrial Electrical Equipment
60V 3000W AC-DC Power Supply Module with Single Output 12V-1000V for Industrial Electrical Equipment
60V 3000W AC-DC Power Supply Module with Single Output 12V-1000V for Industrial Electrical Equipment
60V 3000W AC-DC Power Supply Module with Single Output 12V-1000V for Industrial Electrical Equipment

60V 3000W AC-DC Power Supply Module with Single Output 12V-1000V for Industrial Electrical Equipment

Send Inquiry

Product Description

DC Regulated Power Supply Banner
DC Switching Power Supply Overview

Product Features & Overview

  • Product Name: DC Switching Power Supply
  • Application: Widely used in power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application sites.
  • Protection: Built-in Overcurrent, Overvoltage, Overheat, and Short Circuit Protection.
  • Features: Engineered for high stability and reliability.
  • Warranty: 1 Year.
  • Weight: Approximately 10KG.

Technical Diagrams & Interfaces

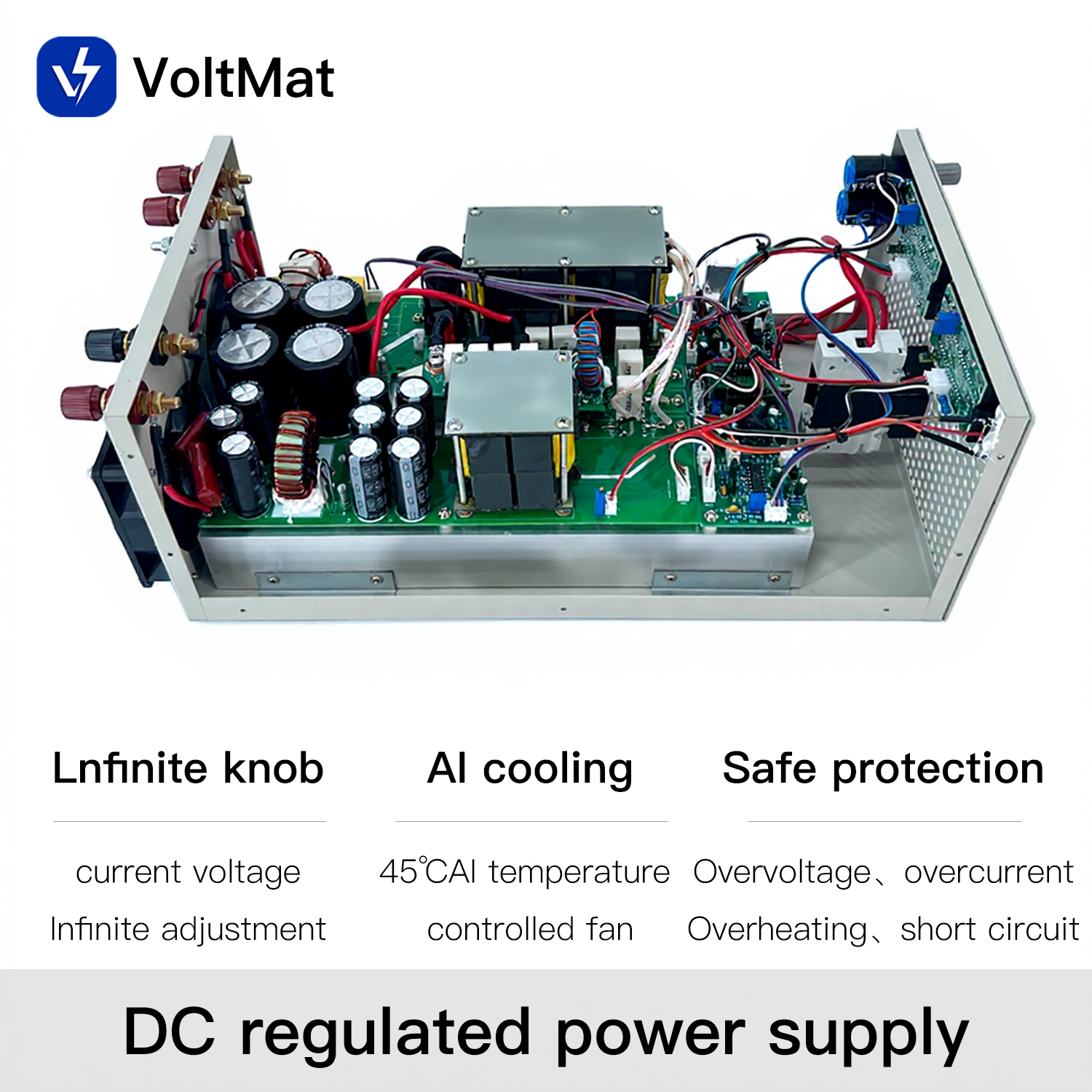

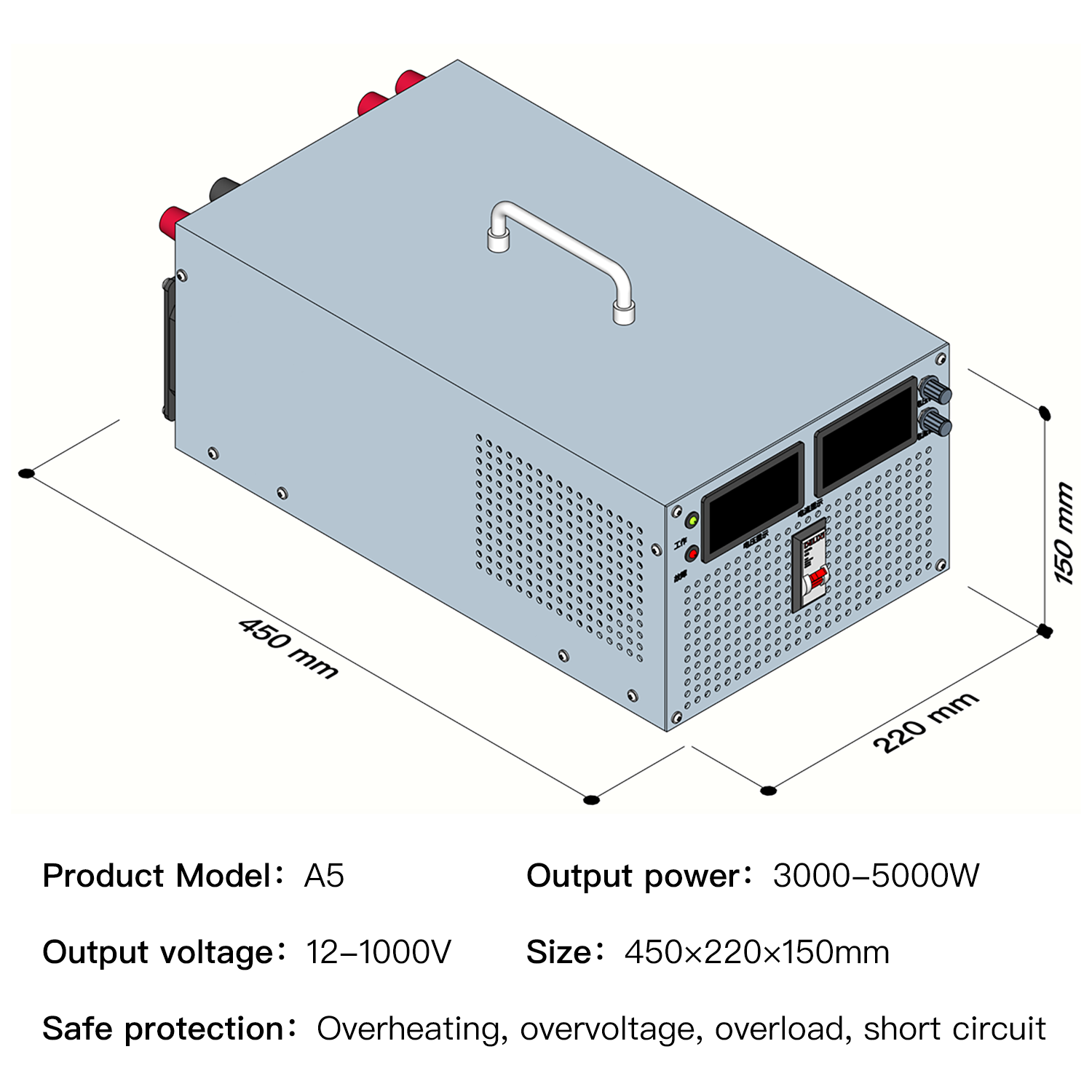

DC Switching Power Supply Detail 1
DC Switching Power Supply Detail 2
DC Switching Power Supply Detail 3
DC Switching Power Supply Detail 4
DC Switching Power Supply Detail 5

Technical Specifications

Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 3000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase / Three-phase
220V±10% 50-60HZ / 110V±10% 50-60HZ / 380V±10% 50-60HZ		 Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection

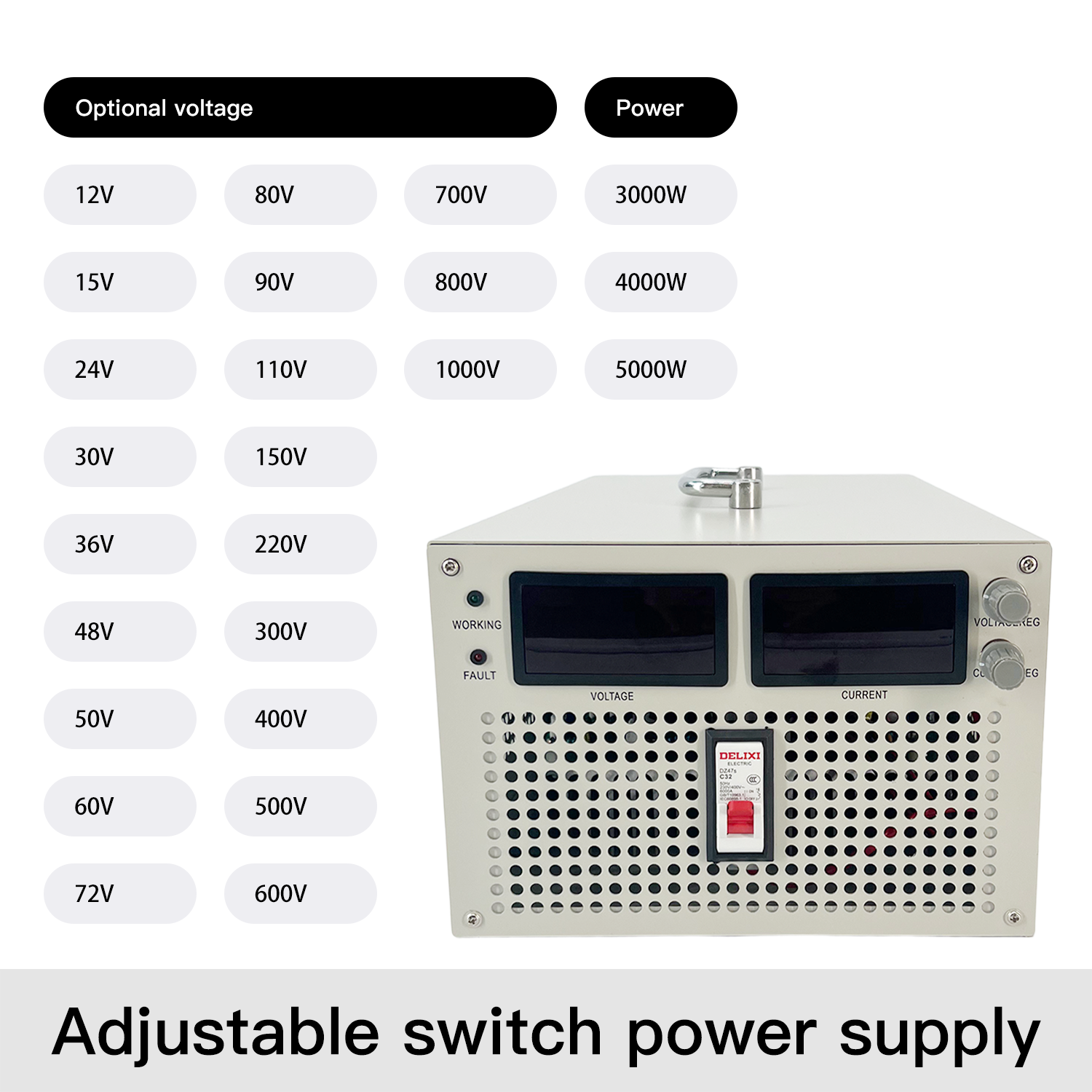

Output Voltage 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V, 700V, 800V, 1000V Product Features High stability, high reliability
Output Current Power ÷ Output Voltage (calculated by selected power & output voltage) Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 10KG
Efficiency ≥88-89% Carton Dimensions 530x295x240mm
Output Voltage Accuracy ±1% - -

Product Gallery & Details

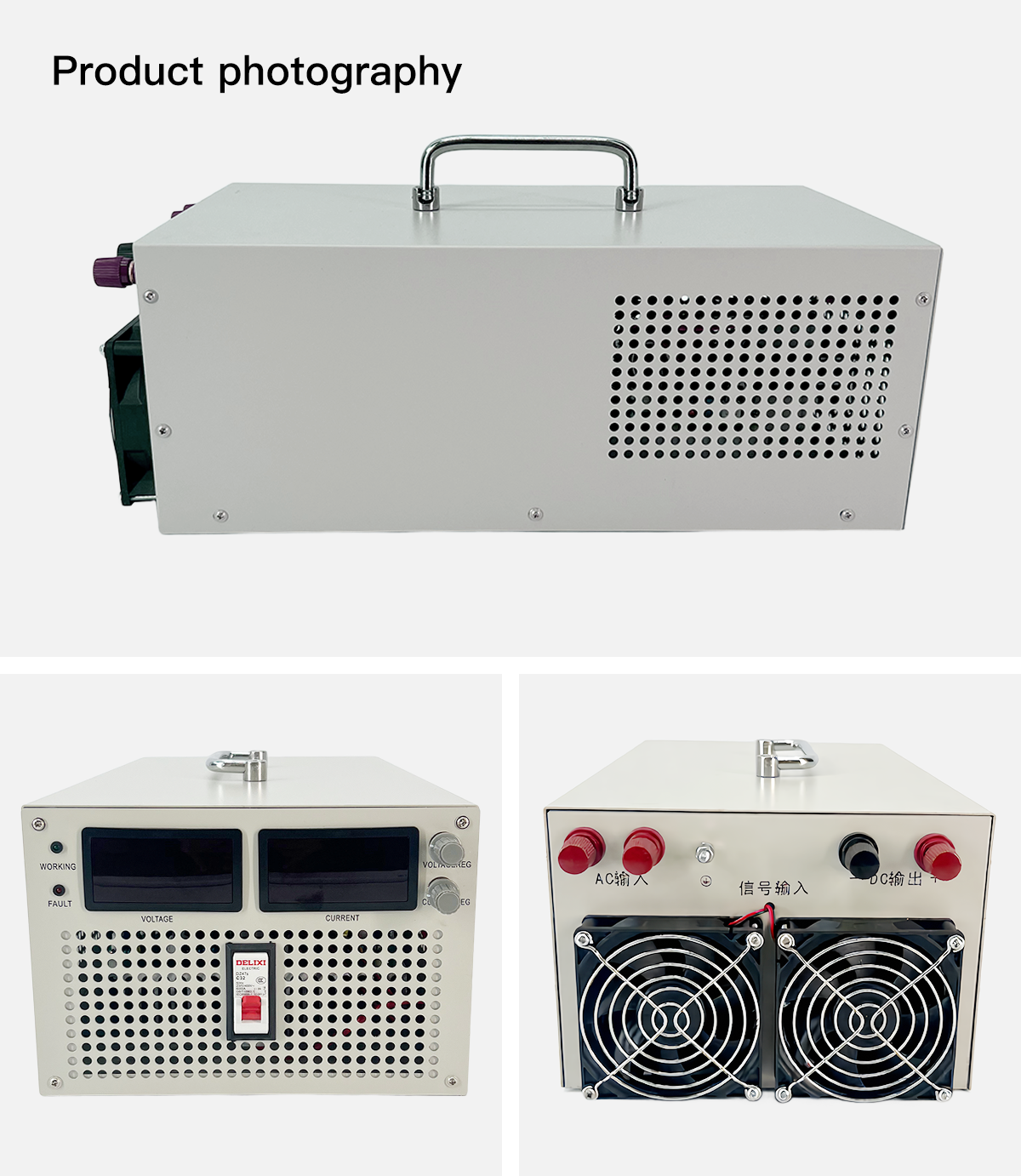

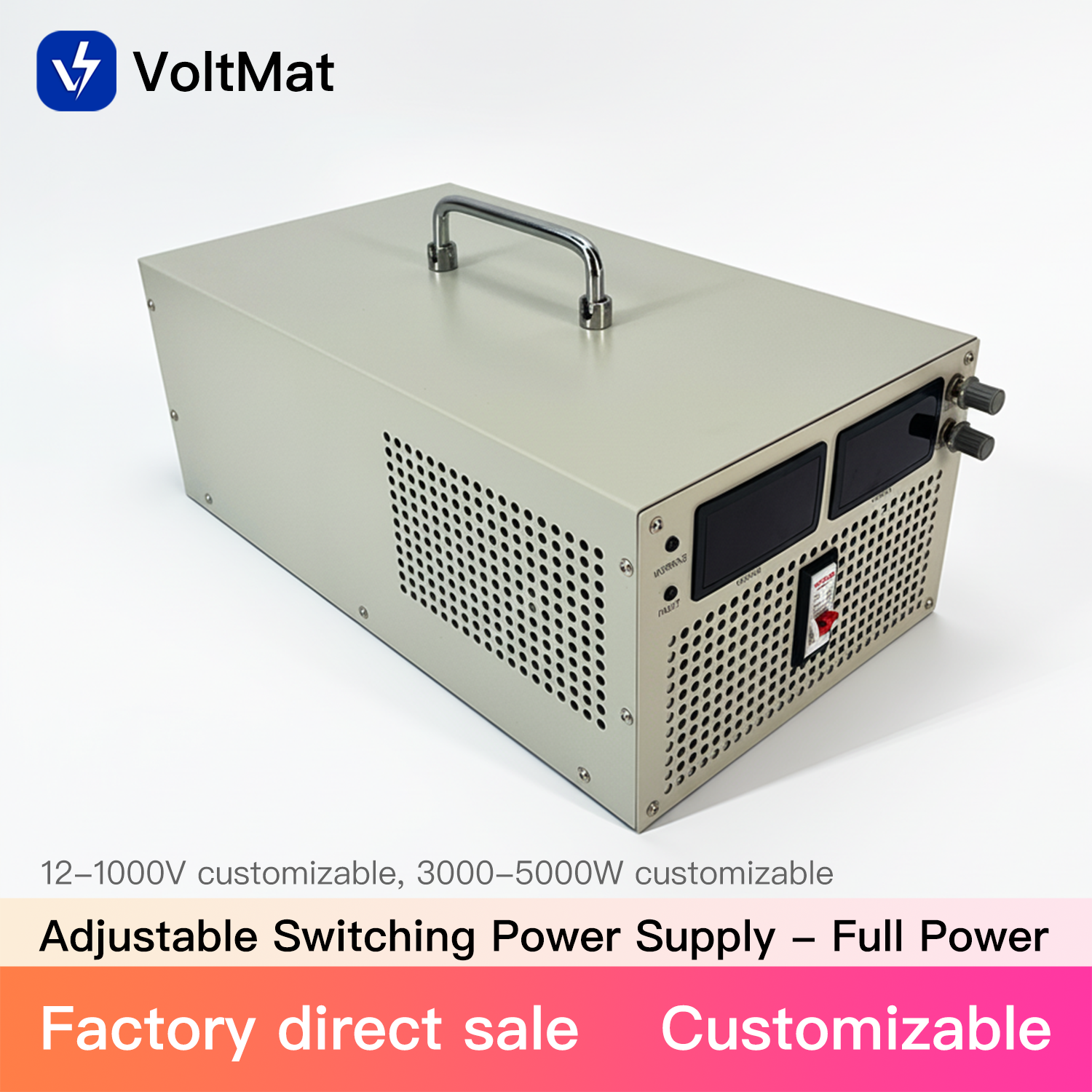

DC Power Supply Show 1
DC Power Supply Show 2
DC Power Supply Show 3
DC Power Supply Show 4
DC Power Supply Show 5

Product Instructions

1
Before powering on, inspect the device for transit damage, check for loose screws, external abnormalities, loose power cords/terminals, or signs of dampness. Address any issue before operation.
2
The local power switch controls the internal auxiliary power. For safety, install an air switch at the power input terminal. Properly connect the ground wire and input power wire according to the rear panel label. Check if the input voltage matches the instruction manual.
3
The cooling fan is temperature-controlled and starts when internal temperatures rise. Speed varies with output voltage and current. Keep the fan inlet and outlet clear of obstructions during operation.
4
If internal temperatures reach the threshold limit, the device automatically shuts down for protection. It resumes operation automatically after cooling down.
5
Avoid using the equipment in environments exceeding standard levels of dust, acid, or corrosive elements, and prevent exposure to severe vibrations, rain, or direct sunlight.
6
Perform regular dust removal using dry compressed air to extend the lifespan. Do not open the casing to prevent damage to internal high-voltage components.
7
If stored idle for more than 6 months in a dry, ventilated room, the power supply must be powered on and run for at least half an hour before use.
8
Warning: Only connect load equipment to the output once the initial power-on test is confirmed stable and error-free.
9
If abnormal operation occurs, shut off the power immediately. Verify all external connections, screws, and knob settings. Do not open the casing or attempt repair without professional knowledge due to high-voltage hazards inside the unit.

Frequently Asked Questions

Does the power supply have overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the system features built-in protection mechanisms for overvoltage, overcurrent, overheating, and short circuits.
Can reverse polarity protection be provided?
Yes, reverse polarity protection can be integrated upon request for an additional customization charge.
Can it run at full output capacity continuously for long periods?
It is recommended to use the power supply with excess overhead margin. For continuous long-term operation, keep the load demand below 80% of the maximum capacity.
Is the adjustment of voltage and current straightforward?
Yes, the device is configured with independent dual analog adjustment knobs for easy and fine adjustment of voltage and current.
Are the high-power models electrically isolated?
Yes, this power supply utilizes a fully isolated design to secure high reliability and safety.
What is the minimum starting limit for voltage regulation?
The output voltage regulation starts working from 1V.
