500V 5000W High Efficiency AC-DC DC Stabilized Switching Power Supply Single 24V-1000V Options for Heavy-Duty Industrial Use
500V 5000W High Efficiency AC-DC DC Stabilized Switching Power Supply Single 24V-1000V Options for Heavy-Duty Industrial Use
500V 5000W High Efficiency AC-DC DC Stabilized Switching Power Supply Single 24V-1000V Options for Heavy-Duty Industrial Use
500V 5000W High Efficiency AC-DC DC Stabilized Switching Power Supply Single 24V-1000V Options for Heavy-Duty Industrial Use
500V 5000W High Efficiency AC-DC DC Stabilized Switching Power Supply Single 24V-1000V Options for Heavy-Duty Industrial Use
1 / 5
500V 5000W High Efficiency AC-DC DC Stabilized Switching Power Supply Single 24V-1000V Options for Heavy-Duty Industrial Use
500V 5000W High Efficiency AC-DC DC Stabilized Switching Power Supply Single 24V-1000V Options for Heavy-Duty Industrial Use
500V 5000W High Efficiency AC-DC DC Stabilized Switching Power Supply Single 24V-1000V Options for Heavy-Duty Industrial Use
500V 5000W High Efficiency AC-DC DC Stabilized Switching Power Supply Single 24V-1000V Options for Heavy-Duty Industrial Use
500V 5000W High Efficiency AC-DC DC Stabilized Switching Power Supply Single 24V-1000V Options for Heavy-Duty Industrial Use

500V 5000W High Efficiency AC-DC DC Stabilized Switching Power Supply Single 24V-1000V Options for Heavy-Duty Industrial Use

Send Inquiry

Product Description

DC Switching Power Supply Banner
DC Switching Power Supply

Product Overview

Product Name: DC Switching Power Supply

Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.

Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection

Features: High stability and reliability

Warranty: 1 year

Weight: Approximately 10KG

Product Specifications
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 5000W Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC fields
Input Voltage Single-phase/Three-phase
220V±10% 50-60HZ / 110V±10% 50-60HZ / 380V±10% 50-60HZ		 Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection
Output Voltage 12V, 15V, 24V, 30V, 36V, 48V, 50V, 60V, 72V, 80V, 90V, 110V, 150V, 220V, 300V, 400V, 500V, 600V, 700V, 800V, 1000V Product Features High stability, high reliability
Output Current Power ÷ Output Voltage (calculated by selected power & output voltage) Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 10KG
Efficiency ≥88-89% Carton Dimensions 530x295x240mm
Output Voltage Accuracy ±1%
Detailed Product Views

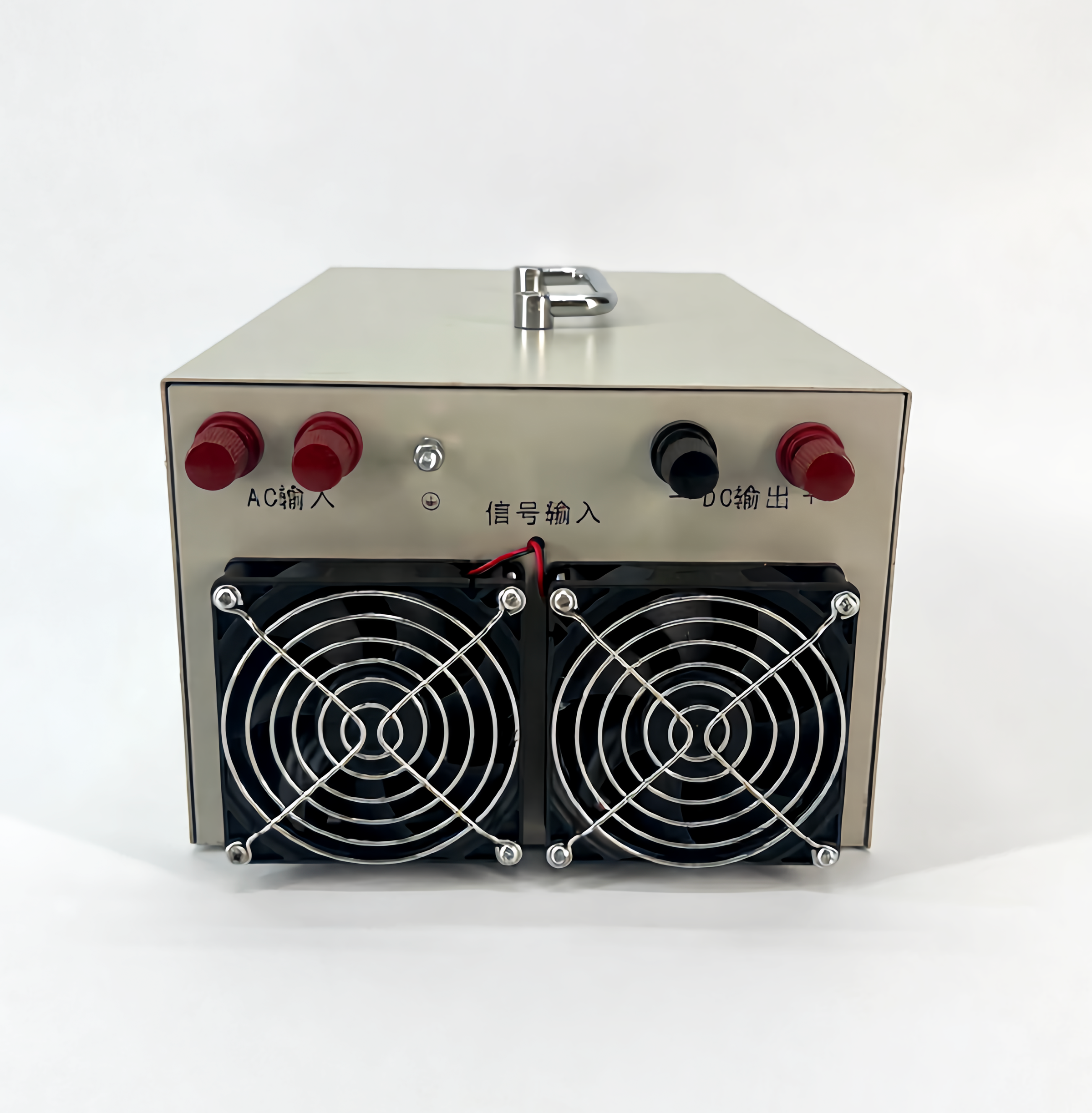

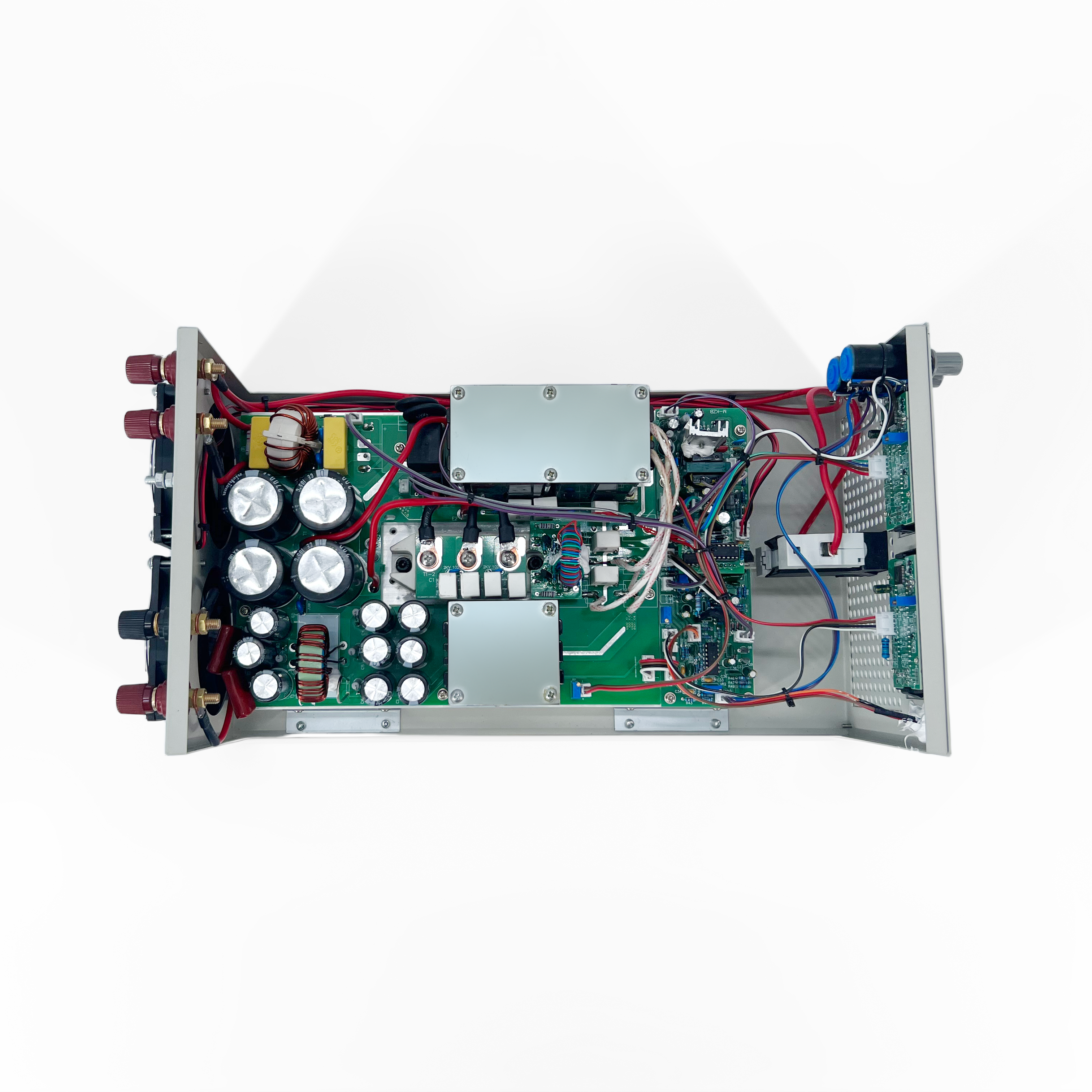

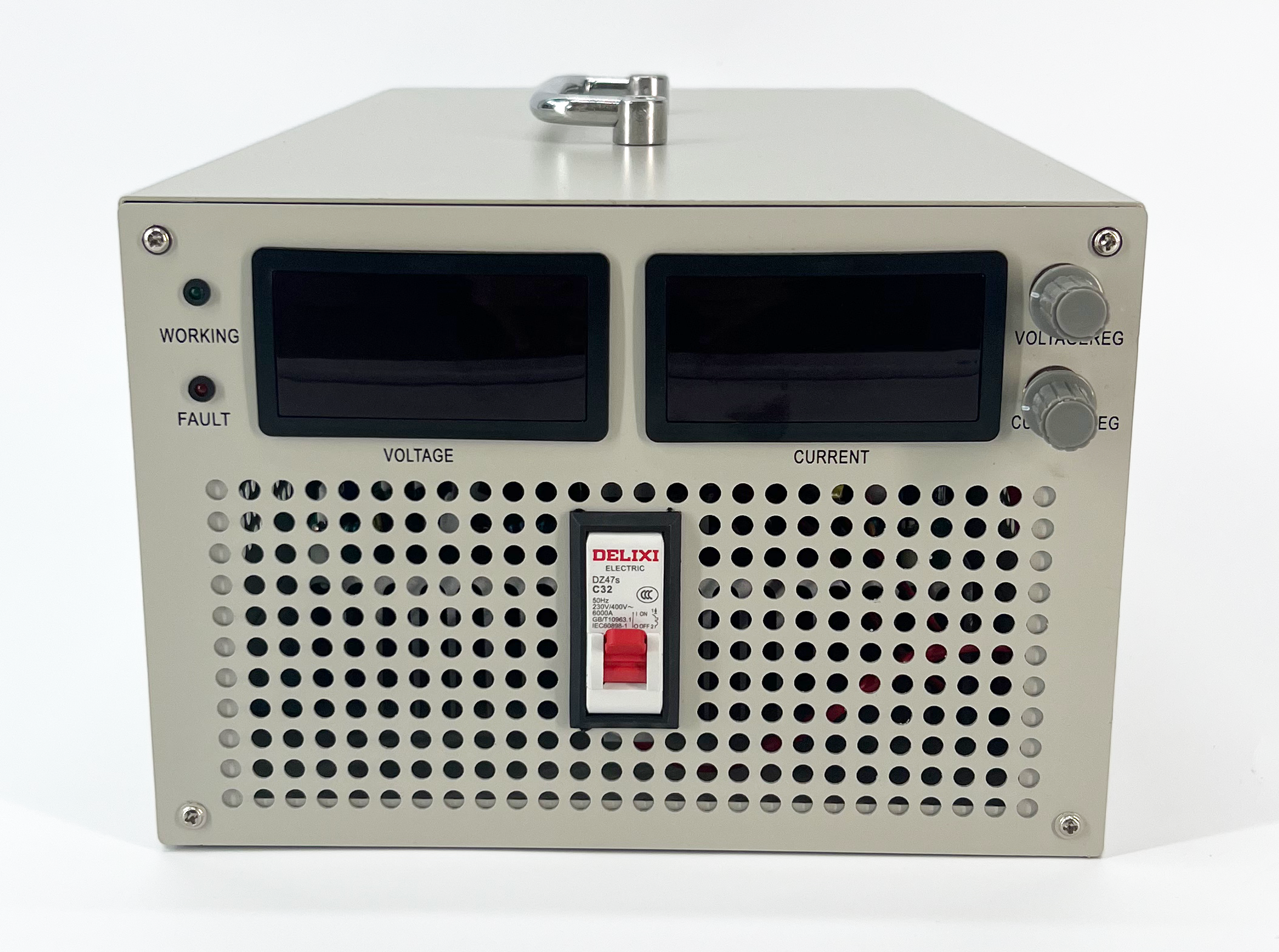

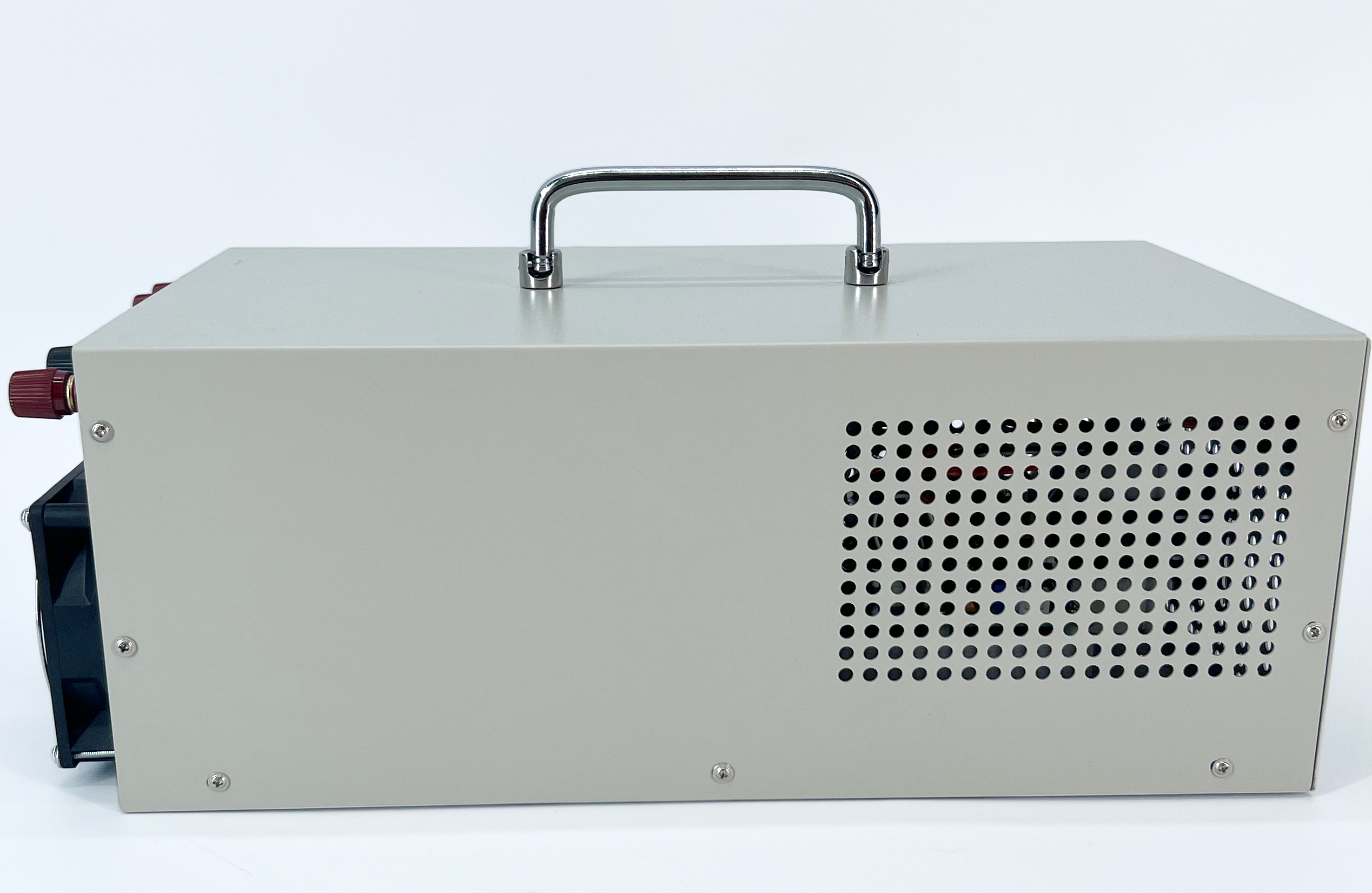

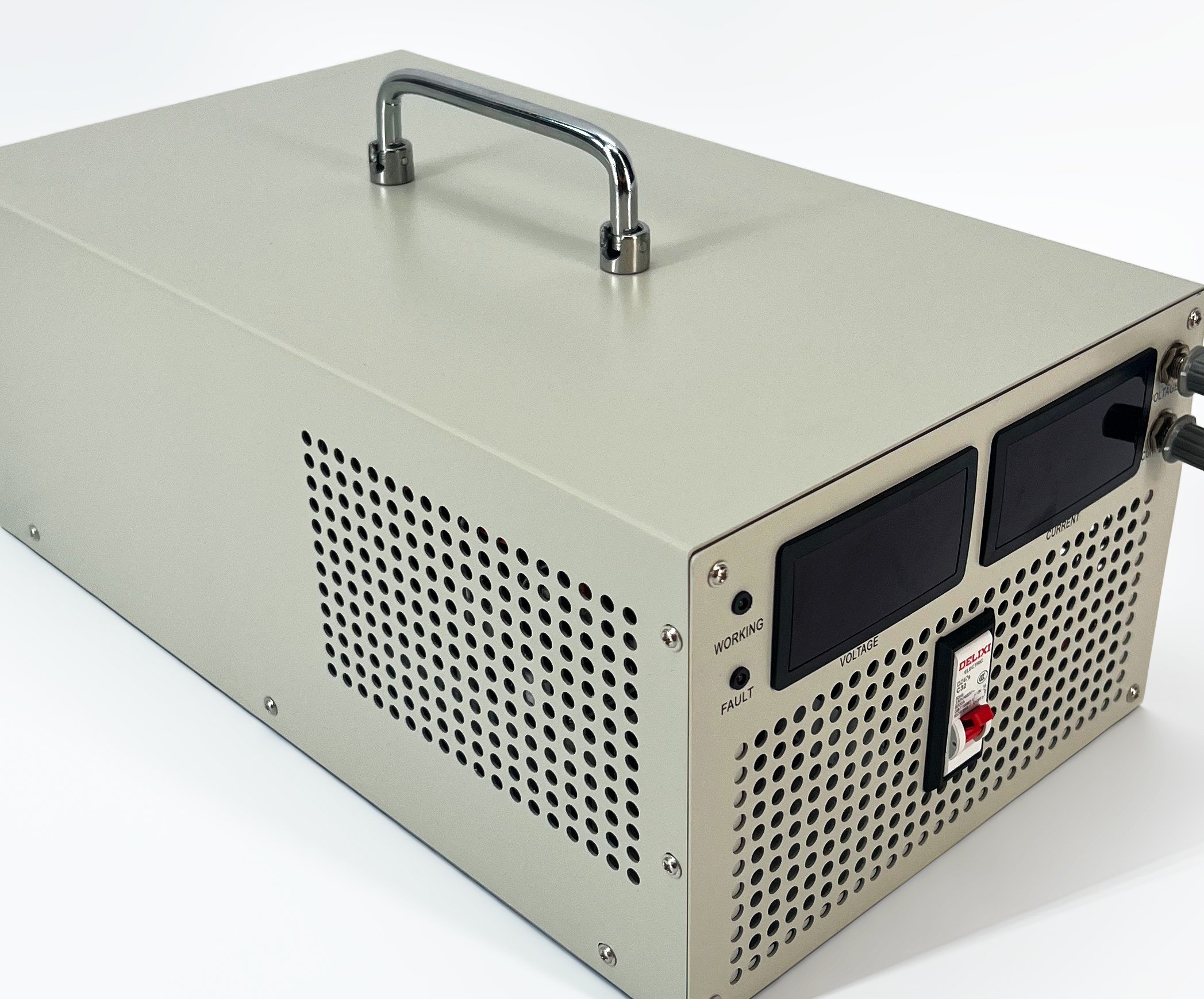

Detail View 1
Detail View 2
Detail View 3
Detail View 4
Detail View 5
Production Showcase
Production Image 1
Production Image 2
Production Image 3
Production Image 4
Production Image 5
Product Instructions
1
Before powering on, check the stored and transported switch power supply. Inspect for any damage during transportation, such as loose screws, abnormal appearance, disconnected power cords or terminals, and dampness. Address any issues promptly.
2
The local power switch controls the auxiliary power supply inside the machine. For safety reasons, please add an air switch to the power input terminal to control the power input. Connect the ground wire and input power wire according to the label on the rear panel. Ensure that the input power supply matches the voltage indicated in the manual.
3
The cooling fan is temperature controlled. It starts running when the internal temperature exceeds the configured threshold. The fan speed varies with output voltage and current. Keep the inlet and outlet of the fan clear.
4
If the internal temperature reaches the threshold for overheating shutdown, the machine will automatically stop working to prevent damage. It will resume operation automatically once the temperature cools down.
5
Ensure the operating environment is clean. Dust, acid, corrosive gases, or substances in the air should not exceed normal levels. Avoid direct sunlight, severe vibration, bumps, and rain.
6
Regularly clean the dust inside the unit to improve product lifespan and reliability. Dry compressed air can be used for cleaning. Due to high internal voltage, do not open the casing to prevent damage to internal components.
7
When stored idle for long periods, keep the power equipment in a dry, ventilated room. If stored for over 6 months, run the power supply for at least half an hour before use.
8
Warning: Only connect load equipment to the power supply after verifying that the power-on test is normal and error-free.
9
Handling Malfunctions: If abnormal operation is detected, cut off the power switch immediately. Check internal and external connections for loose screws or incorrect settings. Do not open the casing or attempt repairs without professional knowledge due to high internal voltage. Contact technical support for assistance.
Frequently Asked Questions (FAQ)
Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply is designed with integrated overvoltage, overcurrent, overheating, and short-circuit protection systems.
Is there reverse polarity protection?
Yes, reverse protection can be configured as an optional feature.
Can it be used at full power for a long duration?
No, the power supply should be used with excess capacity. Operating at below 80% capacity is recommended for continuous, long-term use.
Is it easy to adjust the output voltage and current?
Yes, both parameters can be adjusted easily and accurately using the dual knob controls.
Is the high-power power supply isolated?
Yes, our systems are built with a fully isolated output design.
What is the voltage regulation range?
The voltage regulation range starts from 1V up to the maximum rated voltage.
