24000W AC-DC Adjustable Voltage Regulating Switching Power Supply with 24V-1000V Options Single Output 50/60Hz
24000W AC-DC Adjustable Voltage Regulating Switching Power Supply with 24V-1000V Options Single Output 50/60Hz
24000W AC-DC Adjustable Voltage Regulating Switching Power Supply with 24V-1000V Options Single Output 50/60Hz
24000W AC-DC Adjustable Voltage Regulating Switching Power Supply with 24V-1000V Options Single Output 50/60Hz
24000W AC-DC Adjustable Voltage Regulating Switching Power Supply with 24V-1000V Options Single Output 50/60Hz
1 / 5
24000W AC-DC Adjustable Voltage Regulating Switching Power Supply with 24V-1000V Options Single Output 50/60Hz
24000W AC-DC Adjustable Voltage Regulating Switching Power Supply with 24V-1000V Options Single Output 50/60Hz
24000W AC-DC Adjustable Voltage Regulating Switching Power Supply with 24V-1000V Options Single Output 50/60Hz
24000W AC-DC Adjustable Voltage Regulating Switching Power Supply with 24V-1000V Options Single Output 50/60Hz
24000W AC-DC Adjustable Voltage Regulating Switching Power Supply with 24V-1000V Options Single Output 50/60Hz

24000W AC-DC Adjustable Voltage Regulating Switching Power Supply with 24V-1000V Options Single Output 50/60Hz

Send Inquiry

Product Description

DC Switching Power Supply Overview
DC Switching Power Supply Details
DC Switching Power Supply Features

Product Overview

  • Product Name: DC Switching Power Supply
  • Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
  • Protection: Equipped with Overcurrent, Overvoltage, Overheat, and Short Circuit Protection.
  • Key Features: Engineered for high stability and reliability.
  • Warranty: 1 year warranty.
  • Weight: Approximately 45KG.
Product Detail Views

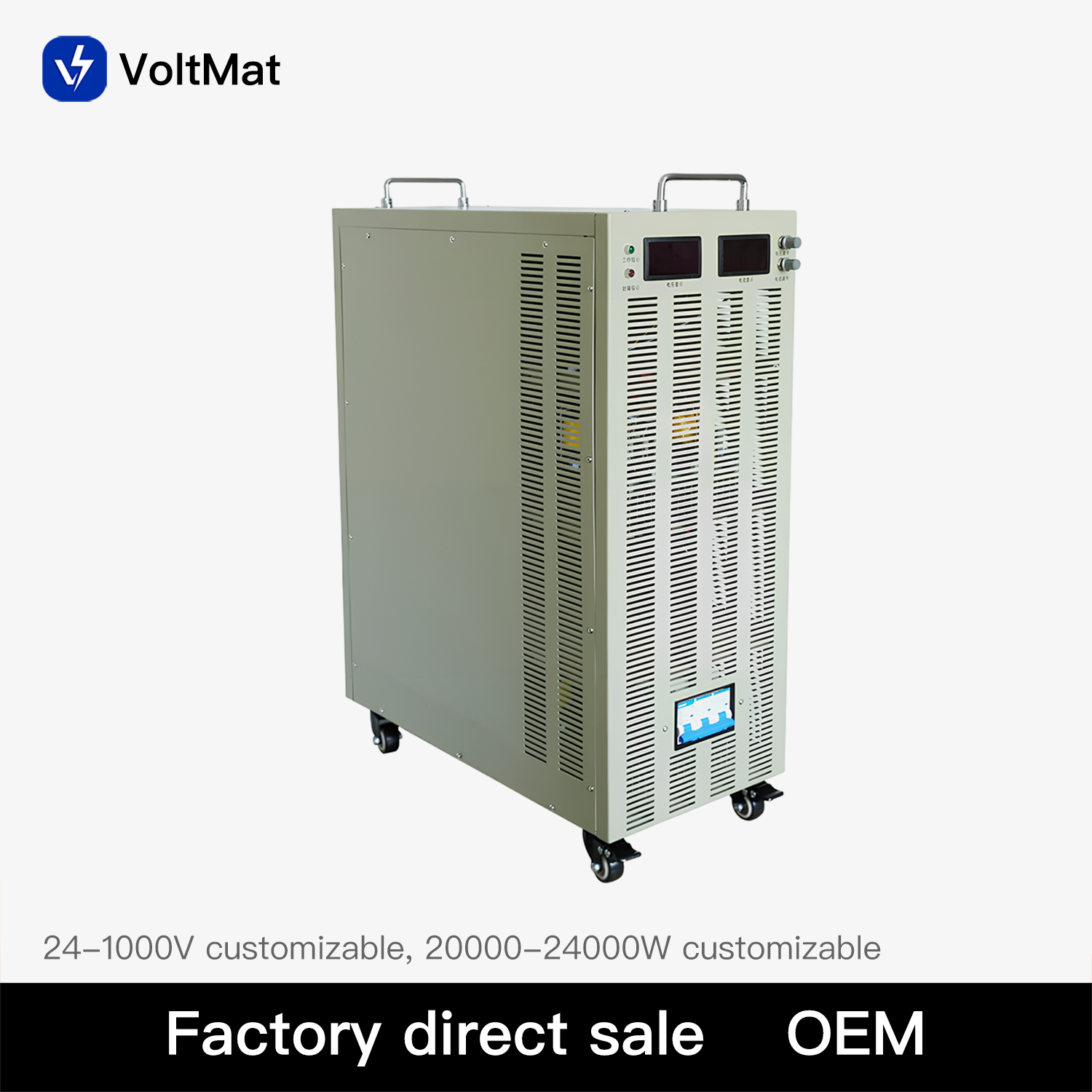

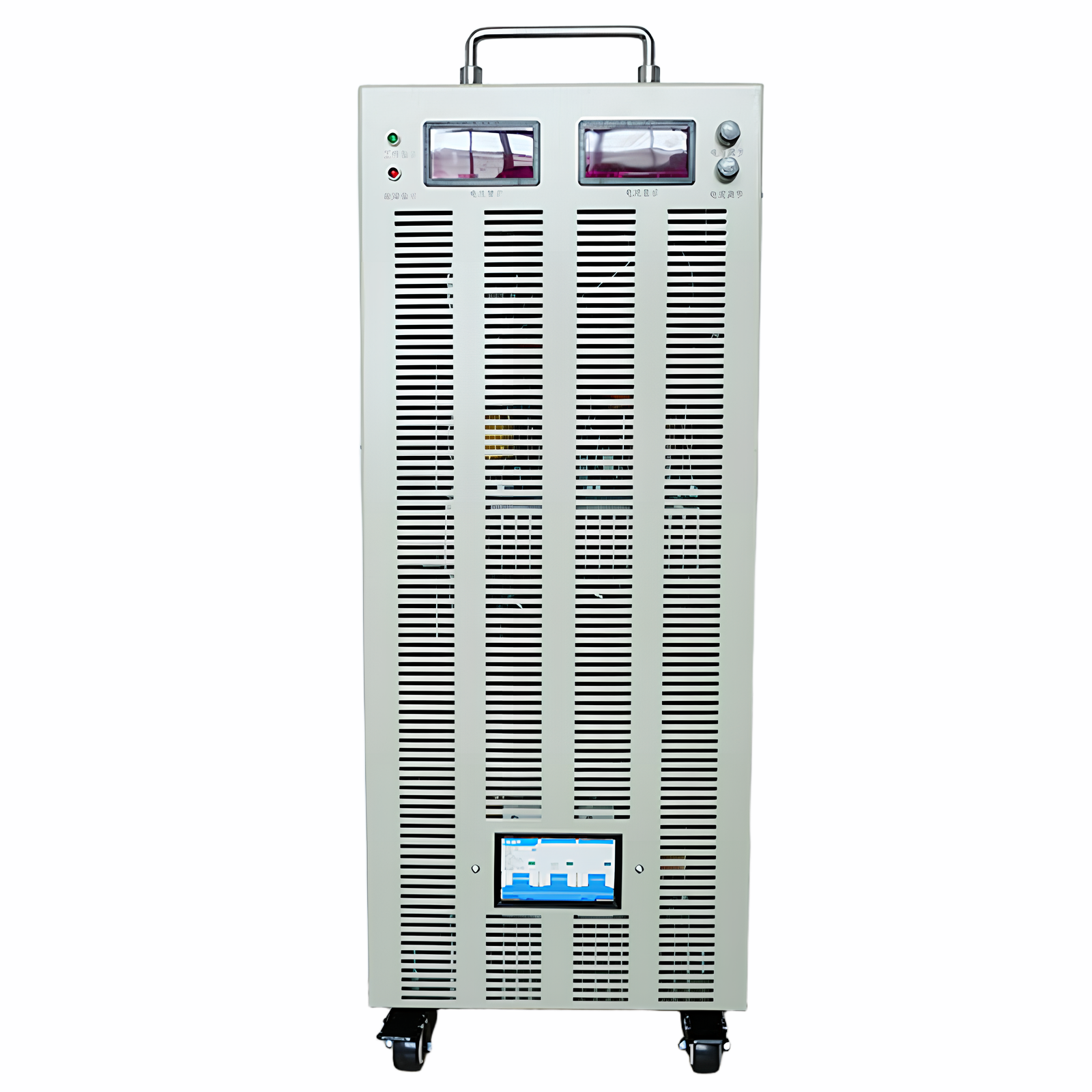

DC Power Supply Angle 1
DC Power Supply Angle 2
DC Power Supply Angle 3
DC Power Supply Angle 4
DC Power Supply Angle 5
Technical Specifications
Product Name DC Switching Power Supply Operating Relative Humidity 20%~88%
Power Rating 20KW, 24KW Application Scenarios Power electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields
Input Voltage Single-phase/Three-phase 220V±10% 50-60HZ, 110V±10% 50-60HZ, 380V±10% 50-60HZ Protection Functions Overcurrent, overvoltage, overheating, short-circuit protection

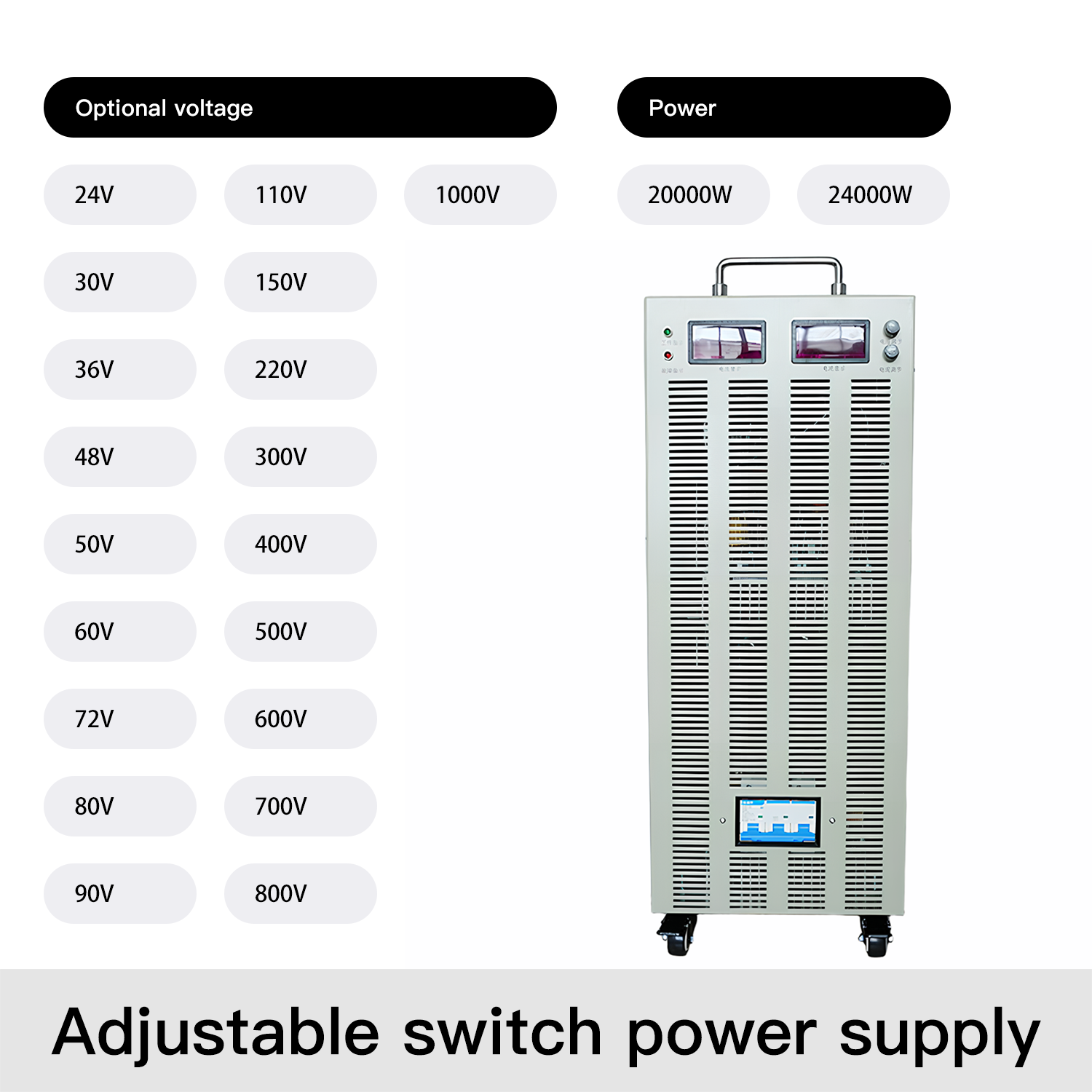

Output Voltage 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V Product Features High stability, high reliability
Output Current Selected power / selected voltage Warranty Period 1 Year
Power Conversion Type AC-DC Product Weight Approximately 45KG

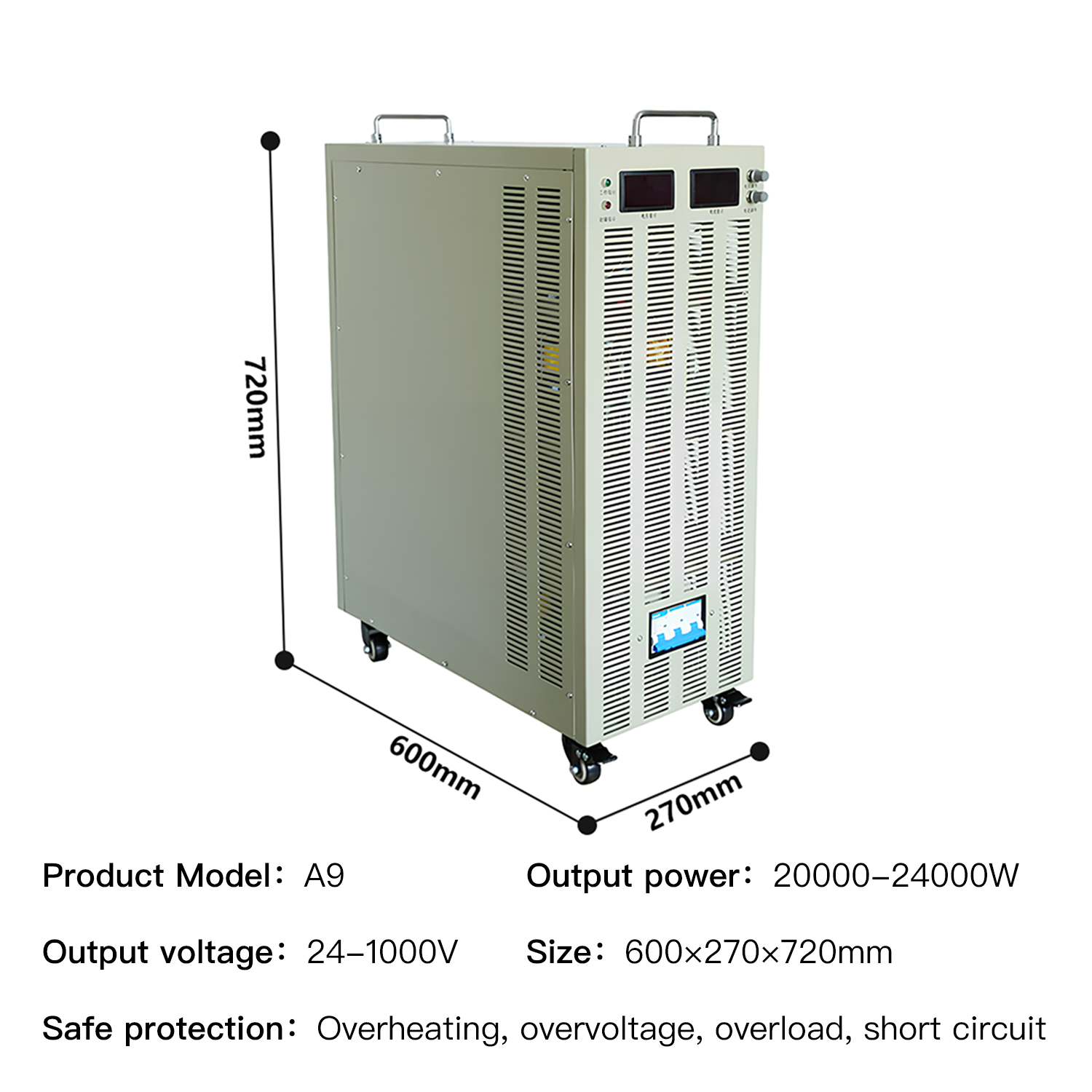

Efficiency >88-89% Carton Dimensions 770x400x840mm
Output Voltage Accuracy ±1% - -
Application and Configuration Gallery
Application view 1
Application view 2
Application view 3
Application view 4
Application view 5
Product Instructions
1
Before powering on, inspect the stored and transported switching power supply. Check for any damage during transit, such as loose screws, abnormal appearance, dislodged power cords or terminals, and dampness. Address any issue promptly.
2
The local power switch controls the auxiliary power supply inside the machine. For safety, install an air switch at the power input terminal to control overall power input. Connect the ground wire and input power wire according to the labels on the rear panel, confirming correct connection and checking input voltage consistency with the manual.
3

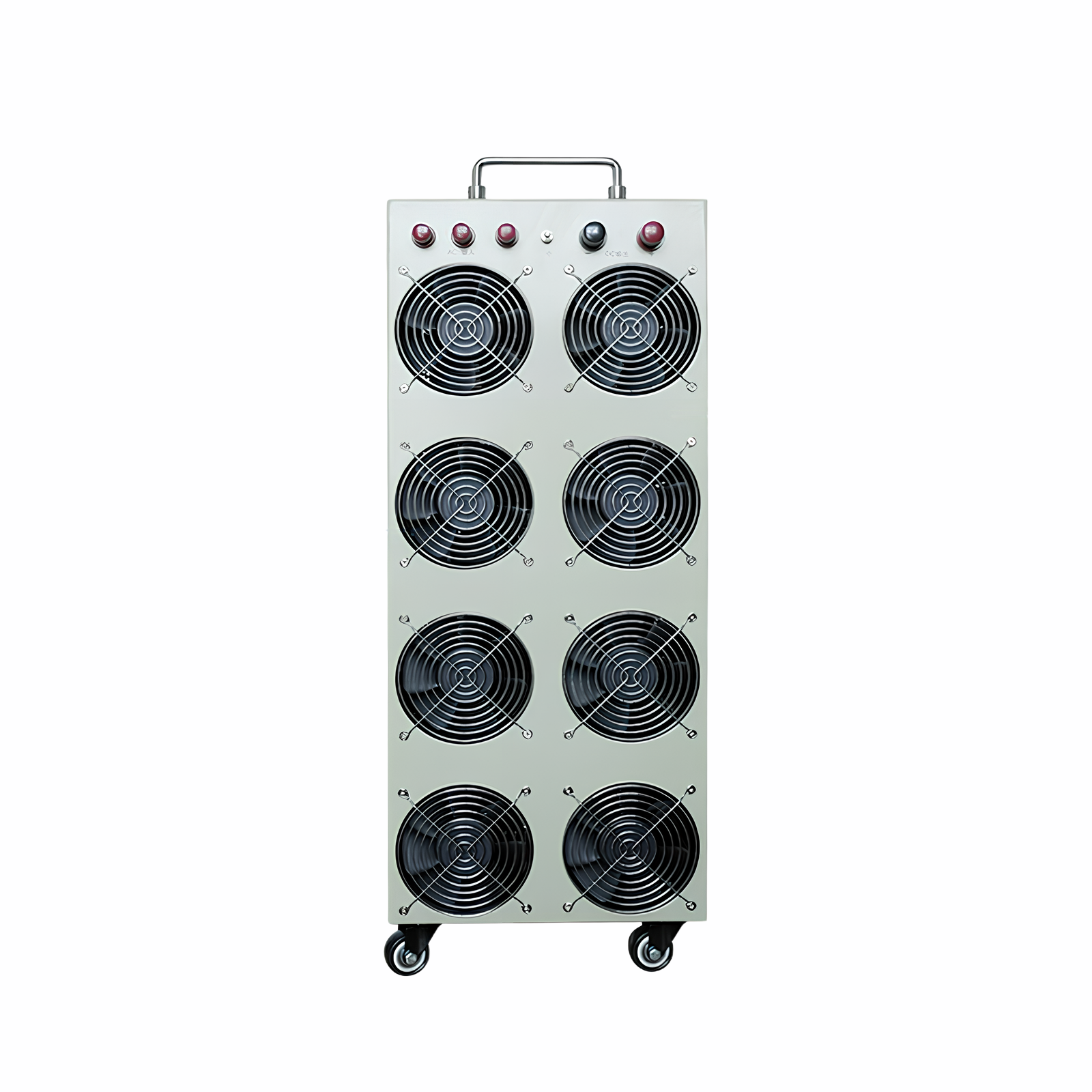

The cooling fan operates based on temperature control. The fan starts once the internal temperature exceeds the designated temperature control threshold. The fan speed will dynamically adjust with changes in output voltage and current. Ensure the air inlets and outlets remain unobstructed during operation.
4
When the internal temperature reaches the threshold for overheating shutdown, the machine will automatically cease operation for self-protection. Once the internal temperature cools down slightly, it will automatically restart and resume standard operation.
5
When running power equipment, ensure the surrounding air does not contain excessive dust, acid, corrosive gases, or substances. Prevent severe vibrations, physical impacts, exposure to rain, and direct sunlight.
6
Perform regular dust removal to extend the service life and reliability of the equipment. Dry compressed air is recommended for dust removal. Do not open the casing or touch internal components directly, as high internal voltage is present.
7
If the power equipment is left idle for extended periods, store it in a dry and well-ventilated space. If stored for over 6 months, power on the device and let it run for at least 30 minutes.
8
Warning: Only connect the powered load equipment after verifying that the power-on self-test functions normally and shows no errors.
9
Malfunction Handling: If abnormal operation occurs after startup, switch off the power supply immediately. Check the external and internal connections for correctness, ensure no connecting screws are loose, and verify all switch and knob positions. If issues persist, do not attempt to open the casing or self-repair due to high voltage risks. Contact technical support promptly for assistance.
Frequently Asked Questions
Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply includes comprehensive built-in protection features for overvoltage, overcurrent, overheating, and short circuits to ensure safe operation.
Can it be used at full power for a long time?
No, the power supply should be used with a margin of excess capacity. Continuous long-term operation is recommended below 80% of its rated capacity.
Is it convenient to adjust the voltage and current?
Yes, it is highly convenient. You can adjust both the output voltage and current easily using the dual analog control knobs.
Is the high-power power supply isolated?
Yes, the power supply features a fully isolated design for enhanced safety and stability.
What is the voltage regulation range?
The voltage regulation range starts from 1V up to the maximum rated value.
Is the power supply output sufficient?
Yes, our power supply delivers the full rated power capacity consistently.
