Specializing in high-power regulated power supplies for 15 years with a professional production factory of 10,000 square meters. Recognized as an honest enterprise unit and an excellent after-sales service provider.
DC Switching Power Supply
- Application: Widely used in various DC application sites such as power electronics, electroplating, water treatment, battery charging, new energy maintenance, etc.
- Protection: Overcurrent, Overvoltage, Overheat, Short Circuit Protection
- Features: High stability and reliability
- Warranty: 1 year
- Weight: Approximately 10KG
Product Specifications
| Product NameDC Switching Power Supply |
Operating Relative Humidity20%~88% |
| Power Rating5000W |
Application ScenariosPower electronics, electroplating, water treatment, battery charging, new energy maintenance, and other DC application fields |
| Input VoltageSingle-phase/Three-phase (220V±10% 50-60HZ, 110V±10% 50-60HZ, 380V±10% 50-60HZ) |
Protection FunctionsOvercurrent, overvoltage, overheating, short-circuit protection |
| Output Voltage12V 15V 24V 30V 36V 48V 50V 60V 72V 80V 90V 110V 150V 220V 300V 400V 500V 600V 700V 800V 1000V |
Product FeaturesHigh stability, high reliability |
| Output CurrentPower ÷ Output Voltage (calculated by selected power & output voltage) |
Warranty Period1 Year |
| Power Conversion TypeAC-DC |
Product WeightApproximately 10KG |
| Efficiency≥ 88-89% |
Carton Dimensions530x295x240mm |
| Output Voltage Accuracy±1% |
- |
Product Gallery
Product Instructions
-
1
Before powering on, check the stored and transported switch power supply. Check for transportation damage, such as loose screws, abnormal appearance, shaken off terminals or power cords, and dampness. Address any issues promptly.
-
2

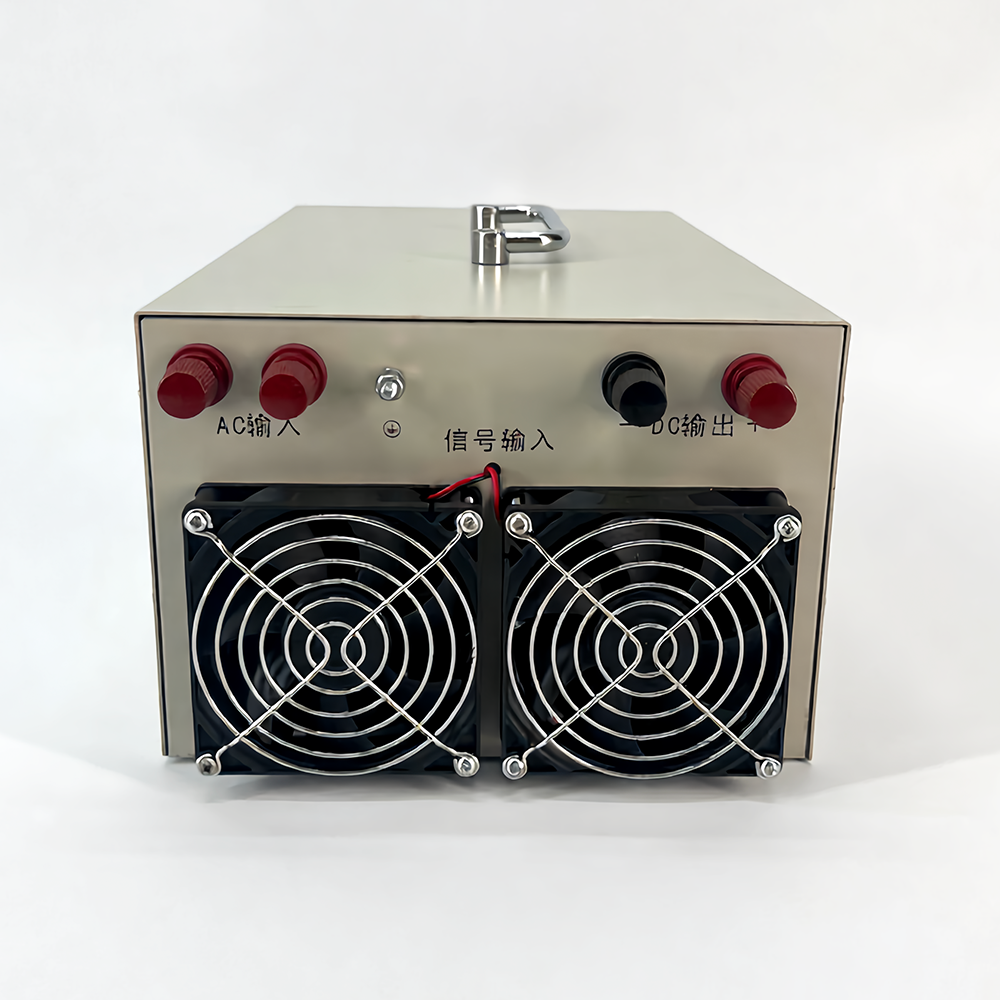

The local power switch controls the internal auxiliary power. For safety, add an air switch to the power input terminal to control the input. Connect the ground and input power wires properly according to the rear panel labels, confirming the input voltage matches the manual guidelines.
-
3
The cooling fan is temperature controlled and will start when the internal temperature exceeds the threshold. Fan speed varies with the output voltage and current. Ensure that the fan inlet and outlet are never blocked during operation.
-
4
If the internal temperature reaches the overheating shutdown threshold, the machine will automatically stop working. Once the temperature drops to a safe level, it will automatically resume operations.
-
5
Ensure that dust, acid, corrosive gases, or substances in the operating air do not exceed normal levels. Avoid placing the equipment in environments with severe vibration, impacts, rain, or direct sunlight.
-
6
Regular dust removal using dry compressed air is highly recommended to improve lifetime and reliability. Due to internal high voltage, do not open the casing or damage internal components.
-
7
Store the equipment in a dry, ventilated room when idle for long periods. If stored for over 6 months, power on and operate the supply for at least half an hour before use.
-
8
Warning: Only connect your powered load equipment to the power supply once the power-on test has been completed successfully and without errors.
-
9
Malfunctions: If abnormal operation is detected, cut off the stabilized power supply immediately. Check all internal/external connections for looseness or incorrect switch/knob placements. Do not disassemble or attempt self-repair without professional knowledge due to high-voltage hazards. Contact the factory promptly to resolve issues.
Frequently Asked Questions
Is there overvoltage, overcurrent, overheating, or short circuit protection?
Yes, the power supply is built with comprehensive protections including overcurrent, overvoltage, overheating, and short-circuit protection.
Is reverse protection available?
Reverse protection can be added and customized as an optional feature.
Can the unit be operated at full power continuously?
No, we recommend running the power supply with some excess capacity. For long-term continuous use, keep the load below 80% of the maximum capacity.
Is it convenient to adjust the voltage and current?

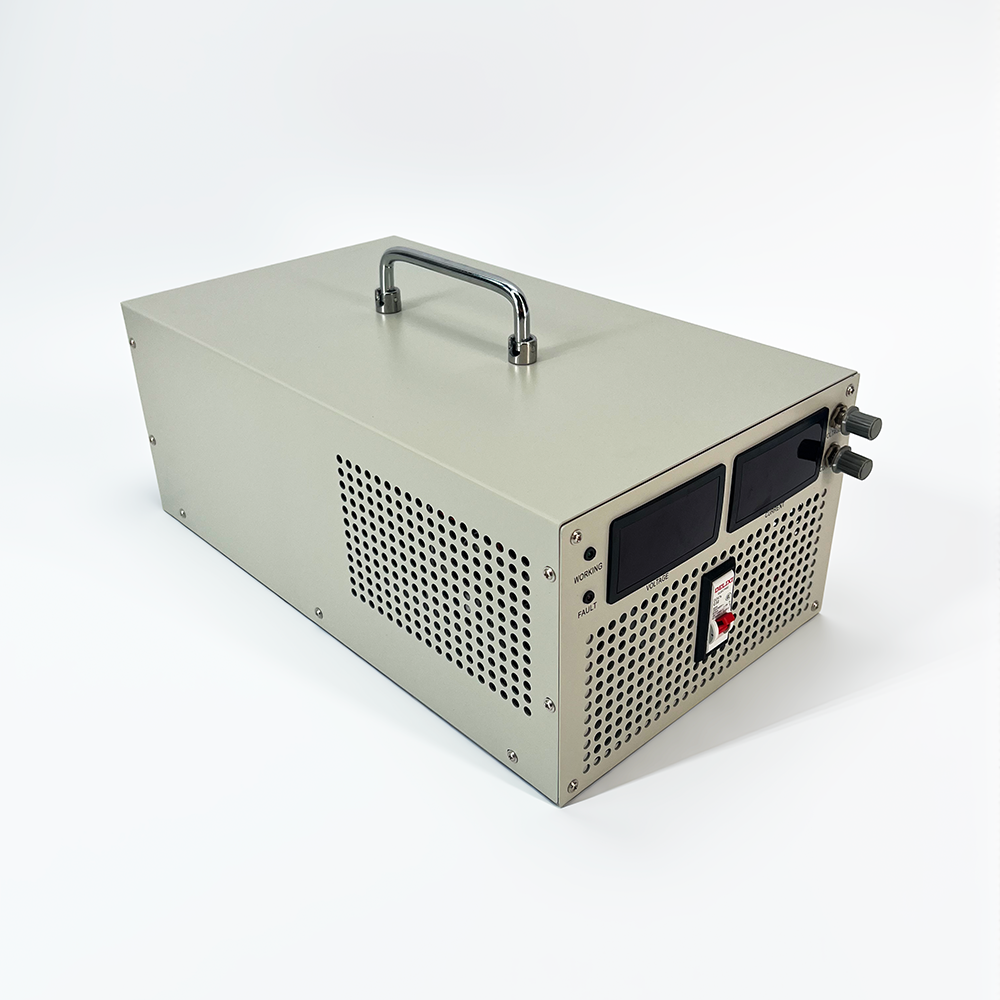

Yes, adjustments are highly convenient and can be controlled easily using the dual knobs on the unit.
Is this high-power power supply isolated?
Yes, our systems feature a fully isolated power supply design.
What is the voltage regulation starting range?
The voltage regulation range starts from 1V.
